Description

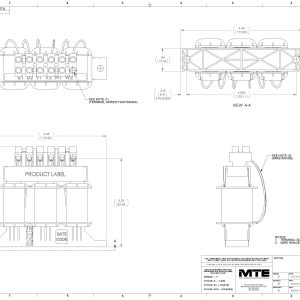

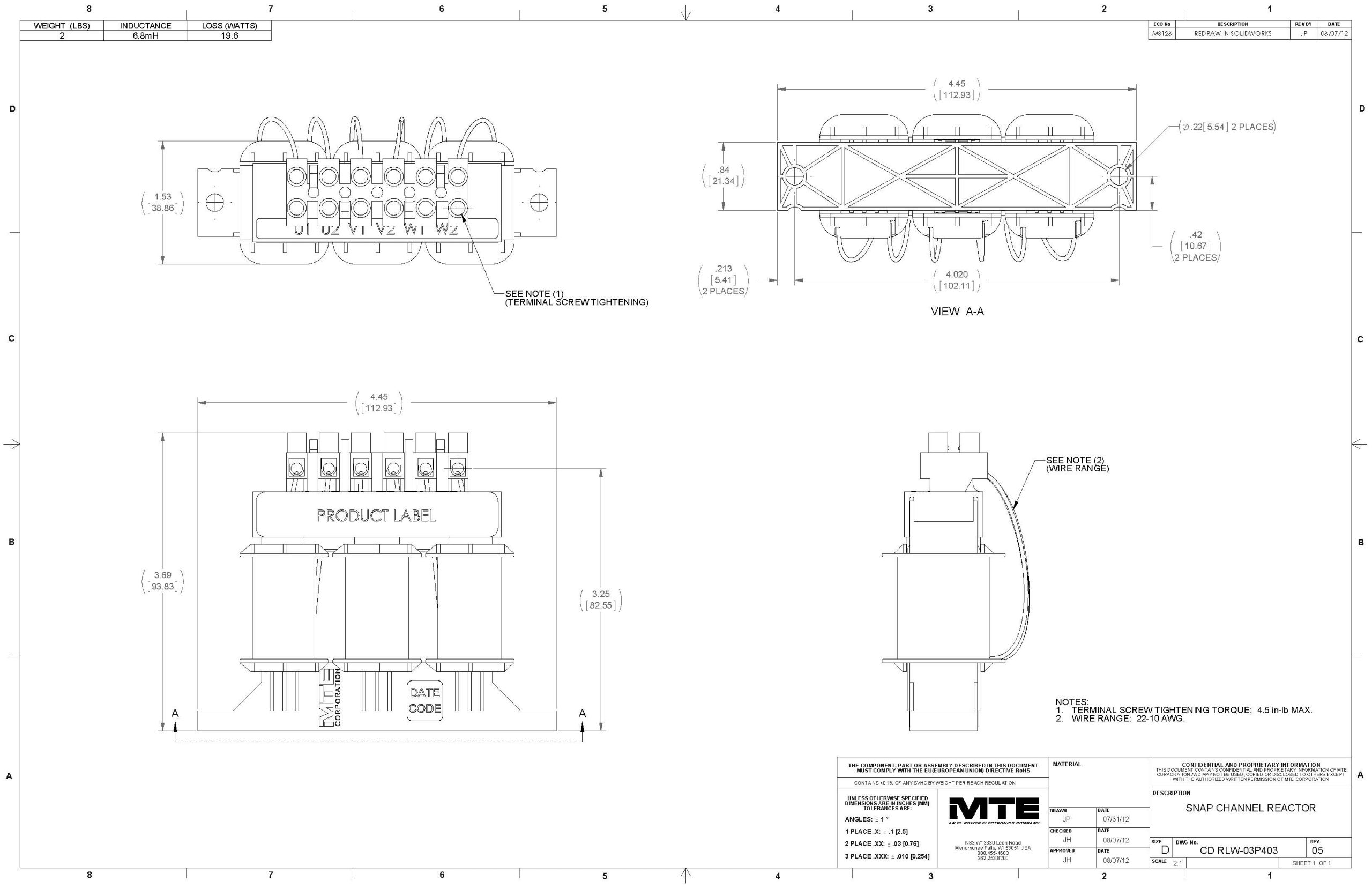

The MTE RLW-03P403 reactor is an open, 3-phase line reactor designed to enhance the performance and reliability of industrial equipment by mitigating power line disturbances. With a current rating of 3.4 amps and an inductance of 6.8mH, this reactor is specifically engineered for applications requiring precise filtering and transient protection in a compact and lightweight design.
Features
- RoHS and REACH Compliant: Ensures adherence to international environmental and safety standards.
- Voltage Compatibility: Compatible with standard voltages ranging from 208 to 690 VAC.
- Wide Amperage Range: Suitable for applications spanning from 0.5 to 750 Amps.
- Transient Protection: Ideal for single-phase drive applications, safeguarding against power line disturbances.
- Epoxy Impregnation: Minimizes audible noise, enhances structural integrity, and improves resistance to moisture.
- Compact Design: Smaller footprint and lighter weight compared to traditional reactors, facilitating easier installation.
- Multiple Mounting Options: Provides flexibility to meet diverse machine building requirements.
- Global Application: Designed for global use, ensuring compatibility with international shipping and standards.
- Certifications: CE and UL approved, confirming compliance with stringent safety and performance standards.
Specifications
- Manufacturer: MTE
- Product Series: RLW
- Family Series: MTE Line Reactors, RLW Series
- Phase: 3
- Enclosed Unit: No
- Current Rating: 3.4 A
- Inductance: 0.0068 H (6.8mH)
- Watt Loss: 19.6 W
- HP @ 240 VAC: 0.33 hp
- Impedance @ 240 VAC: 3 %
- HP @ 480 VAC: 2 hp
- Impedance @ 480 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- Approvals: CE, UL
- Net Weight: 1.6 lbs
- Gross Weight: 2.75 lbs
