Description

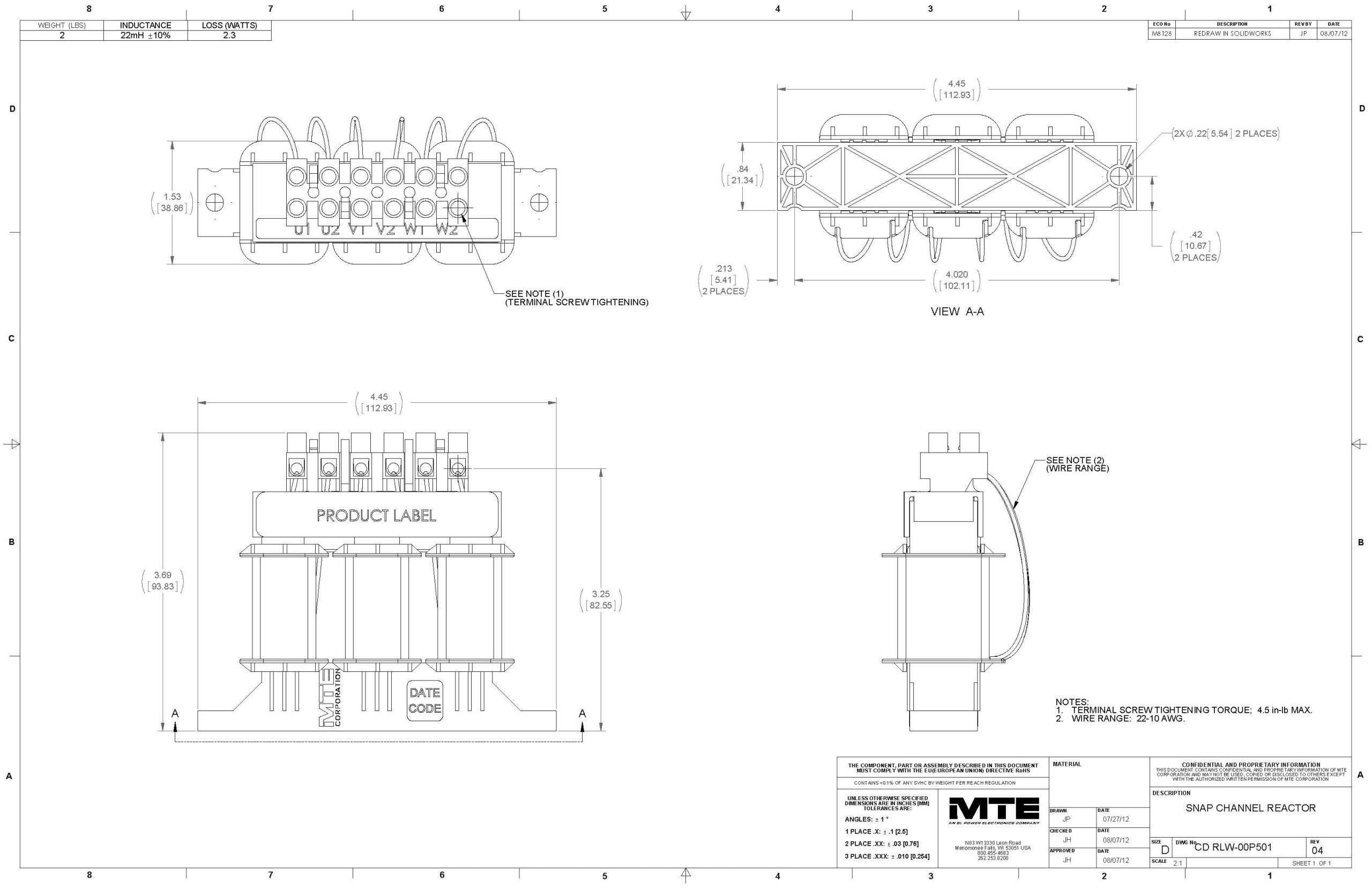

The MTE RLW-00P501 reactor is part of MTE’s RLW series, designed to enhance the performance and longevity of your equipment by mitigating power line disturbances. With an inductance of 22mH and a current rating of 0.5A, this reactor is optimized for peak performance in a compact and lightweight design. It is suitable for various applications, including single-phase drives for transient protection.
Features
- Compliance: RoHS and REACH compliant, ensuring adherence to environmental and safety standards.
- Versatility: Available in standard voltages from 208 to 690 VAC, making it suitable for a wide range of applications.
- Amperage Range: Supports a broad amperage range from 0.5 to 750 Amps.
- Single-Phase Application: Can be applied to single-phase drives for transient protection.
- Noise Reduction: Epoxy impregnation minimizes audible noise and enhances structural integrity and moisture resistance.
- Compact Design: Optimally designed for peak performance with a smaller size and weight compared to other standard reactors.
- Global Compatibility: Designed from a global perspective, allowing machines to be shipped globally.
Specifications
- Manufacturer: MTE
- Model: RLW-00P501
- Series: RLW
- Phase: 3
- Enclosed Unit: No
- Current Rating: 0.5 A
- Inductance: 22mH (0.022 H)
- Watt Loss: 3.8 W
- Terminals: Terminal Block
- Mounting: Surface
- Approvals: CE, UL
- Net Weight: 1.5 lbs
- Gross Weight: 2.15 lbs
