Description

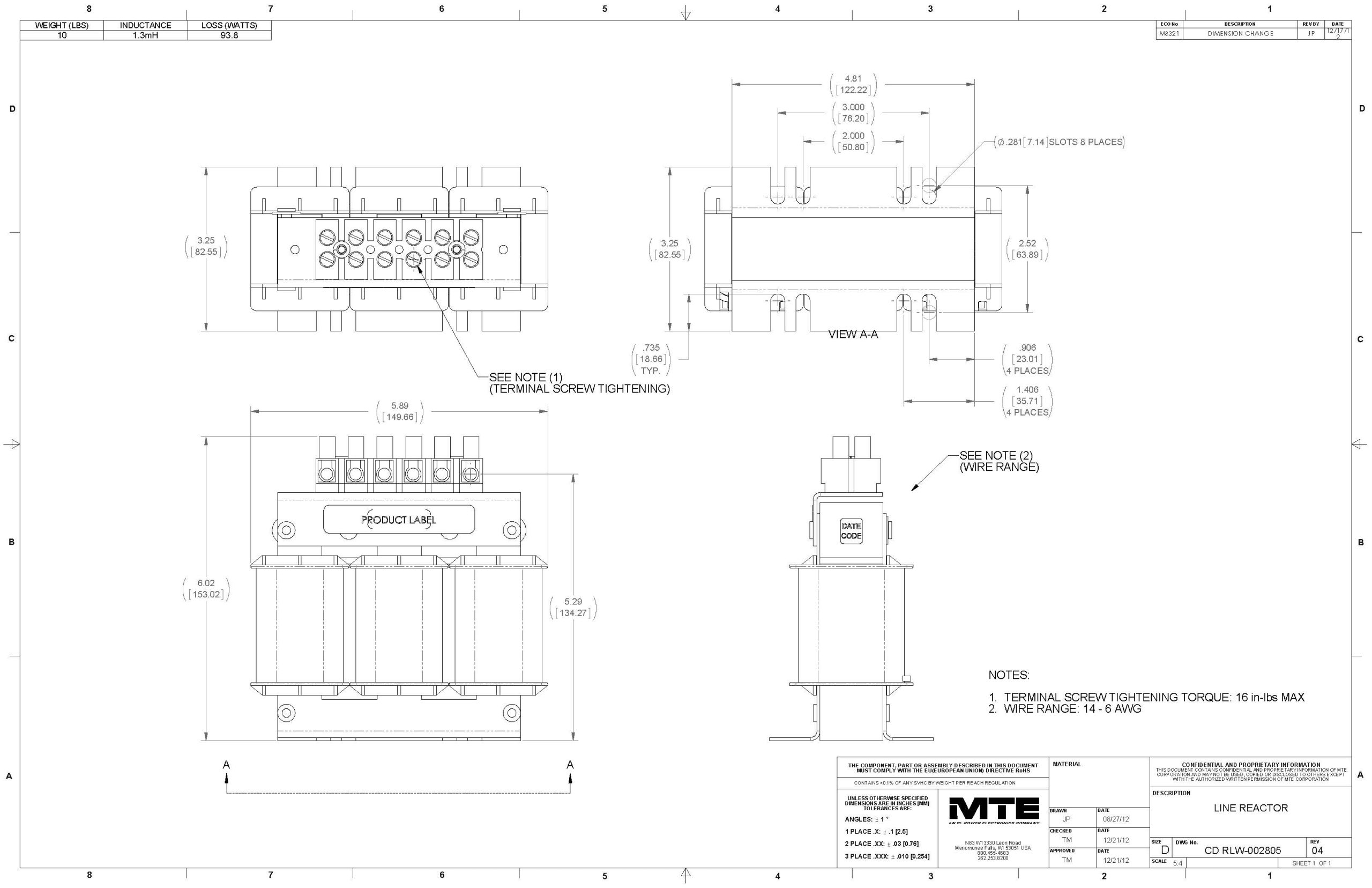

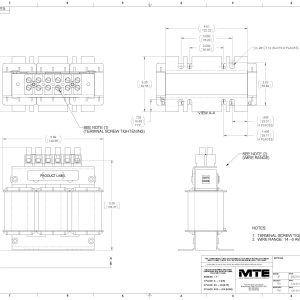

The MTE RLW-002805 reactor is designed to enhance the reliability and performance of electrical systems by mitigating power line disturbances. This 3-phase, 1.3mH inductance reactor with a 28A current rating is ideal for various applications, including power conversion units and rectifiers. Its open design ensures optimal cooling and performance in demanding environments.
Features
- RoHS and REACH Compliant: Ensures compliance with environmental and safety regulations.
- Voltage Compatibility: Suitable for a wide range of voltages from 208 to 690 VAC.
- Amperage Range: Available in ratings from 0.5 to 750 Amps.
- Transient Protection: Effective for single-phase drives to protect against transient voltage spikes.
- Epoxy Impregnation: Minimizes audible noise and improves structural and moisture resistance.
- Compact and Lightweight: Smaller and lighter than traditional reactors for easy installation.
- Multiple Mounting Options: Versatile mounting configurations to meet various installation needs.
- Global Design: Suitable for international deployment due to compliance with global standards.
- Motor Protection: Designed for lower horsepower motors, providing versatile protection.
Specifications
- Manufacturer: MTE
- Product Series: RLW
- Family Series: MTE Line Reactors, RLW Series
- Phase: 3
- Enclosed Unit: No
- Current Rating: 28 A
- Inductance: 1.300 mH
- Watt Loss: 6.6 W
- Horsepower Ratings:
- @ 480 VAC: 20 hp
- @ 600 VAC: 20 hp
- Impedance:
- @ 480 VAC: 5%
- @ 600 VAC: 3%
- Terminals: Terminal Block
- Mounting: Surface
- Approvals: CE, UL
- Net Weight: 10.4 lbs
- Gross Weight: 11.45 lbs
