Description

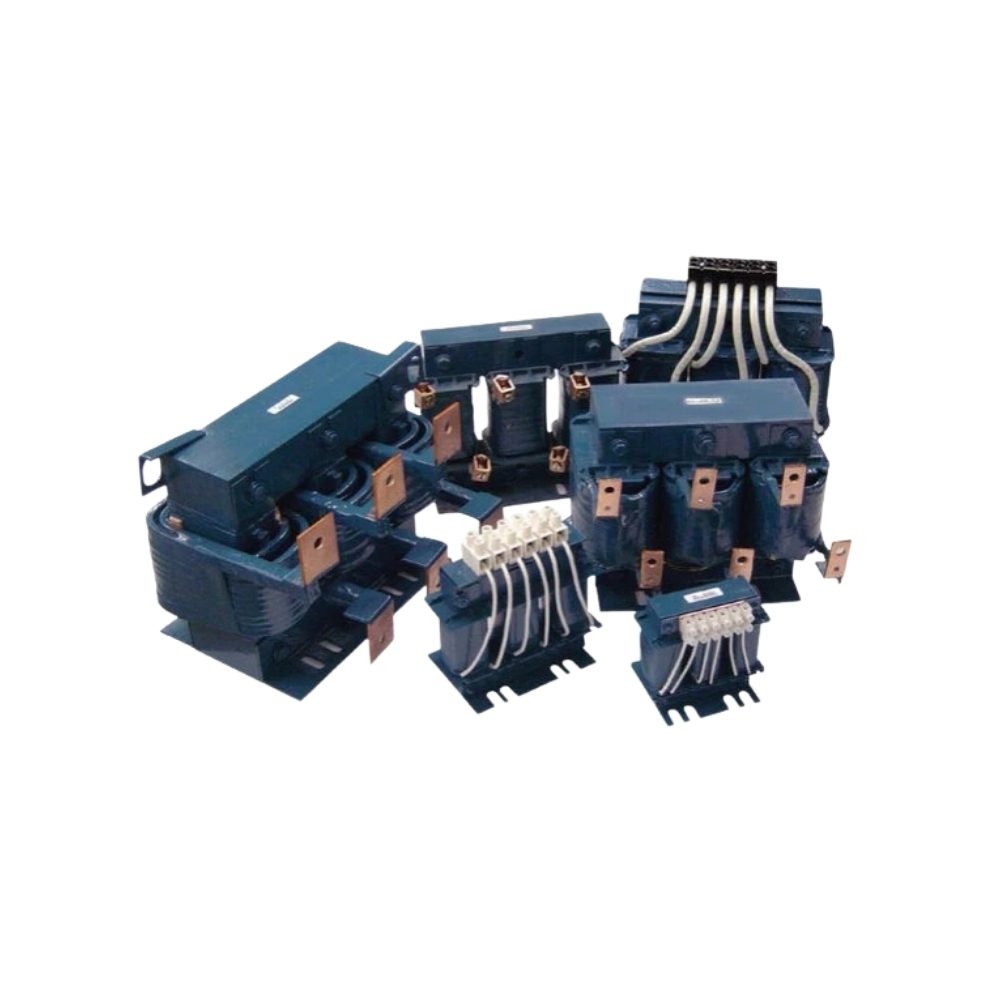

The MTE Line/Load Reactor RL-02532 is engineered to enhance the performance and longevity of motors and sensitive electronic equipment in three-phase systems. With an inductance of 1.2mH and a current rating of 25A, this reactor is ideal for industrial applications requiring effective power conditioning.
Features
- Motor Protection: Guards motors against long lead effects, significantly extending their operational life.
- Voltage Stabilization: Decreases output voltage dv/dt, ensuring smoother motor performance.
- Harmonic Mitigation: Effectively reduces harmonics generated by inverters and drives.
- Surge Suppression: Protects equipment from sudden current surges.
- Temperature Management: Lowers motor temperature, enhancing reliability.
- Noise Reduction: Minimizes motor audible noise, fostering a quieter environment.
- Power Factor Improvement: Enhances true power factor, optimizing energy consumption.
Specifications
- Manufacturer: MTE
- Model: RL-02532
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 25 A
- Inductance: 0.0012 H (1.2mH)
- Watt Loss: 52 W
- HP @ 480 VAC: 15 hp
- Impedance @ 480 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
