Description

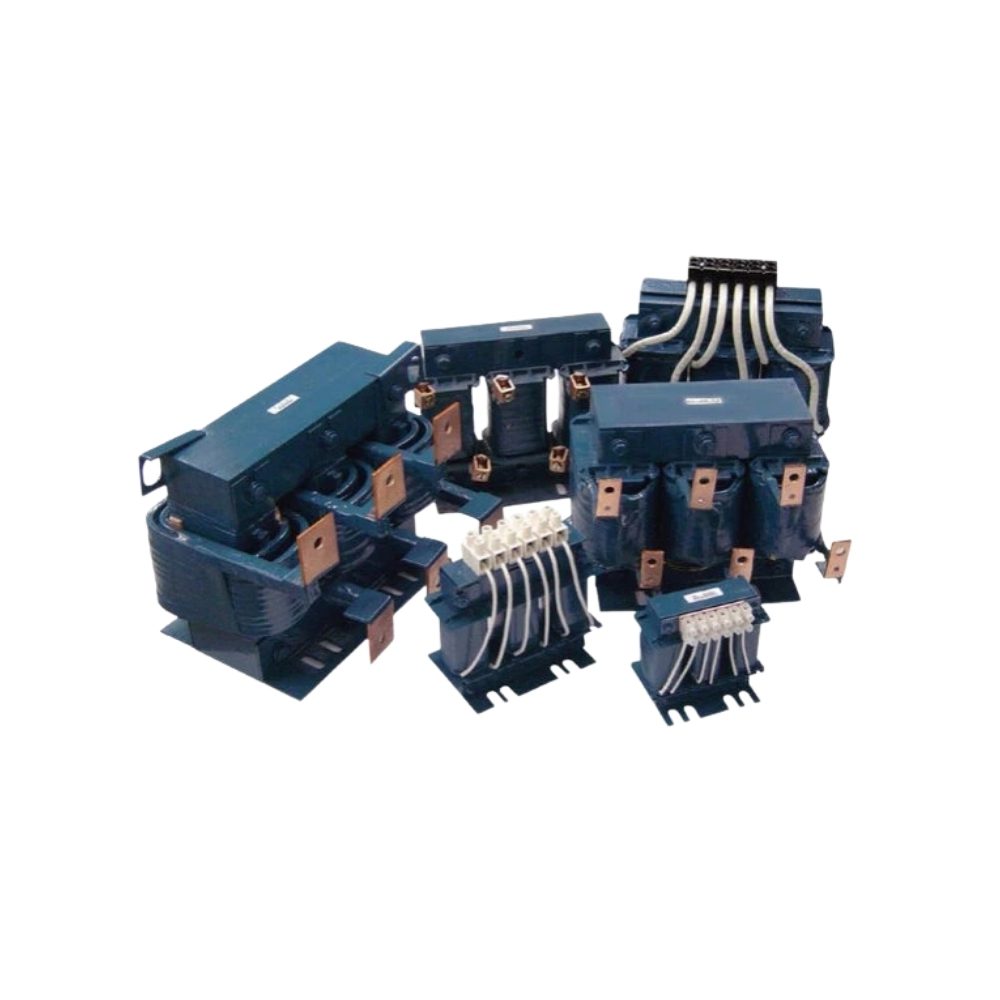

The MTE Line/Load Reactor RL-01833 is engineered to enhance the performance and durability of motors and sensitive equipment in three-phase systems. With an inductance of 2.5mH and a current rating of 18A, this reactor efficiently mitigates power line disturbances, reduces harmonic distortion, and ensures stable operation of inverters and variable frequency drives (VFDs).
Features
- Motor Protection: Shields motors from long lead effects, thereby extending their operational life.
- Voltage Stabilization: Minimizes output voltage dv/dt, ensuring smooth motor operation.
- Harmonic Reduction: Significantly reduces harmonics generated by inverters and drives.
- Surge Current Suppression: Safeguards equipment against sudden current surges.
- Temperature Control: Lowers motor temperature, enhancing operational efficiency and reliability.
- Noise Reduction: Reduces motor audible noise, promoting a quieter working environment.
- Improved Power Factor: Enhances true power factor, optimizing energy consumption.
Specifications
- Manufacturer: MTE
- Model: RL-01833
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 18 A
- Inductance: 0.0025 H (2.5mH)
- Watt Loss: 43 W
- HP @ 480 VAC: 10 hp
- Impedance @ 480 VAC: 5 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
