Description

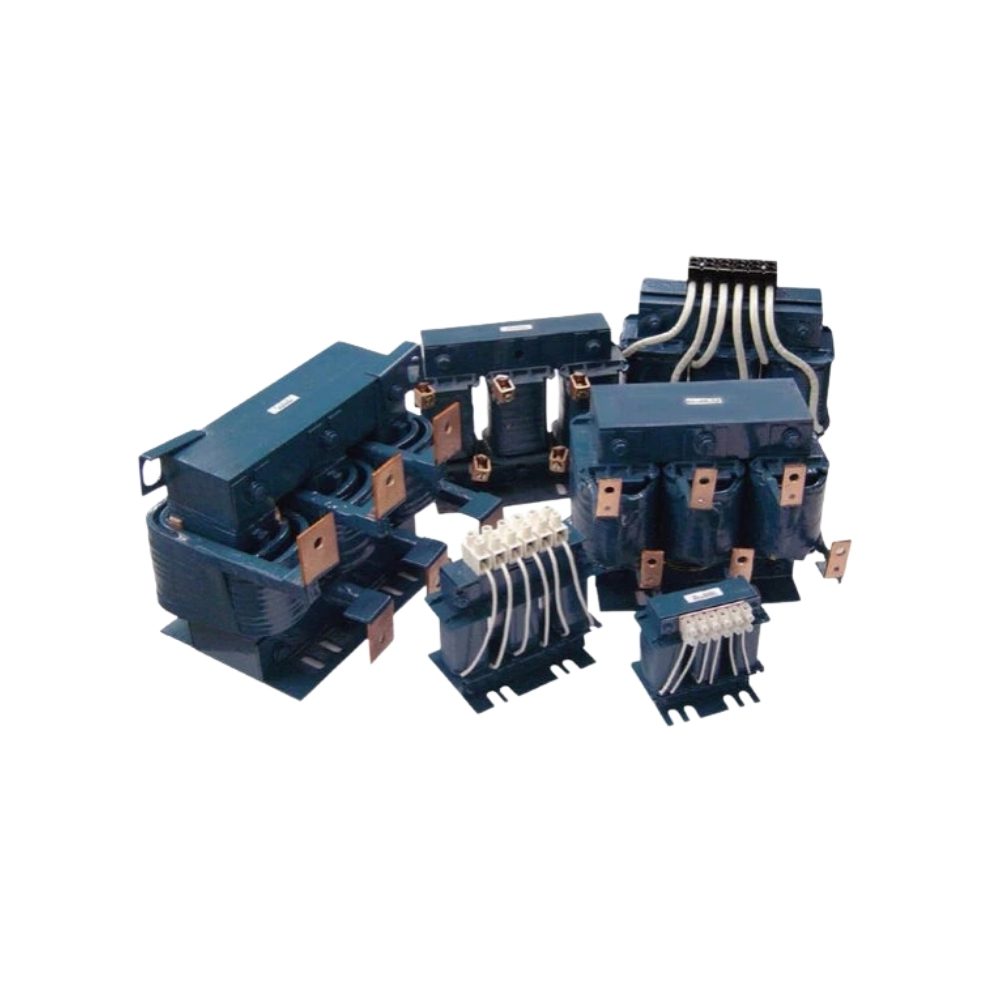

The MTE Line/Load Reactor RL-01232 is a robust three-phase reactor designed to protect motors and sensitive equipment from power line disturbances. With an inductance of 2.5mH and a current rating of 12A, this reactor effectively reduces output voltage dv/dt, harmonic distortion, surge currents, motor temperature, and audible noise while improving true power factor.
Features
- Motor Protection: Guards against long lead effects, extending motor lifespan.
- Voltage Stabilization: Reduces output voltage dv/dt, ensuring stable operation.
- Harmonic Reduction: Minimizes harmonic distortion generated by inverters and drives.
- Surge Current Suppression: Protects equipment from sudden current spikes.
- Temperature Control: Lowers motor temperature, enhancing efficiency and reliability.
- Noise Reduction: Decreases motor audible noise during operation.
- Improved Power Factor: Enhances true power factor, optimizing energy usage.
Specifications
- Manufacturer: MTE
- Model: RL-01232
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 12 A
- Inductance: 0.0025 H (2.5mH)
- Watt Loss: 31 W
- HP @ 240 VAC: 3 hp
- Impedance @ 240 VAC: 5 %
- HP @ 480 VAC: 7.5 hp
- Impedance @ 480 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
- Net Weight: 78 lbs
