Description

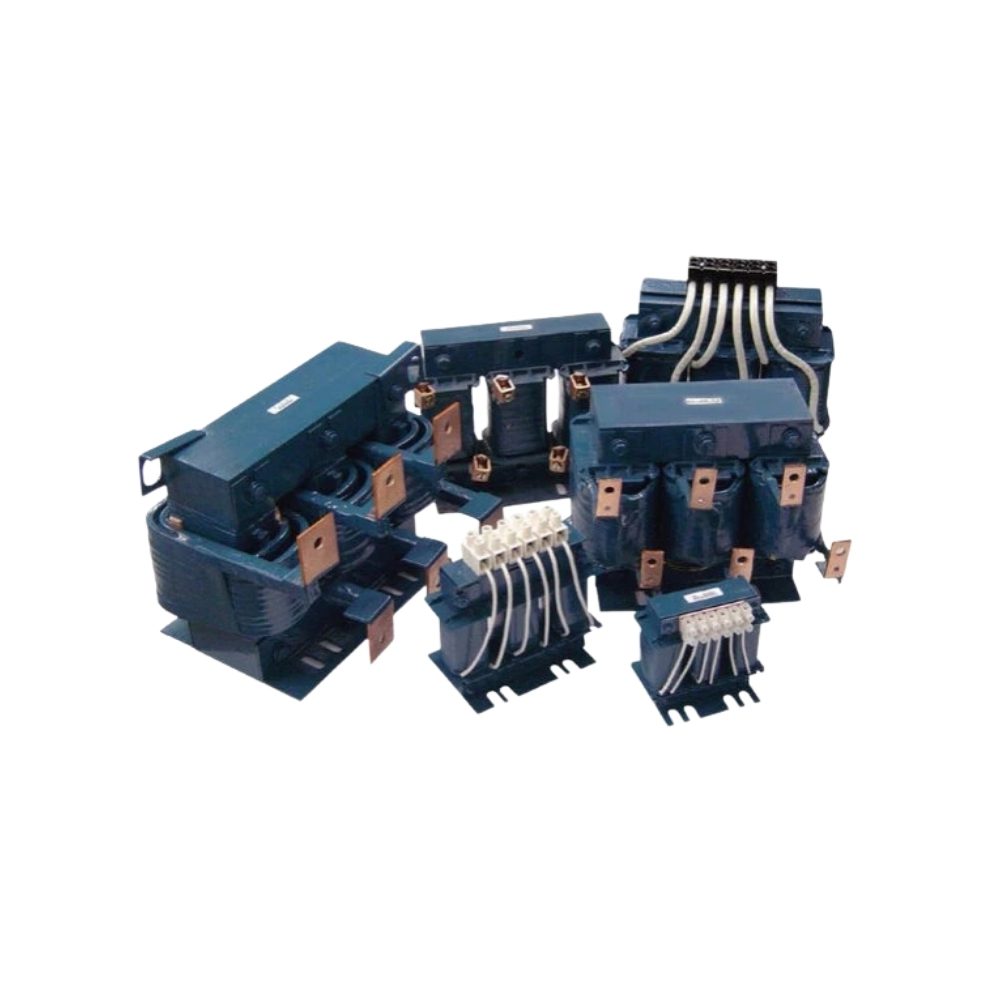

The MTE Line/Load Reactor RL-00831 is designed to safeguard motors and sensitive equipment from various power line disturbances, ensuring uninterrupted operation and extended equipment lifespan. With an inductance of 1.5mH and a current rating of 8A, this reactor effectively reduces output voltage dv/dt, harmonic distortion, surge currents, motor temperature, and audible noise while improving true power factor.
Features
- Motor Protection: Shields against long lead effects, extending motor lifespan.
- Voltage Stabilization: Reduces output voltage dv/dt, ensuring stable operation.
- Harmonic Reduction: Minimizes harmonic distortion generated by inverters and drives.
- Surge Current Suppression: Protects equipment from sudden current spikes.
- Temperature Control: Lowers motor temperature, enhancing efficiency and reliability.
- Noise Reduction: Decreases motor audible noise during operation.
- Improved Power Factor: Enhances true power factor, optimizing energy usage.
Specifications
- Manufacturer: MTE
- Model: RL-00831
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 8 A
- Inductance: 0.0015 H (1.5mH)
- Watt Loss: 19.5 W
- HP @ 240 VAC: 1.5 hp
- Impedance @ 240 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
