Description

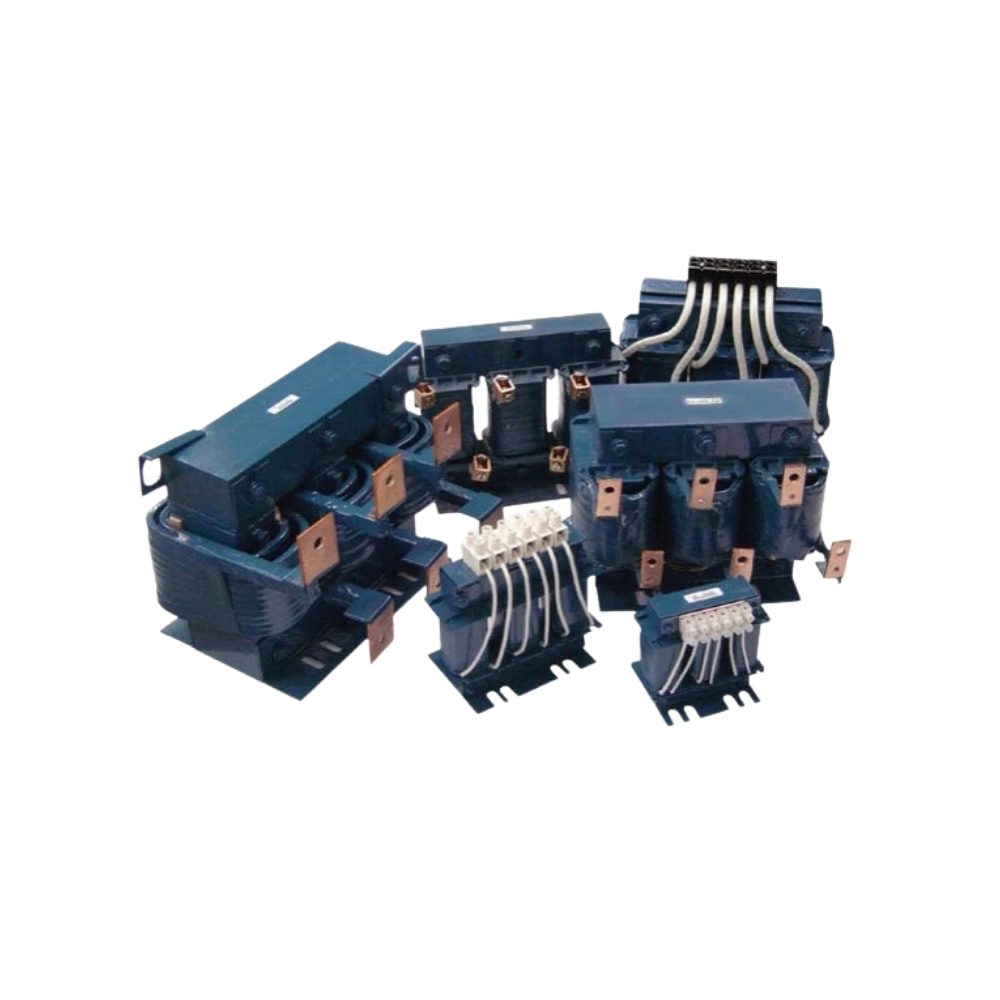

The MTE Line/Load Reactor RL-00234 is engineered to enhance the durability and performance of motors and sensitive equipment by mitigating electrical disturbances. Featuring an inductance of 6mH and a current rating of 2A, this reactor is suitable for three-phase applications, providing substantial protection and efficiency improvements.
Features
- Motor Protection: Minimizes long lead effects, ensuring prolonged motor life.
- Voltage Smoothing: Lowers output voltage dv/dt for stable and reliable operation.
- Harmonic Mitigation: Efficiently decreases harmonics produced by inverters and drives, facilitating compliance with IEEE 519 standards.
- Performance Enhancement: Boosts true power factor, enhancing system efficiency.
- Durable Construction: Built to rigorous standards for reliable and long-lasting performance.
- Outdoor Installation: Enclosed unit with NEMA 3R rating, suitable for outdoor applications.
Specifications
- Manufacturer: MTE
- Model: RL-00234
- Family Series: MTE Line Reactors, RL Series
- Phase: 3
- Enclosed Unit: Yes
- Current Rating: 2 A
- Inductance: 0.006 H (6 mH)
- Watt Loss: 10.7 W
- HP @ 240 VAC: 0.33 hp
- Impedance @ 240 VAC: 3 %
- Terminals: Terminal Block
- Mounting: Surface
- NEMA Rating: NEMA 3R
- Approvals: CE, CSA, UL, UR
- Net Weight: 71 lbs
