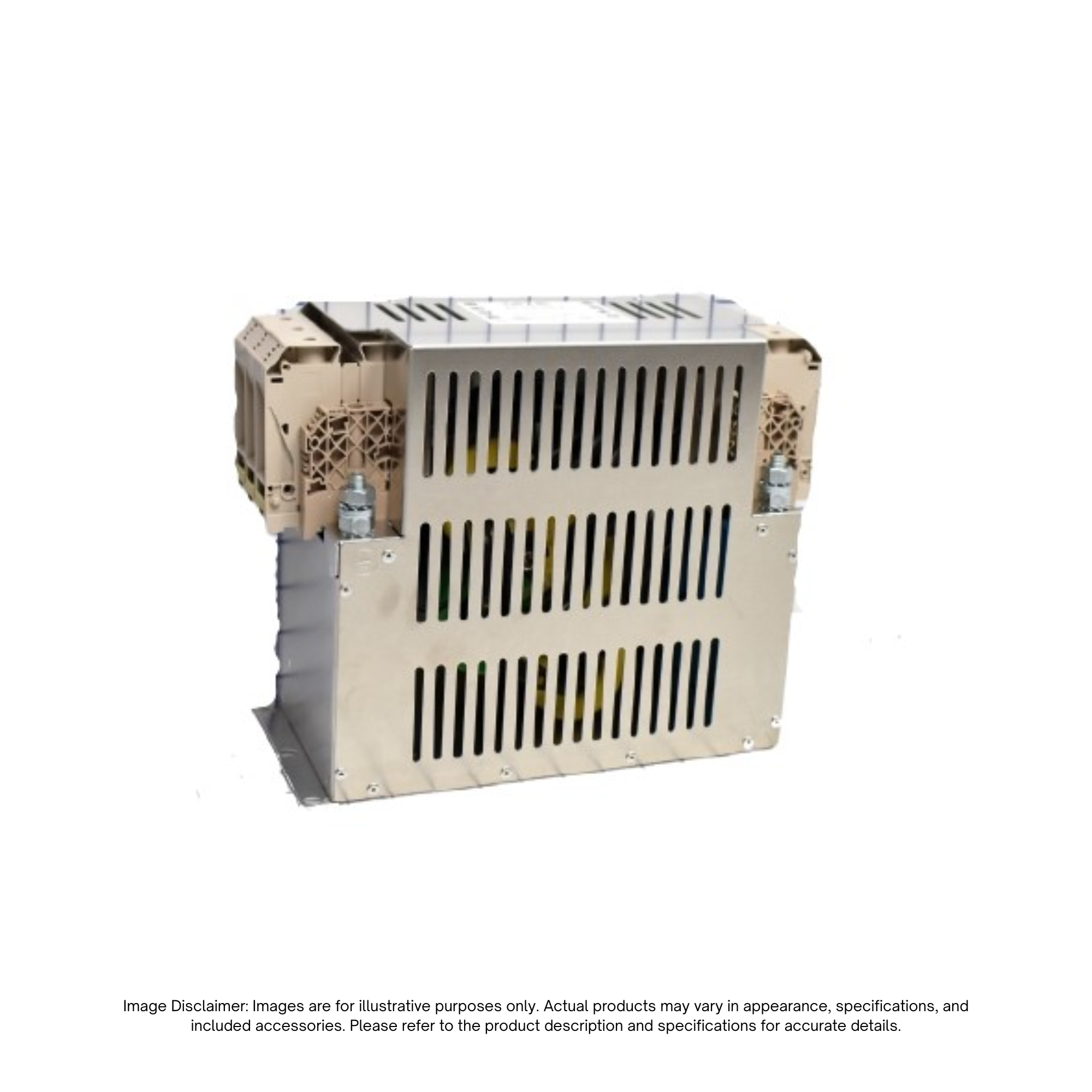

RF3-0150-6 – MTE | EMI-RFI Filter, 150AMP, 600VAC 3PH

Description

The MTE RF3-0150-6 is a high-voltage, high-performance three-phase RFI/EMI line filter engineered to suppress high-frequency conducted noise emissions from adjustable speed motor drives, inverters, and power conversion equipment. Operating up to 600 VAC with a continuous 150 Amps True RMS current rating, it attenuates both common mode and differential mode noise to help industrial installations meet EMC Directives (Class A) and FCC conducted emission limits.

Built with touch-safe terminations in compliance with international safety standards and CE low voltage directives, the RF3-0150-6 protects sensitive downstream electronic equipment—such as micro-processor controllers, computers, automated lighting, and telecommunications—from electrical noise and harmonic distortion. Its rugged chassis design is optimized for direct panel mounting in demanding industrial environments.

Key Features

• High-Voltage 3-Phase Filtering: Specifically engineered for 3-phase power systems operating up to 600 VAC (50/60 Hz).
• 150A True RMS Amperage: Heavy-duty current handling capacity for high-power adjustable speed drives and industrial motor controllers.
• Touch-Safe Terminations: Features touch-safe wiring terminals in compliance with international safety standards and CE low voltage directives.
• Dual Noise Attenuation: Suppresses both common mode (phase-to-ground) and differential mode (phase-to-phase) electrical noise.
• EMC Compliance Support: Helps motor drives and inverter installations meet EMC Class A limits and FCC conducted emission standards.
• Panel-Mount Construction: Robust chassis mounts directly to bare metal grounded backplates for optimal noise suppression performance.

Specifications

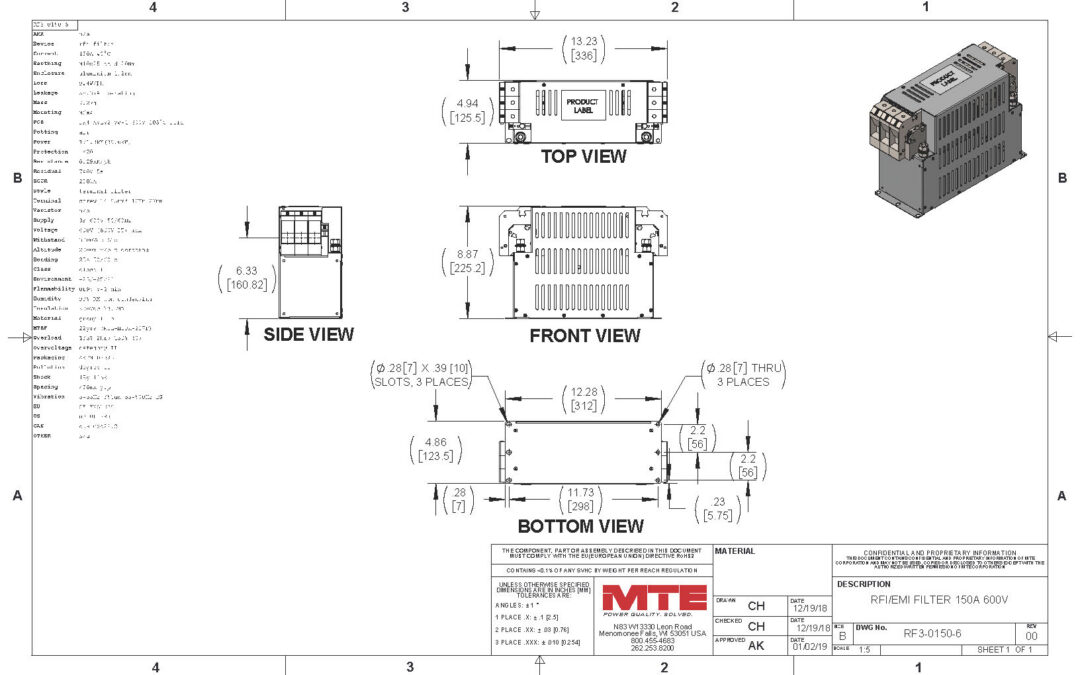

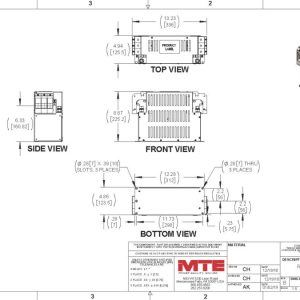

RF3-0150-6-202025_1080x675
