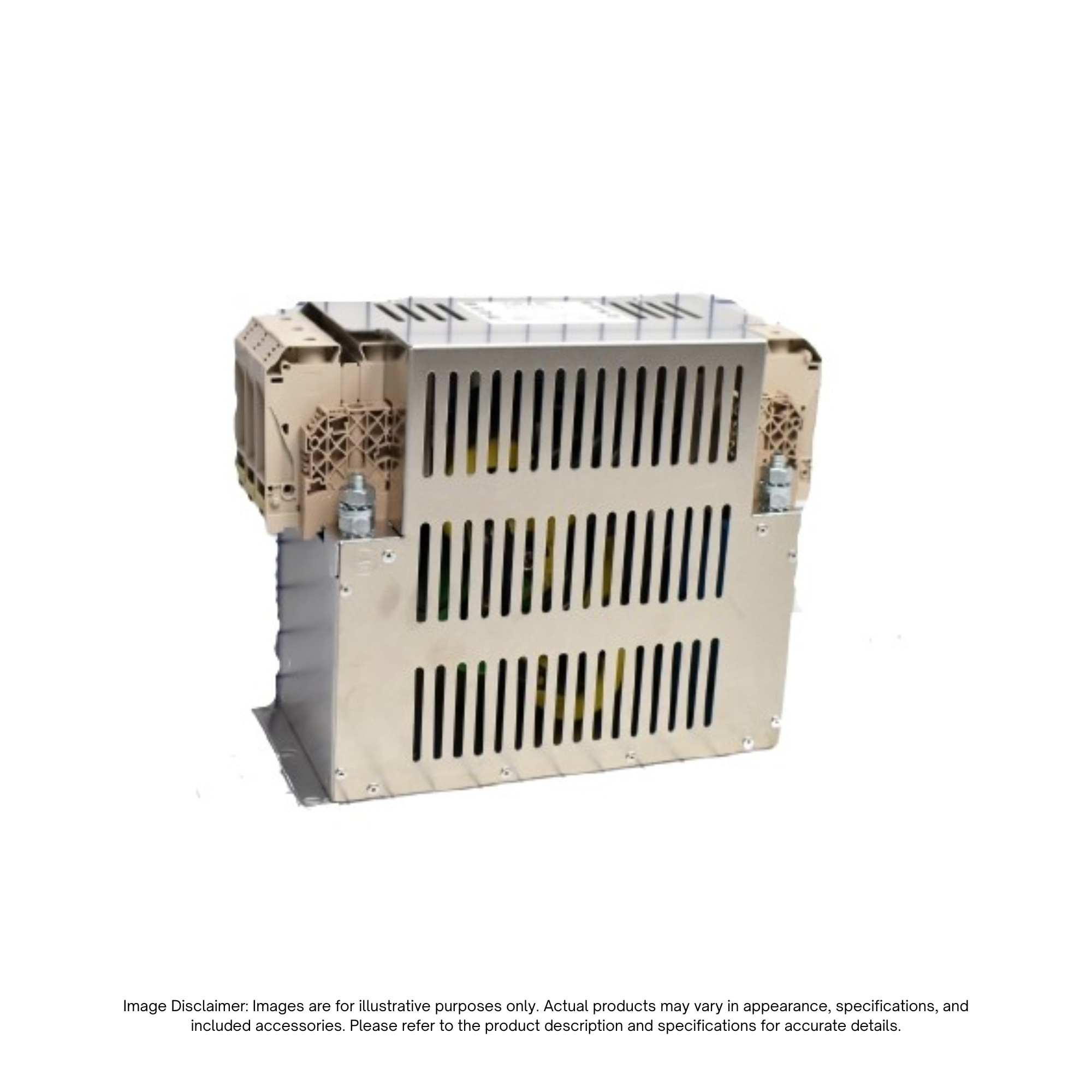

RF3-0150-4 – MTE | EMI-RFI Filter, 150AMP, 480VAC 3PH

Description

The MTE RF3-0150-4 is an economical, high-performance three-phase RFI/EMI line filter engineered to reduce high-frequency conducted noise emissions from adjustable speed motor drives, inverters, and power conversion equipment. Operating up to 480 VAC with a continuous 150 Amps True RMS current rating, it attenuates both common mode and differential mode noise to help systems achieve compliance with EMC Directives (Class A) and FCC limits.

Designed with international safety standard touch-safe terminations, the RF3-0150-4 protects sensitive electronic downstream loads—such as micro-processor controllers, computers, automated lighting, and telecommunications equipment—from electrical noise and voltage distortion. Its robust panel-mount design is built for smooth integration into standard industrial control panels and drive enclosures.

Key Features

• High-Capacity 3-Phase Filtering: Specifically engineered to suppress conducted noise on 3-phase power systems operating up to 480 VAC (50/60 Hz).
• 150A True RMS Amperage: Robust current handling rated for demanding adjustable speed drives and industrial motor controllers.
• Touch-Safe Construction: Features touch-safe terminal construction in compliance with CE Low Voltage Directives and international safety standards.
• Dual Noise Suppression: Effectively reduces both common mode (phase-to-ground) and differential mode (phase-to-phase) high-frequency noise.
• EMC Compliance Support: Assists drive and inverter systems in meeting stringent EMC Class A Directives and FCC conducted emission limits.
• Panel-Mount Design: Rugged chassis-mount enclosure mounts directly to grounded panel backplates for optimal noise suppression performance.

Specifications

RF3-0150-4
