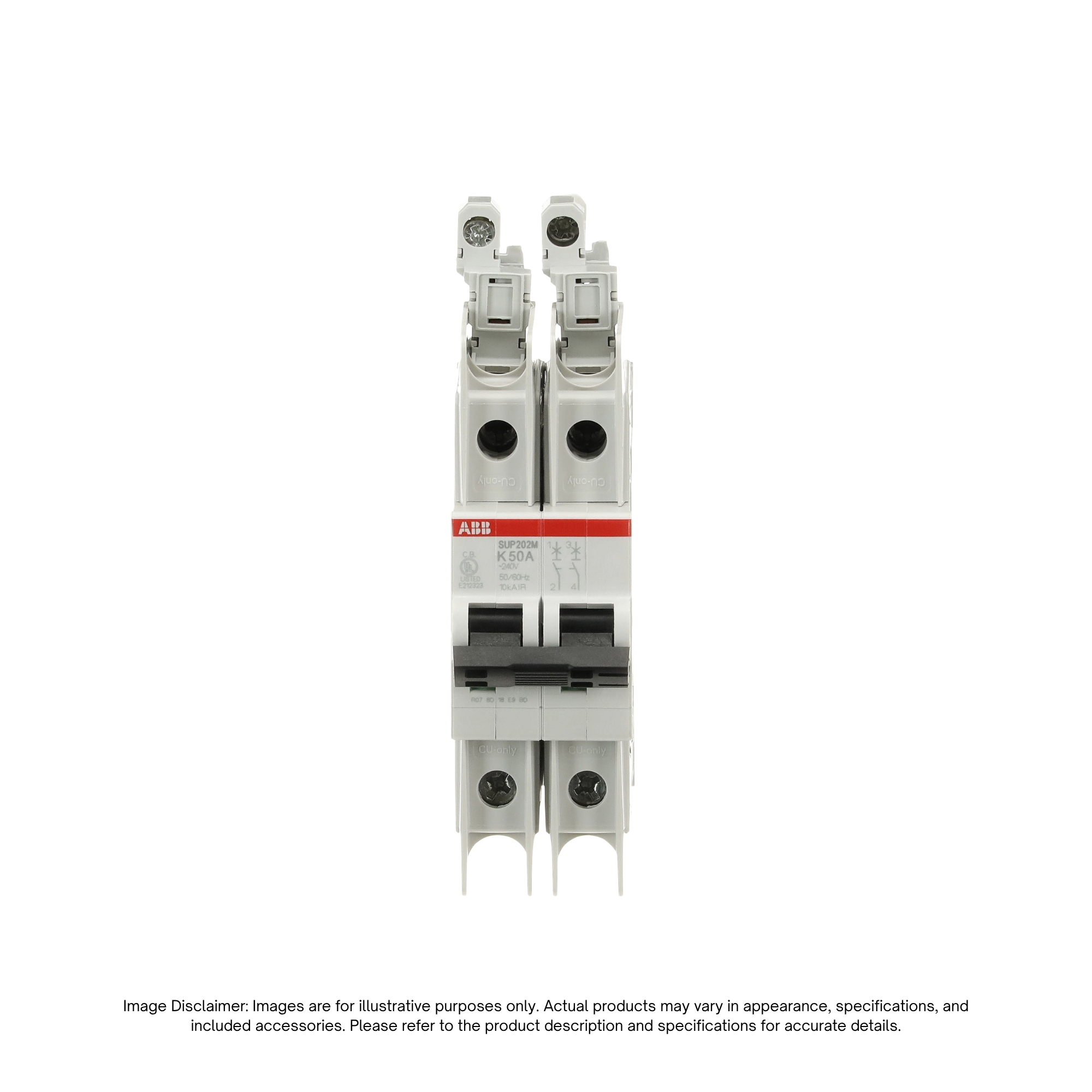

PLU702M-K50 – ABB | PL 50A 2P 240V-25KA AC K

$310.58 CAD

The ABB PLU702M-K50 (2CDT322001R0577) is a 50 A, two-pole miniature circuit breaker with a K trip curve for compatible ProLine panelboards. Provides overload and short-circuit protection with a plug-in design for branch circuit applications.

13 in stock

SKU: PLU702M-K50 Categories: ,

Description

The ABB PLU702M-K50 Miniature Circuit Breaker (2CDT322001R0577) is a two-pole, 50 A branch circuit breaker designed for plug-in installation in compatible ABB ProLine panelboards. It provides protection against overloads and short-circuit currents, helping protect electrical circuits and connected equipment in residential, commercial, and light industrial power distribution applications.

Part of ABB’s ProLine PLU700M series, this circuit breaker features a K trip curve designed for applications with higher inrush currents, including suitable inductive loads. Its plug-in mounting design supports installation in compatible ProLine panelboards, providing a practical solution for branch circuit protection in electrical distribution systems.

The PLU702M-K50 combines a compact circuit breaker design with thermal-magnetic protection to help interrupt excessive current under applicable operating conditions. Its two-pole configuration is suitable for compatible circuits within the panelboard’s voltage and rating requirements.

Key Features

  • 50 A Current Rating: Designed for branch circuit protection in electrical distribution systems.
  • Two-Pole Configuration: Provides overcurrent protection for compatible two-pole branch circuits.
  • K Trip Curve: Designed for applications involving higher starting or inrush currents, subject to the manufacturer’s trip characteristics.
  • Overload Protection: Helps protect electrical conductors and connected equipment against excessive current over time.
  • Short-Circuit Protection: Designed to interrupt short-circuit currents within its specified interrupting rating.
  • Plug-In Installation: Designed for installation in compatible ABB ProLine panelboards.
  • ProLine Compatibility: Integrates with the appropriate ABB ProLine panelboard system for branch circuit protection.
  • Compact Design: Supports organized branch circuit protection within compatible electrical distribution panels.

Specifications

Technical Specification Detail
Product Model PLU702M-K50
Product ID (SKU) 2CDT322001R0577
Brand / Manufacturer ABB
Product Series ProLine PLU700M
Product Type Miniature Circuit Breaker / Branch Circuit Breaker
Rated Current 50 A
Number of Poles 2
Trip Curve K Curve
Rated Voltage 120/208/240 V AC panelboard systems; confirm the applicable voltage for the installation
Interrupting Rating 14 kA at 240 V AC for the applicable PLU700M breaker configuration
Protection Functions Overload and Short-Circuit Protection
Mounting Type Plug-In
Compatible Panelboard ABB ProLine Panelboard, compatible configuration required
Breaker Technology ABB SUP200M-Based PLU700M Technology
Enclosure Protection IP20 for the breaker family, subject to installation conditions
EAN 4053546156300
Weight 0.551 lbs
Dimensions 3.540 × 1.420 × 2.760 in
