Description

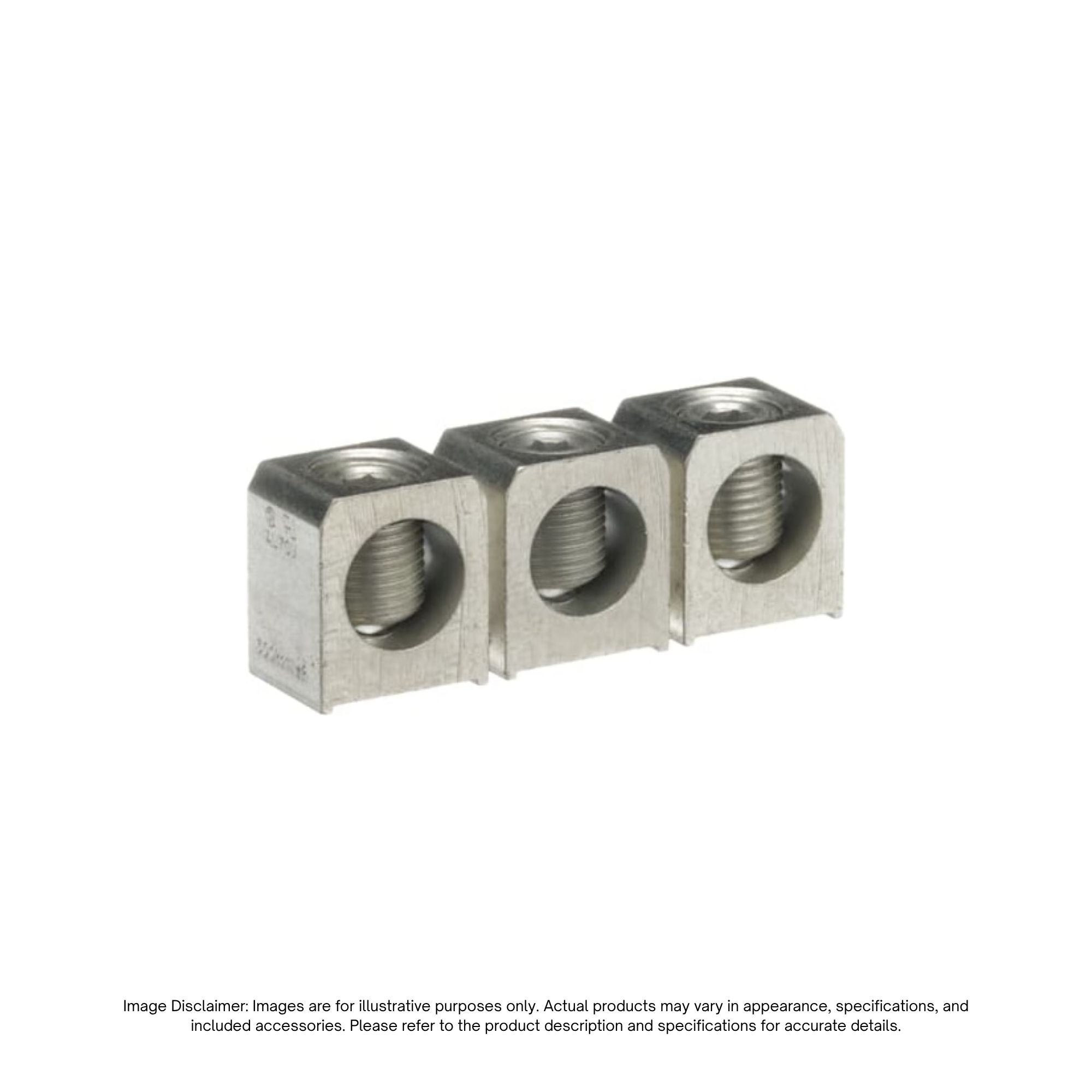

The ABB OZXA-200 Terminal Lug Kit (1SCA022747R8940) is a six-piece lug kit designed for compatible ABB OT and OS Series switch-disconnectors. It provides bolted terminal connections for aluminum and copper conductors ranging from 4 AWG to 300 MCM, supporting electrical installations that require larger conductor sizes for power distribution and equipment connections.
Designed for compatible 200 A switch-disconnectors, the OZXA-200 supports installation in industrial electrical distribution systems, switchgear, and control panels. The kit uses bolt-and-nut mounting and is suitable for specified ABB OT200 and OS200 series equipment, including compatible OT200U models. Its broad conductor range makes it a practical accessory for panel builders, electrical contractors, and maintenance professionals.
Key Features
- Six-Piece Lug Kit: Includes six terminal lugs for compatible three-pole switch-disconnector installations.
- Wide Conductor Range: Accommodates conductors from 4 AWG to 300 MCM.
- Copper and Aluminum Compatibility: Designed for use with compatible copper and aluminum conductors.
- 200 A Switch Compatibility: Designed for specified ABB OT200 and OS200 series switch-disconnectors.
- Bolted Mounting: Uses bolt-and-nut mounting for installation on compatible switch terminals.
- Industrial Applications: Suitable for power distribution equipment, industrial control panels, and electrical switchgear assemblies.
- 75°C Temperature Rating: Supports conductor applications within the manufacturer’s specified terminal temperature rating and installation requirements.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OZXA-200 |
| Product ID (SKU) | 1SCA022747R8940 |
| Brand / Manufacturer | ABB |
| Product Type | Terminal Lug Kit |
| Accessory Series | OZX |
| Number of Lugs | 6 |
| Compatible Conductor Material | Copper and Aluminum |
| Wire Size Range | 4 AWG to 300 MCM (kcmil) |
| Compatible Switches | Specified ABB OT200 and OS200 Series Switch-Disconnectors, including compatible OT200U models |
| Switch Rating Class | 200 A applications, subject to switch model compatibility |
| Lug Mounting Method | Bolt and Nut |
| Wire Class | B and C |
| Terminal Temperature Rating | 75°C |
| Wire Tightening Tool | Allen (Hex) Wrench |
| Product Weight | Approximately 0.04 kg per kit |
| EAN | 6417019242644 |
