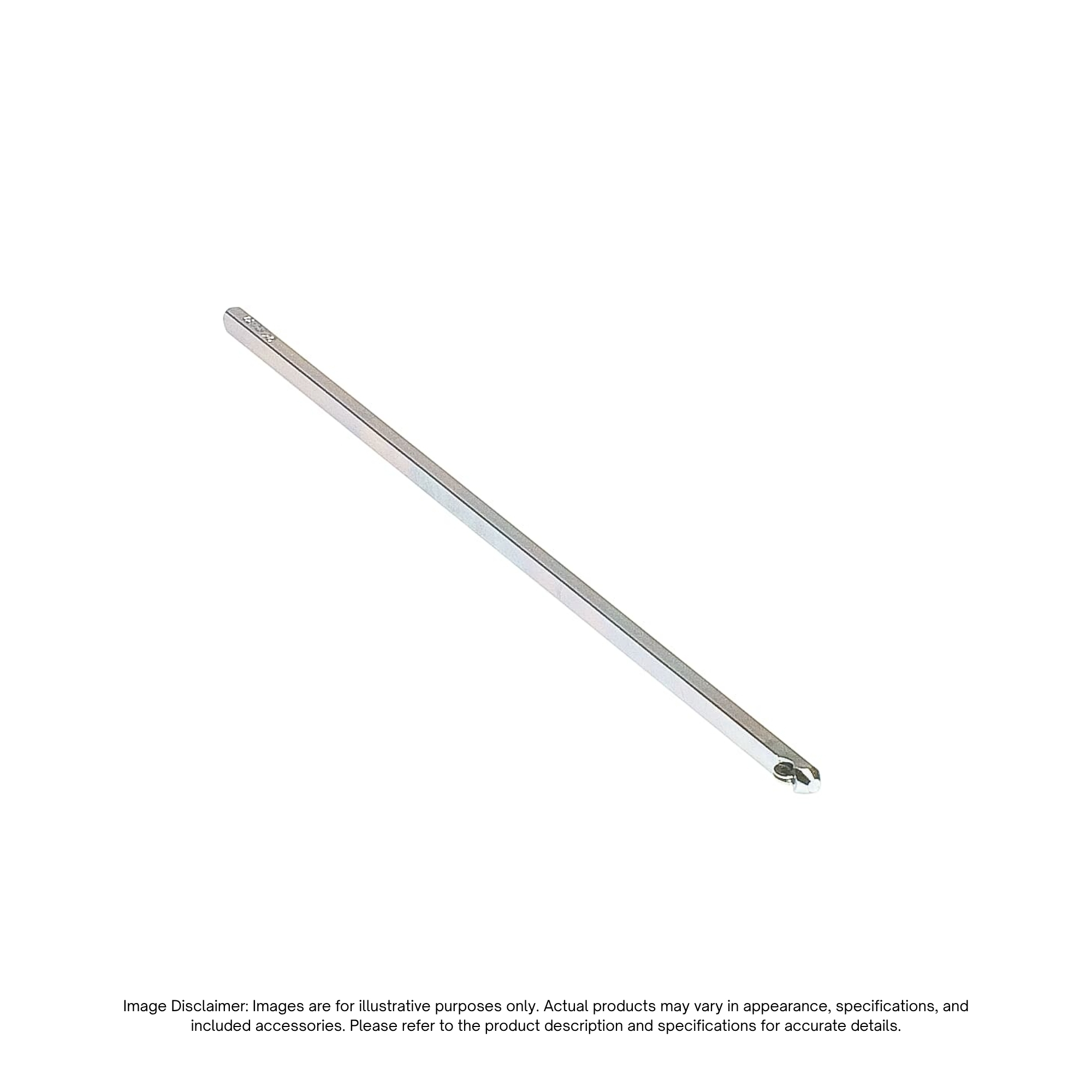

OXS6X250 – ABB | SHAFT FOR SEL. HANDLES L=250MM DIAM=5MM

Description

The ABB OXS6X250 Operating Shaft (1SCA101660R1001) is a 250 mm shaft designed for use with compatible ABB selector-type operating handles and switch-disconnectors. Featuring a 6 mm × 6 mm square shaft profile, it connects the external selector handle to the switch mechanism, allowing manual operation of electrical switches installed inside enclosures and control panels.

Designed for specified ABB OT and OTDC Series switch-disconnectors, the OXS6X250 accommodates installations requiring an extended distance between the operating handle and switching mechanism. Its 250 mm length makes it suitable for industrial control panels, electrical distribution assemblies, and switchgear installations requiring external manual operation.

Key Features

• 250 mm Shaft Length: Provides extended reach for compatible selector handle installations.
• 6 mm × 6 mm Square Profile: Designed for compatible ABB selector-type operating handles and switch mechanisms.
• Selector Handle Compatibility: Intended for use with compatible ABB selector handles rather than pistol-type handles.
• ABB OT Series Compatibility: Suitable for specified OT16 to OT125 and compatible OTDC Series switch-disconnectors.
• External Switch Operation: Connects the selector handle to the switch mechanism for manual switching.
• Industrial Applications: Suitable for electrical enclosures, control panels, and power distribution assemblies.
