Description

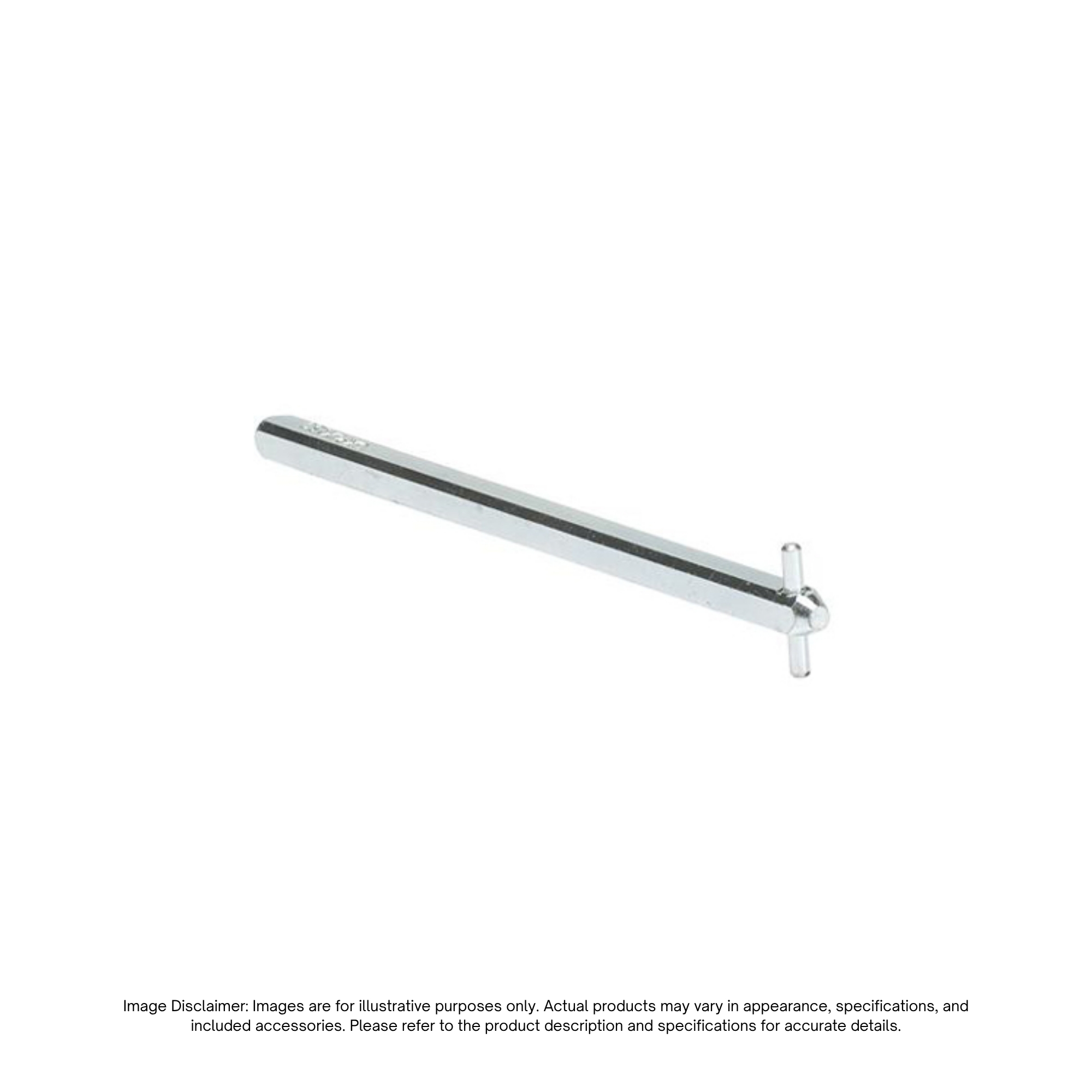

The ABB OXP6X170 Operating Shaft (1SCA108224R1001) is a 170 mm shaft designed for use with compatible ABB pistol-type operating handles and switch-disconnectors. With a 6 mm shaft diameter, it connects the external operating handle to the switch mechanism, enabling manual operation of electrical switches installed inside enclosures and control panels.
Designed for compatible ABB OT and OS Series switch-disconnectors, the OXP6X170 supports external switch operation while accommodating the required mounting depth for the installation. Its compact design makes it suitable for industrial control panels, electrical distribution equipment, and machinery applications where an external operating handle is required.
Key Features
- 170 mm Shaft Length: Provides the reach required for compatible external operating handle installations.
- 6 mm Shaft Diameter: Designed for compatible ABB pistol-type operating handles and switch mechanisms.
- External Switch Operation: Connects the operating handle to the switch-disconnector mechanism for manual operation.
- Broad ABB Compatibility: Suitable for specified OT and OS Series switch-disconnectors, including compatible OTDC models.
- Compact Design: Supports installation in industrial electrical enclosures and control panels.
- Accessory Integration: Designed to work with compatible ABB pistol-type operating handles.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OXP6X170 |
| Product ID (SKU) | 1SCA108224R1001 |
| Brand / Manufacturer | ABB |
| Product Type | Operating Shaft |
| Accessory Category | Shafts for Pistol-Type Operating Handles |
| Shaft Length | 170 mm |
| Shaft Diameter | 6 mm |
| Compatible Handle Type | ABB Pistol-Type Operating Handles |
| Compatible Equipment | Specified ABB OT, OS, and OTDC Series Switch-Disconnectors |
| Quantity per Package | 1 Piece |
| Net Weight | 0.05 kg |
| EAN | 6417019424231 |
