OXP12X535 – ABB | SHAFT

Description

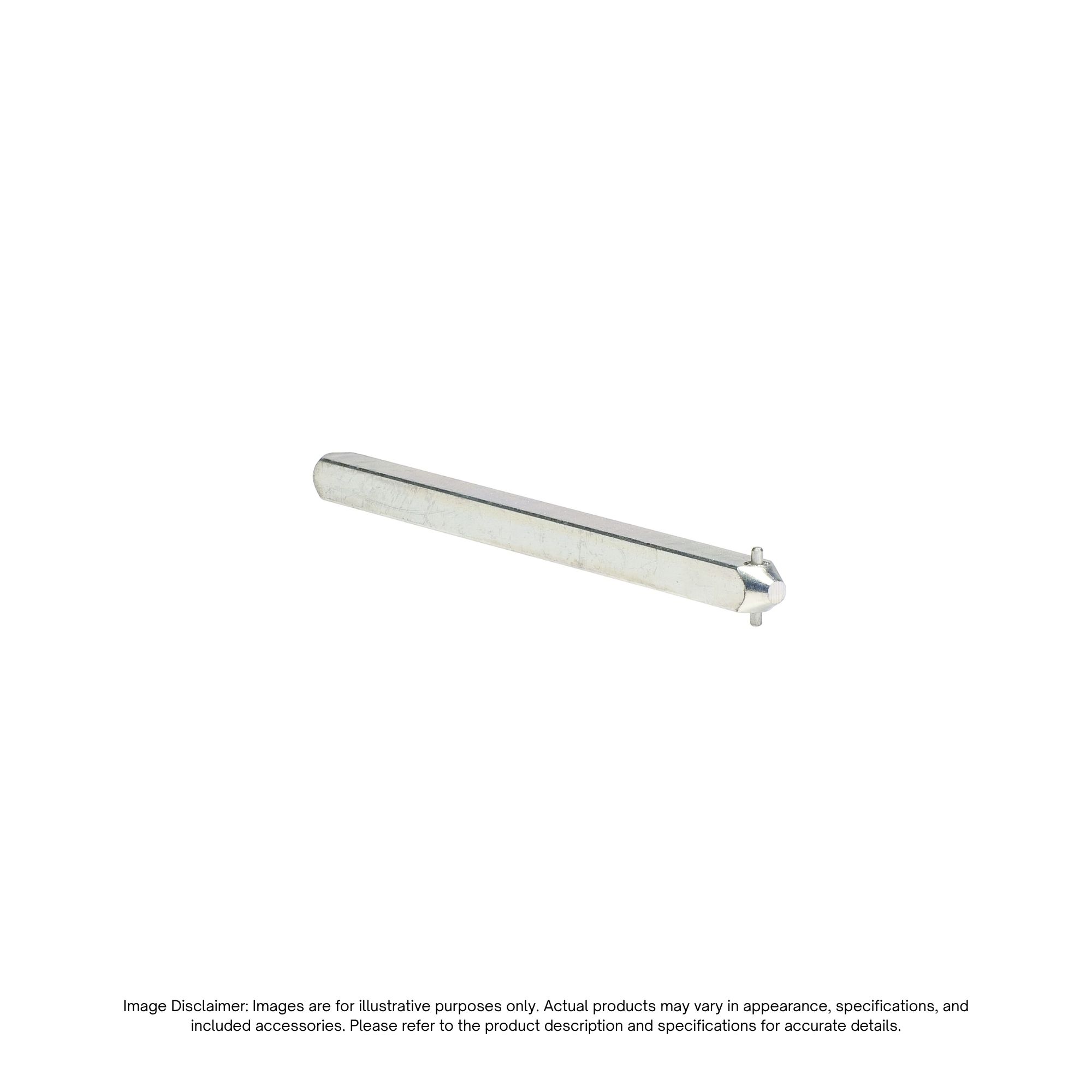

The ABB OXP12X535 Shaft (1SCA022042R6110) is a long operating shaft designed for use with compatible ABB pistol-type operating handles and switch-disconnectors. Measuring 535 mm in length, it connects the external operating handle to the switch mechanism, allowing manual operation when the switch is installed inside an electrical enclosure.

Featuring a 12 mm shaft diameter, the OXP12X535 is designed for specified ABB OT Series switch-disconnectors and compatible pistol handles. Its extended length accommodates installations requiring a greater distance between the operating handle and the switch mechanism, making it suitable for industrial control panels and electrical distribution assemblies.

Key Features

• 535 mm Shaft Length: Provides extended reach for switch installations requiring greater operating depth.
• 12 mm Shaft Diameter: Designed for compatible ABB pistol-type operating handles and switch mechanisms.
• External Switch Operation: Connects an external operating handle to the switch-disconnector mechanism.
• ABB OT Series Compatibility: Suitable for specified ABB switch-disconnectors, depending on the switch model and mounting depth.
• Industrial Applications: Supports external manual operation in electrical enclosures, control panels, and power distribution assemblies.
• Accessory Integration: Designed to work with compatible ABB pistol handles for external switch operation.

Specifications
