Description

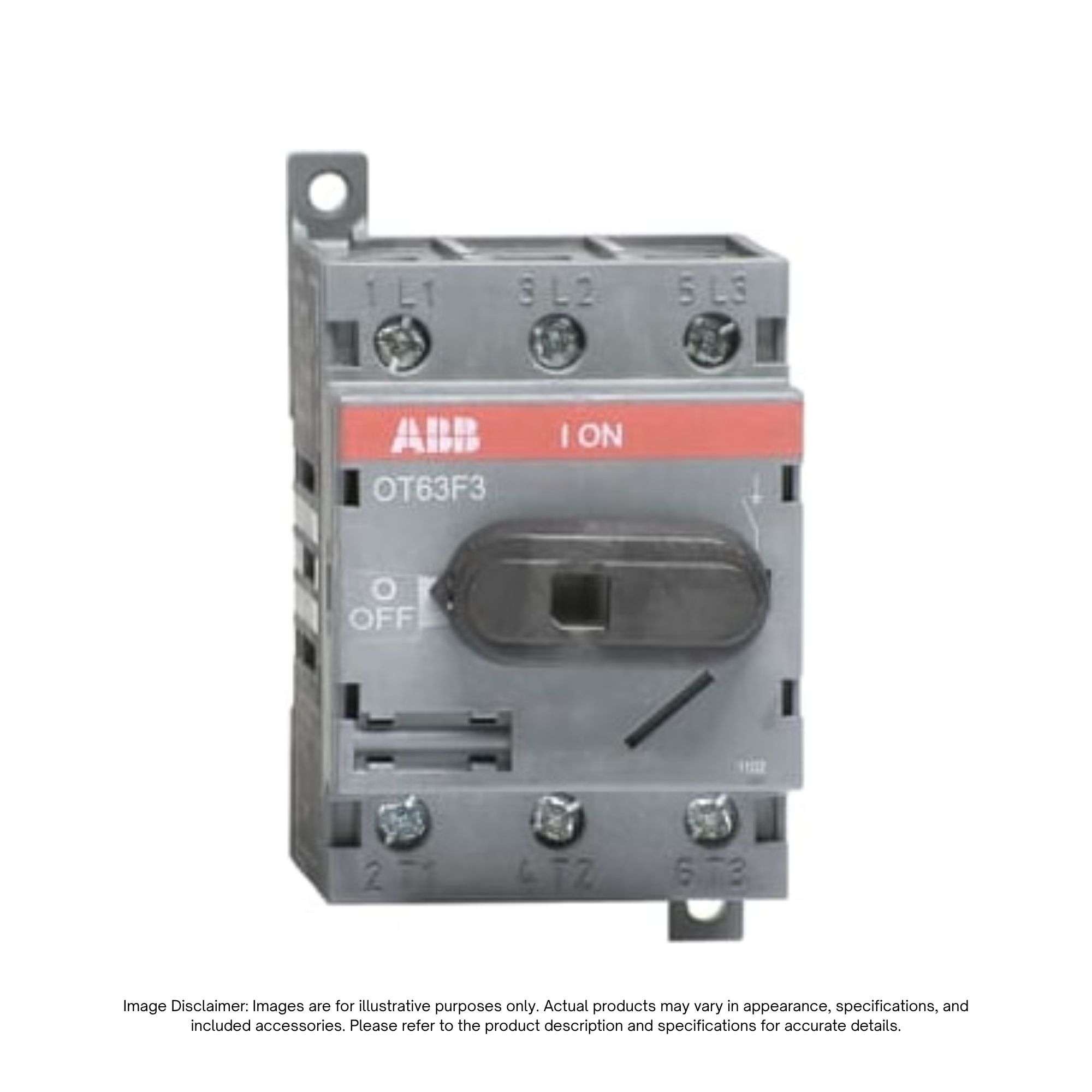

The ABB OT63F3P Front Operated Non-Fusible Disconnect Switch is a three-pole disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. With a 60 A UL/CSA ampere rating and a 63 A IEC operational current rating under specified conditions, it provides reliable manual switching for three-phase electrical systems. The switch is rated for operation up to 600 V AC under applicable UL/CSA specifications and supports motor applications up to 30 hp at 480–600 V AC.
Part of ABB’s OT Series, the OT63F3P features a compact, modular design for base and DIN-rail mounting in industrial control panels and electrical distribution assemblies. Its protected clamp terminals help reduce the risk of accidental contact with live electrical connections. The front-operated mechanism provides clear switch position indication and supports manual isolation during equipment servicing and maintenance.
The OT63F3P kit includes an OHB65J6 pistol handle and an OXP6X170 operating shaft for external operation. The handle can be padlocked in the OFF position with up to three padlocks and supports door interlocking to help prevent the enclosure from opening while the switch is ON. Incoming power can be connected from either the top or bottom, providing flexibility during installation.
Key Features
- 63 A IEC Operational Current: Supports electrical switching applications within the manufacturer’s specified IEC ratings.
- 60 A UL/CSA Rating: Provides a 60 A ampere rating under applicable North American standards.
- 600 V AC UL/CSA Rating: Suitable for industrial electrical applications within the specified voltage rating.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- 30 hp Motor Rating: Supports three-phase motor applications up to 30 hp at applicable voltages.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Base and DIN-Rail Mounting: Supports flexible installation in compatible electrical panels.
- Protected Clamp Terminals: Helps reduce the risk of accidental contact with live electrical connections.
- Pistol Handle and Shaft Included: Supplied with an OHB65J6 handle and OXP6X170 shaft for external operation.
- Three-Padlock Capability: Allows up to three padlocks in the OFF position to support maintenance lockout procedures.
- Door Interlock: Supports enclosure door interlocking while the switch is in the ON position.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT63F3P |
| Manufacturer Part Number | OT63F3P |
| Brand / Manufacturer | ABB |
| Product Series | OT Series |
| Product Type | Front-Operated Non-Fusible Disconnect Switch |
| Number of Poles | 3 |
| Rated Current (UL/CSA) | 60 A |
| Rated Operational Current (IEC) | 63 A under specified utilization categories and voltages |
| Maximum Operating Voltage (UL/CSA) | 600 V AC |
| Horsepower Rating at 240 V AC | 15 hp, three-phase |
| Horsepower Rating at 480 V AC | 30 hp, three-phase |
| Horsepower Rating at 600 V AC | 30 hp, three-phase |
| Short-Circuit Current Rating | 100 kA as listed by the distributor; verify the applicable protective-device combination |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Terminal Type | Screw / Protected Clamp Terminals |
| Terminal Connections | Integral Terminal Lugs |
| Compatible Copper Conductor Size | 14 AWG to 1 AWG |
| Front Protection | Finger-Proof Terminal Design |
| Included Operating Handle | OHB65J6 Pistol Handle |
| Included Operating Shaft | OXP6X170, 170 mm |
| Handle Enclosure Ratings | NEMA Type 1, 3R, 12 |
| Padlocking Capability | Up to 3 padlocks in the OFF position |
| Door Interlock | Supports door interlocking in the ON position |
| Dimensions (H × W × D) | Approximately 91 × 53 × 72 mm |
| Applicable Standards | IEC 60947-3, UL 508, CSA C22.2 No. 14 |
