Description

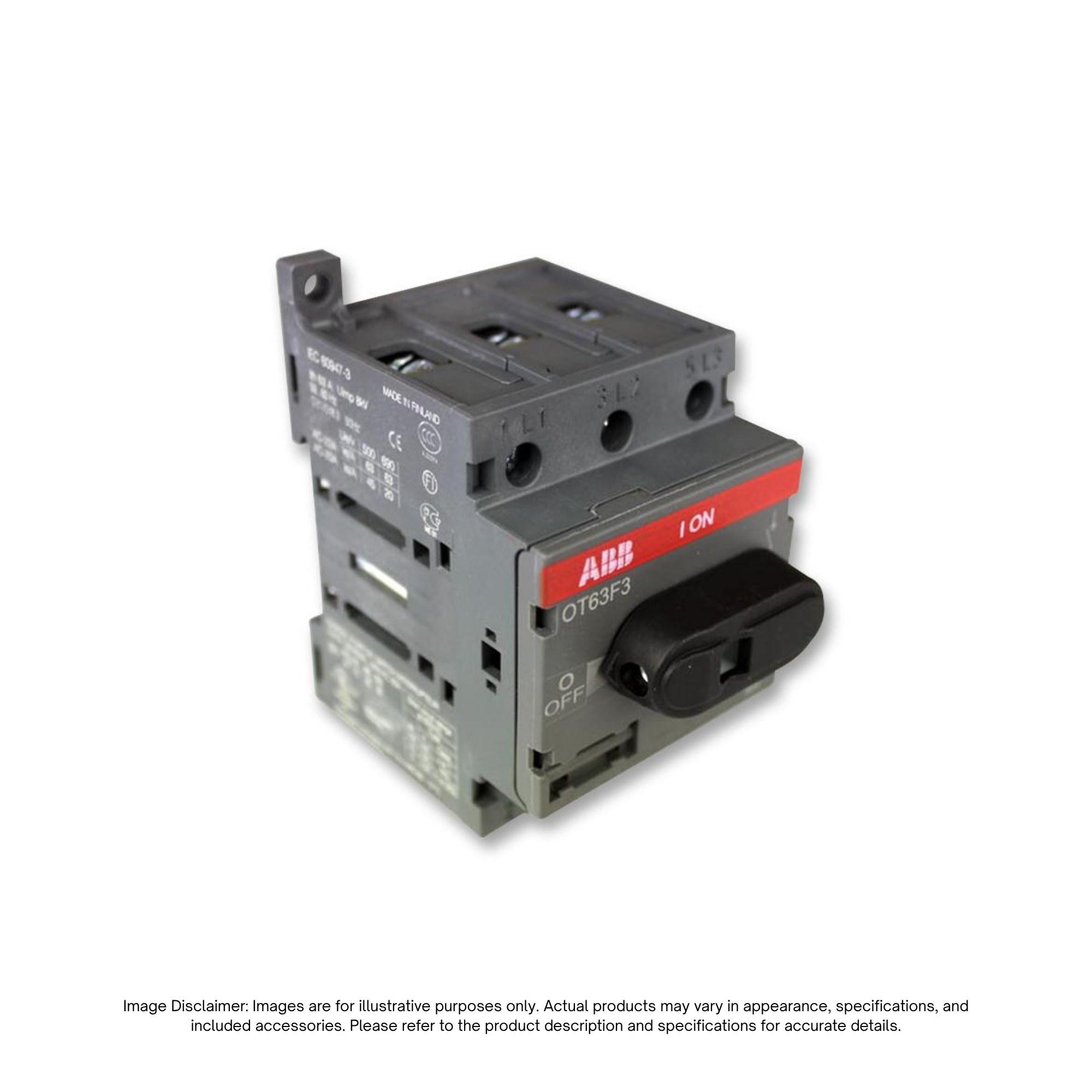

The ABB OT63F3 Switch-Disconnector (1SCA105332R1001) is a three-pole, non-fusible disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. Rated at 60 A under UL/CSA standards and supporting operating voltages up to 600 V AC under these standards, it provides reliable manual switching for electrical circuits and three-phase motor applications.
Part of ABB’s OT Series, the OT63F3 features a front-operated design with base mounting and DIN-rail mounting compatibility. Its protected clamp terminals help reduce the risk of accidental contact with live electrical connections. The switch supports incoming power connections from either the top or bottom, providing installation flexibility for industrial control panels and electrical distribution assemblies.
The OT63F3 is supplied without an operating handle or shaft, allowing compatible accessories to be selected separately for the intended installation. Its IP20 front protection rating and compact construction make it suitable for integration into compatible industrial electrical enclosures.
Key Features
- 60 A UL/CSA Current Rating: Designed for industrial power distribution and electrical isolation applications.
- 600 V AC UL/CSA Rating: Suitable for North American electrical systems within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Base and DIN-Rail Mounting: Offers flexible mounting options for compatible electrical panel installations.
- Protected Clamp Terminals: Helps reduce accidental contact with live electrical connections.
- IP20 Front Protection: Provides protection against access to hazardous parts with fingers under specified installation conditions.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- Compatible Operating Accessories: Accepts a separately selected handle and shaft for manual operation.
- Industrial Standards: Designed to meet IEC 60947-3, UL 508, and CSA C22.2 No. 14 requirements.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT63F3 |
| Product ID (SKU) | 1SCA105332R1001 |
| Brand / Manufacturer | ABB |
| Product Range | OT Series |
| Product Type | Non-Fusible Switch-Disconnector |
| Number of Poles | 3 |
| Rated Current (UL/CSA) | 60 A |
| Maximum Operating Voltage (UL/CSA) | 600 V AC |
| Rated Operational Voltage (IEC) | 750 V AC |
| Rated Insulation Voltage | 750 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Operational Current AC-21A | 63 A at 380–415 V, 500 V, and 690 V AC |
| Rated Operational Current AC-22A | 63 A at 380–415 V, 500 V, and 690 V AC |
| Rated Operational Current AC-23A | 63 A at 380–415 V; 45 A at 500 V; 20 A at 690 V AC |
| Rated Operational Power AC-23A | 11 kW at 220–240 V; 22 kW at 400–415 V and 500 V; 15 kW at 690 V AC |
| Horsepower Rating at 220–240 V AC | 15 hp, three-phase |
| Horsepower Rating at 440–480 V AC | 30 hp, three-phase |
| Horsepower Rating at 550–600 V AC | 30 hp, three-phase |
| Conventional Free-Air Thermal Current | 63 A at 40°C |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Operating Method | Front Operated |
| Terminal Type | Screw Terminals with Protected Clamp Terminals |
| Compatible Copper Conductor Size | 1.5–35 mm² |
| Terminal Tightening Torque (IEC) | 2 N·m |
| Terminal Tightening Torque (UL/CSA) | 18 in-lb |
| Front Protection Rating | IP20 |
| Power Feed Direction | Top In–Bottom Out or Bottom In–Top Out |
| Operating Handle | Not Included |
| Operating Shaft | Not Included |
| Rated Short-Circuit Making Capacity | 1.4 kA at 690 V AC |
| Rated Short-Time Withstand Current | 1 kA for 1 second |
| Mechanical Durability | 20,000 operating cycles |
| Product Width | 52.5 mm |
| Product Height | 91.5 mm |
| Product Depth | 72.5 mm |
| Net Weight | 0.25 kg |
| Applicable Standards | IEC 60947-3, UL 508, CSA C22.2 No. 14 |
| EAN | 6417019392912 |
