Description

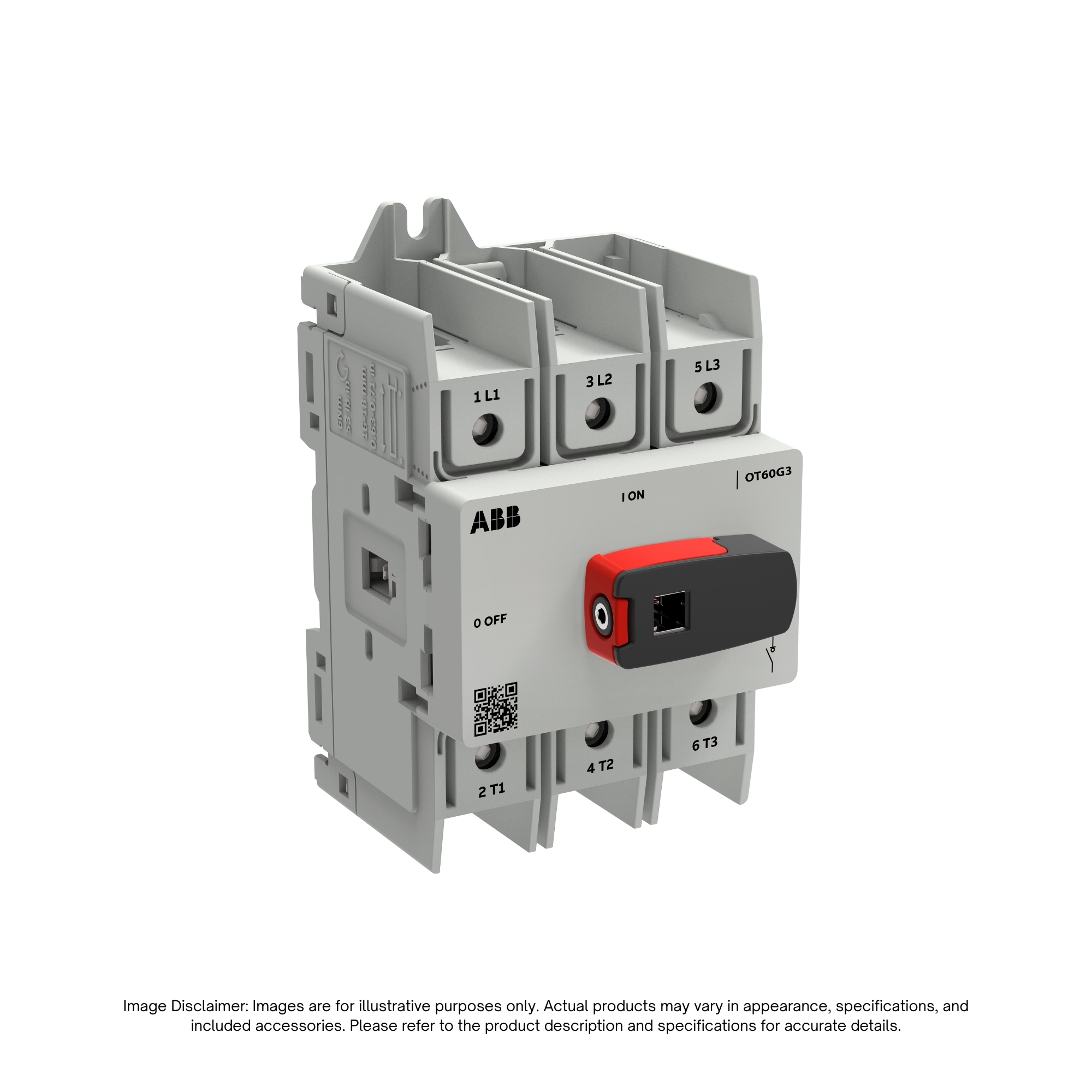

The ABB OT60G3-3BS Switch-Disconnector (1SCA162540R1001) is a three-pole switch-disconnector designed for industrial power distribution, motor control, and electrical isolation applications. With a 60 A UL/CSA ampere rating and a maximum operating voltage of 600 V AC under UL/CSA specifications, it provides reliable manual switching for three-phase electrical systems and supports motor applications up to 50 hp at 600 V AC.
Part of ABB’s OT Plus series, the OT60G3-3BS features a compact, modular design with base mounting and DIN-rail mounting compatibility. It includes built-in screw terminals and a direct-mounted black knob handle that can be padlocked. The switch is also suitable for panels with a 45 mm DIN cut-out, offering flexibility for industrial control panel installations.
The switch features IP20 front protection to help reduce the risk of accidental contact with live terminal connections. An optional operating shaft and external handle can be installed for external switching, making the OT60G3-3BS suitable for a range of electrical enclosure configurations.
Key Features
- 60 A Current Rating: Designed for industrial power distribution and electrical isolation applications under UL/CSA ratings.
- 600 V AC UL/CSA Rating: Suitable for North American electrical applications within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- 50 hp Motor Rating: Supports three-phase motor applications up to 50 hp at 600 V AC under applicable UL/CSA ratings.
- OT Plus Series: Features a compact, modular design for industrial electrical assemblies.
- Base and DIN-Rail Mounting: Supports flexible installation in compatible panels, including those with a 45 mm DIN cut-out.
- Built-In Screw Terminals: Provides integrated electrical connections for compatible copper conductors.
- Padlockable Knob Handle: Includes a direct-mounted black knob handle that can be padlocked.
- External Operating Option: Supports the installation of a compatible operating shaft and external handle, which are sold separately.
- IP20 Front Protection: Helps prevent access to hazardous parts with fingers under specified installation conditions.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- High Short-Circuit Performance: Supports conditional short-circuit ratings up to 50 kA with specified upstream fuse protection and operating conditions.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT60G3-3BS |
| Product ID (SKU) | 1SCA162540R1001 |
| Brand / Manufacturer | ABB |
| Product Series | OT Plus |
| Product Type | Non-Fusible Switch-Disconnector |
| Number of Poles | 3 |
| UL/CSA Ampere Rating | 60 A |
| Maximum UL/CSA Operating Voltage | 600 V AC |
| IEC Rated Operational Voltage | Up to 800 V AC |
| Rated Insulation Voltage | 800 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Conventional Free-Air Thermal Current | 63 A |
| Horsepower Rating at 240 V AC | 20 hp, three-phase |
| Horsepower Rating at 480 V AC | 40 hp, three-phase |
| Horsepower Rating at 600 V AC | 50 hp, three-phase |
| Rated Operational Current AC-21A | 63 A at 415 V and 690 V AC |
| Rated Operational Current AC-22A | 63 A at 415 V and 690 V AC |
| Rated Operational Current AC-23A | 63 A at 415 V and 690 V AC |
| Rated Operational Power AC-23A | 30 kW at 415 V; 55 kW at 690 V |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Suitable Panel Cut-Out | 45 mm DIN Cut-Out |
| Operating Method | Front Operated |
| Handle Type | Direct-Mounted Knob Handle |
| Handle Colour | Black |
| Handle Length | 37 mm |
| External Operating Handle and Shaft | Not Included; Available Separately |
| Terminal Type | Built-In Screw Terminals |
| Supported Copper Conductor Range (UL/CSA) | 12 AWG to 2/0 AWG |
| Front Protection Rating | IP20 |
| Conditional Short-Circuit Current Rating | 50 kA at up to 415 V with a 100 A fuse; 50 kA at 690 V with an 80 A fuse |
| Rated Short-Circuit Making Capacity | 4.8 kA at 690 V AC |
| Rated Short-Time Withstand Current | 2.5 kA for 1 second |
| Mechanical Durability | 100,000 operating cycles |
| Product Width | 70 mm |
| Product Height | 123 mm |
| Product Depth | 74.6 mm |
| Net Weight | 0.399 kg |
| Applicable Standards | IEC 60947-3, UL 98, CSA C22.2 No. 4 |
| EAN | 6417019925738 |
