Description

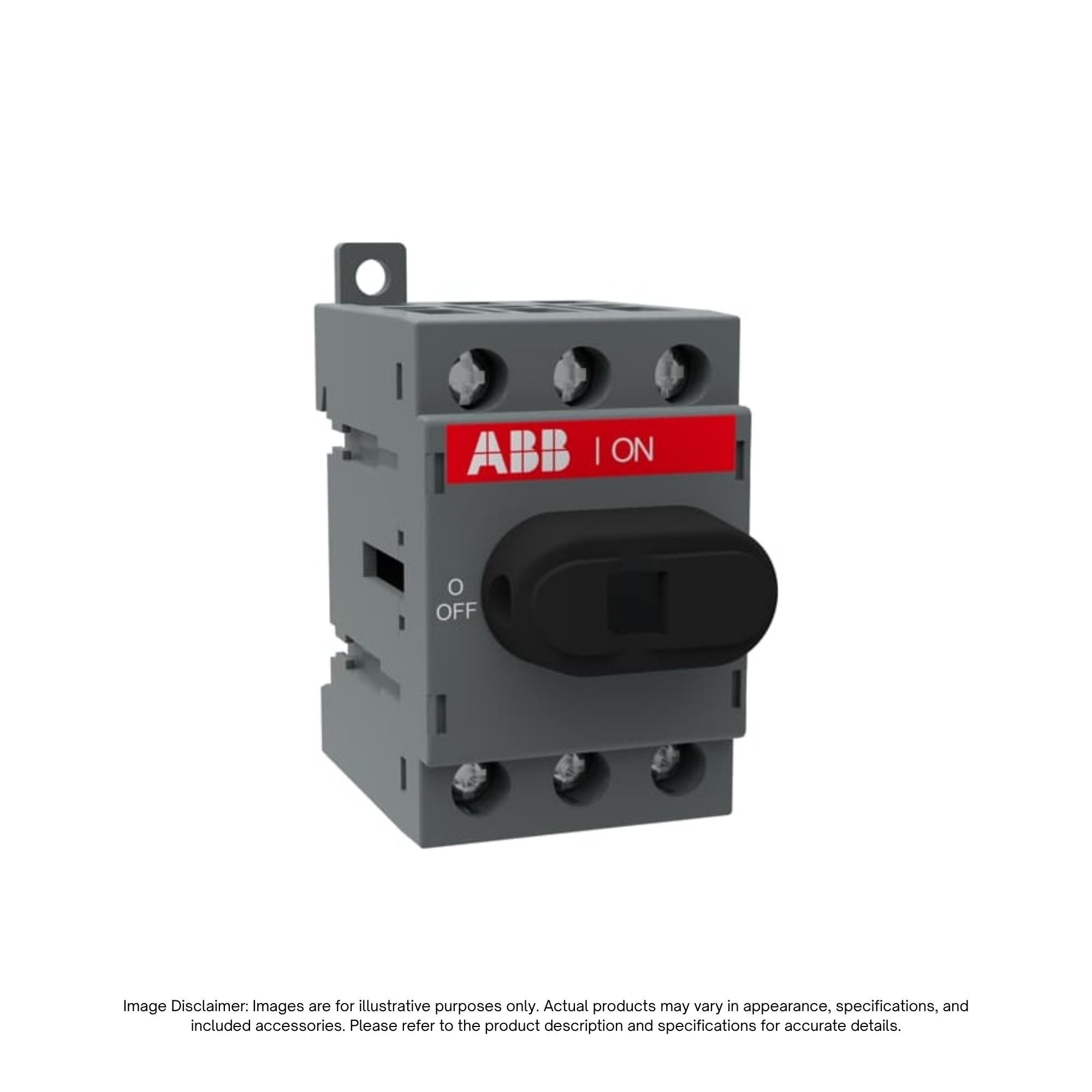

The ABB OT40F3P Front Operated Non-Fusible Disconnect Switch is a three-pole disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. Rated at 40 A and 600 V AC, it supports three-phase motor applications up to 25 hp at 600 V and provides a reliable means of manually disconnecting electrical circuits.
Part of ABB’s OT Series, the OT40F3P features a compact, modular design with base and DIN-rail mounting compatibility for integration into industrial control panels. Its finger-proof, dead-front construction and protected terminals help reduce the risk of accidental contact with live electrical components. The switch features a quick-make, quick-break operating mechanism, welded contact protection, and clear position markings for dependable operation.
The OT40F3P is supplied with an OHB65J6 pistol handle and OXP6X170 operating shaft for front operation. The handle supports padlocking in the OFF position with up to three padlocks, while the operating mechanism provides door interlocking to help prevent the enclosure from opening while the switch is ON. Incoming power can be connected from either the top or bottom, providing flexibility during installation.
Key Features
- 40 A Current Rating: Designed for industrial electrical distribution, motor control, and isolation applications.
- 600 V AC Rated Voltage: Suitable for electrical systems operating within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- 25 hp Motor Rating: Supports three-phase motor applications up to 25 hp at 600 V AC under applicable UL/CSA ratings.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Finger-Proof Construction: Protected terminals and dead-front construction help reduce the risk of accidental contact with live electrical components.
- Pistol Handle and Shaft Included: Supplied with an OHB65J6 handle and OXP6X170 shaft for manual operation.
- Quick-Make, Quick-Break Mechanism: Supports rapid switching action for reliable operation.
- Padlockable OFF Position: Accommodates up to three padlocks to support lockout procedures during maintenance.
- Door Interlock: Helps prevent the enclosure door from opening while the switch is in the ON position.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- Integral Terminal Lugs: Provides integrated terminal connections for compatible copper conductors.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT40F3P |
| Manufacturer Part Number | OT40F3P |
| Brand / Manufacturer | ABB |
| Product Series | OT Series |
| Product Type | Front-Operated Non-Fusible Disconnect Switch |
| Rated Current | 40 A |
| Rated Voltage | 600 V AC |
| Horsepower Rating at 240 V AC | 10 hp, three-phase |
| Horsepower Rating at 480 V AC | 20 hp, three-phase |
| Horsepower Rating at 600 V AC | 25 hp, three-phase |
| Number of Poles | 3 |
| Short-Circuit Current Rating | 10 kA as listed by the distributor; verify applicable protective-device requirements |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Terminal Type | Screw Terminals |
| Terminal Connections | Integral Terminal Lugs |
| Temperature Rating | 40°C |
| Operating Method | Front Operated |
| Operating Mechanism | Quick-Make, Quick-Break |
| Included Operating Handle | OHB65J6 Pistol Handle |
| Included Operating Shaft | OXP6X170, 170 mm |
| Enclosure Ratings | NEMA Type 1, 3R, 12 with specified handle |
| Padlocking Capability | Up to 3 padlocks in the OFF position |
| Door Interlock | Helps prevent door opening while the switch is ON |
| Power Feed Direction | Top or Bottom |
| Dimensions (H × W × D) | 68 × 35 × 56 mm, as listed by the distributor |
| Applicable Standards | IEC 60947-3, UL 508, CSA C22.2 No. 14 |
