Description

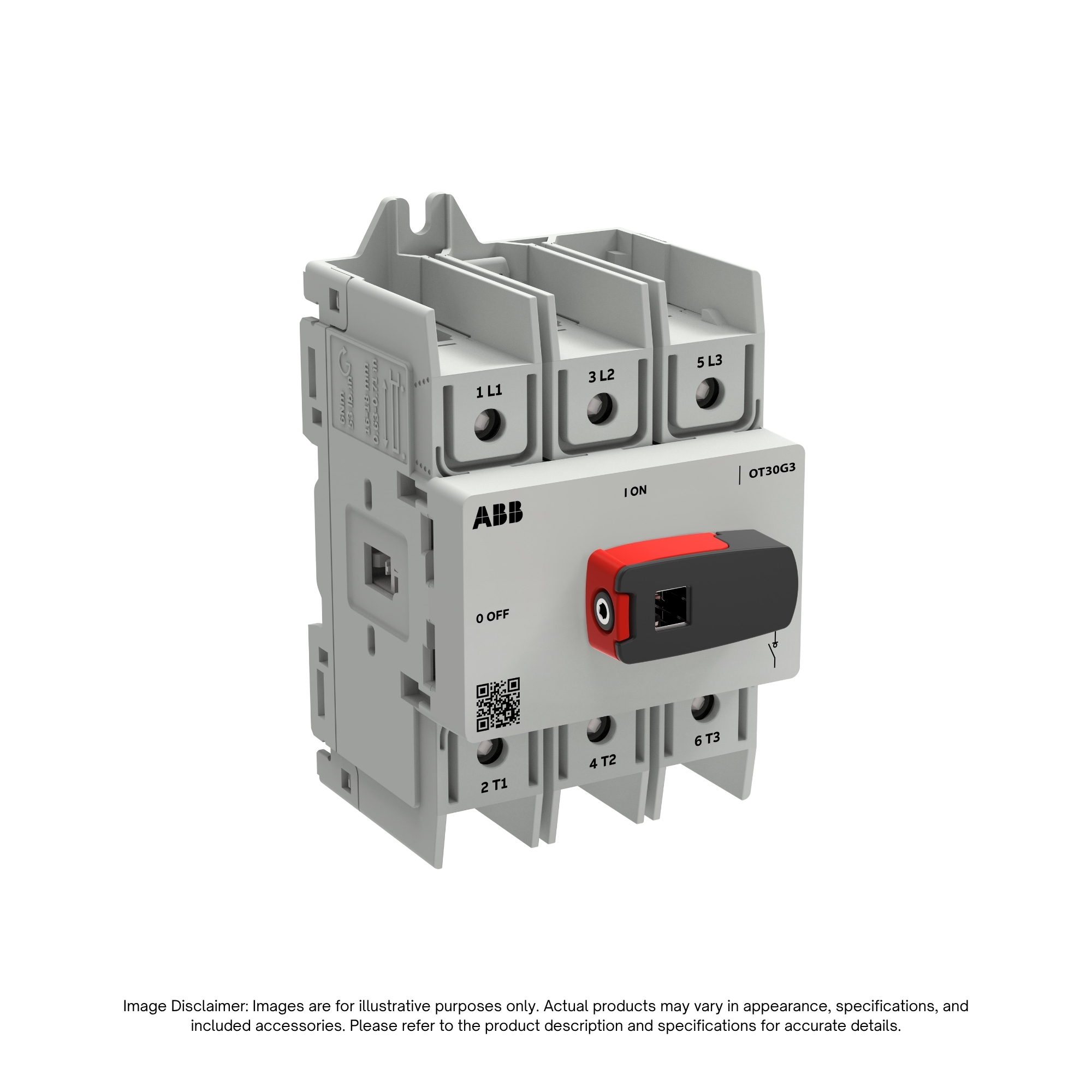

The ABB OT30G3-3BS Switch-Disconnector (1SCA162539R1001) is a three-pole, non-fusible switch-disconnector designed for industrial power distribution, motor control, and electrical isolation applications. With a 30 A UL/CSA ampere rating and a maximum UL/CSA operating voltage of 600 V AC, it provides reliable manual switching for three-phase electrical systems and supports motor applications up to 30 hp at 600 V AC.
Part of ABB’s OT Plus switch-disconnector series, the OT30G3-3BS features a compact design with base mounting and DIN-rail mounting compatibility. It includes built-in screw terminals and a direct-mounted black knob handle that can be padlocked. An operating shaft can be installed for external operation, making the switch suitable for compatible electrical panels and enclosure applications.
The switch features IP20 front protection and a modular construction for convenient installation in industrial control panels. Its design supports top or bottom incoming power connections, while the padlockable handle helps support safe electrical isolation during maintenance.
Key Features
- 30 A Current Rating: Designed for industrial electrical distribution and isolation applications under UL/CSA ratings.
- 600 V AC UL/CSA Rating: Suitable for North American electrical systems operating within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- 30 hp Motor Rating: Supports three-phase motor applications up to 30 hp at 550–600 V AC under applicable UL/CSA ratings.
- Non-Fusible Design: Provides switching and isolation without integrated fuse holders.
- OT Plus Series: Features a compact, modular design for industrial panel installations.
- Base and DIN-Rail Mounting: Offers flexible installation options, including compatibility with panels featuring a 45 mm DIN cut-out.
- Built-In Screw Terminals: Provides integrated connection points for electrical wiring.
- Direct-Mounted Knob Handle: Includes a black operating handle that can be padlocked.
- External Shaft Operation: Supports installation of a compatible operating shaft for external switching.
- IP20 Front Protection: Helps prevent access to hazardous parts with fingers under specified installation conditions.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT30G3-3BS |
| Product ID (SKU) | 1SCA162539R1001 |
| Brand / Manufacturer | ABB |
| Product Series | OT Plus |
| Product Type | Non-Fusible Switch-Disconnector |
| Number of Poles | 3 |
| UL/CSA Ampere Rating | 30 A |
| Maximum UL/CSA Operating Voltage | 600 V AC |
| IEC Rated Operational Voltage | Up to 800 V AC |
| Conventional Free-Air Thermal Current | 40 A |
| Horsepower Rating at 240 V AC | 10 hp, three-phase |
| Horsepower Rating at 480 V AC | 20 hp, three-phase |
| Horsepower Rating at 600 V AC | 30 hp, three-phase |
| Rated Operational Current AC-21A | 40 A at 415 V and 690 V AC |
| Rated Operational Current AC-22A | 40 A at 415 V and 690 V AC |
| Rated Operational Current AC-23A | 40 A at 415 V and 690 V AC |
| Rated Insulation Voltage | 800 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Operating Method | Front Operated |
| Handle Type | Direct-Mounted Knob Handle |
| Handle Colour | Black |
| Padlocking Capability | Padlockable Handle |
| External Operating Shaft | Can be installed for external operation |
| Terminal Type | Built-In Screw Terminals |
| Front Protection Rating | IP20 |
| Copper Wire Range (UL/CSA) | 12 AWG to 2/0 AWG |
| Conditional Short-Circuit Rating | 50 kA at 690 V AC with an 80 A fuse, as specified in the technical listing |
| Rated Short-Time Withstand Current | 2.5 kA for 1 second |
| Mechanical Durability | 100,000 operating cycles |
| Product Width | 70 mm |
| Product Height | 123 mm |
| Product Depth | 74.6 mm |
| Net Weight | 0.399 kg |
| Applicable Standards | IEC 60947-3, UL 98, CSA C22.2 No. 4 |
| EAN | 6417019925721 |
