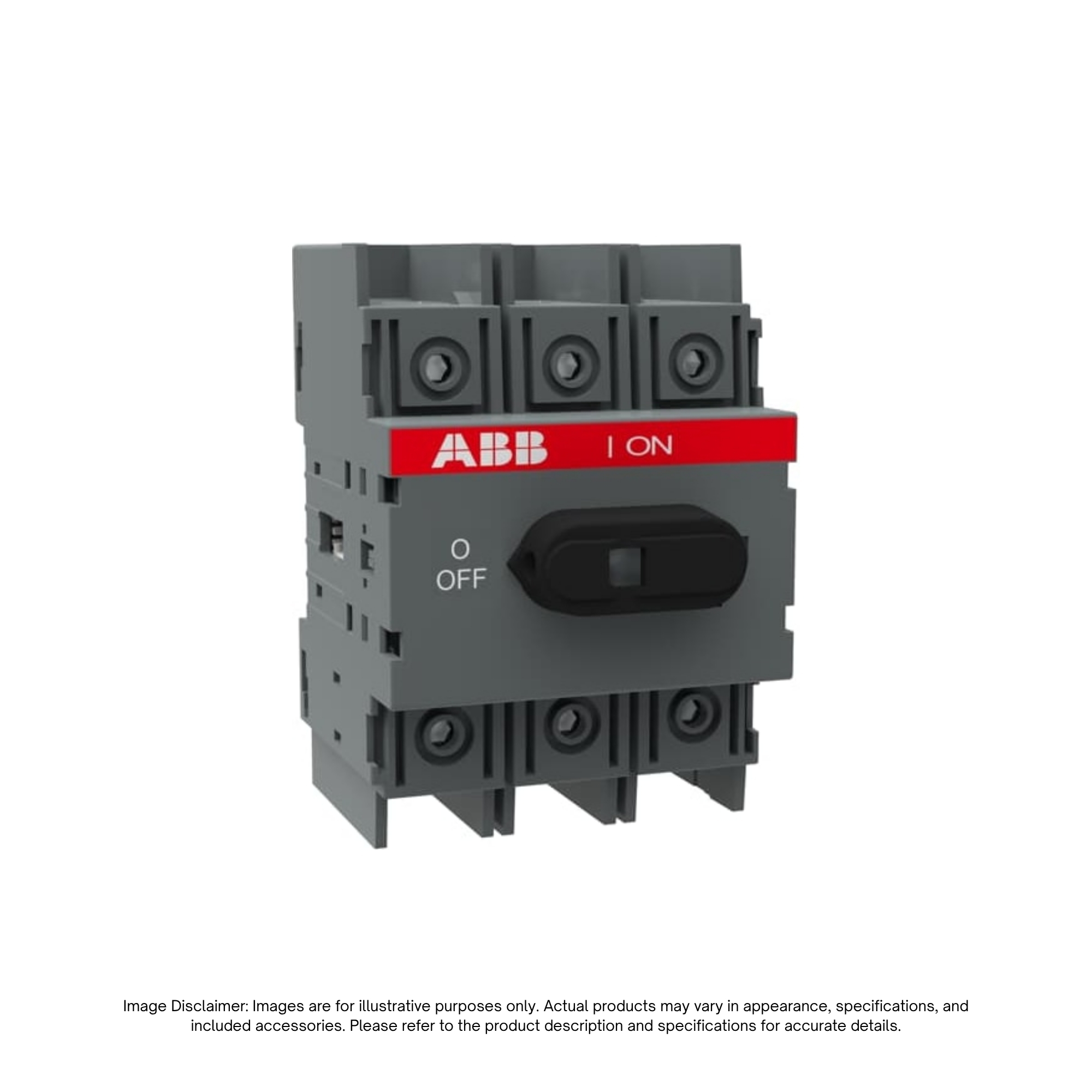

OT30F3P – ABB | NF DISC. SW. 30A C/W PISTOL + SHAFT

Description

The ABB OT30F3P Front Operated Non-Fusible Disconnect Switch is a three-pole disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. Rated at 30 A and 600 V AC, it supports three-phase motor applications up to 30 hp at applicable voltages and provides a reliable means of manually disconnecting electrical circuits.

Part of ABB’s OT Series, the OT30F3P features a modular design with surface and DIN-rail mounting compatibility for integration into industrial control panels. Its finger-proof, dead-front construction and terminal shrouds help reduce the risk of accidental contact with live electrical components. The quick-make, quick-break operating mechanism supports dependable switching performance, while clear position indication makes it easy to identify the switch status.

Supplied with a pistol handle and operating shaft, the OT30F3P supports door interlocking to help prevent the enclosure from opening while the switch is in the ON position. The handle can be padlocked in the OFF position with up to three padlocks, supporting maintenance and lockout procedures. Incoming power can be connected from either the top or bottom, providing additional installation flexibility.

Key Features

• 30 A Current Rating: Designed for industrial electrical distribution and isolation applications.
• 600 V AC Rated Voltage: Suitable for electrical systems operating within the manufacturer’s specified ratings.
• Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
• 30 hp Motor Rating: Supports three-phase motor applications up to 30 hp at 550–600 V AC under applicable UL/CSA ratings.
• Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
• Finger-Proof Construction: Dead-front construction and terminal shrouds help reduce the risk of accidental contact with live parts.
• Pistol Handle and Shaft Included: Supplied with operating accessories for front-operated switching.
• Quick-Make, Quick-Break Mechanism: Provides rapid switching action for dependable operation.
• Padlockable OFF Position: Accommodates up to three padlocks to support lockout procedures during maintenance.
• Door Interlock: Helps prevent the enclosure door from opening while the switch is in the ON position.
• Flexible Power Feed: Supports incoming power connections from either the top or bottom.
• Modular Construction: Supports integration into compatible industrial electrical assemblies.
