Description

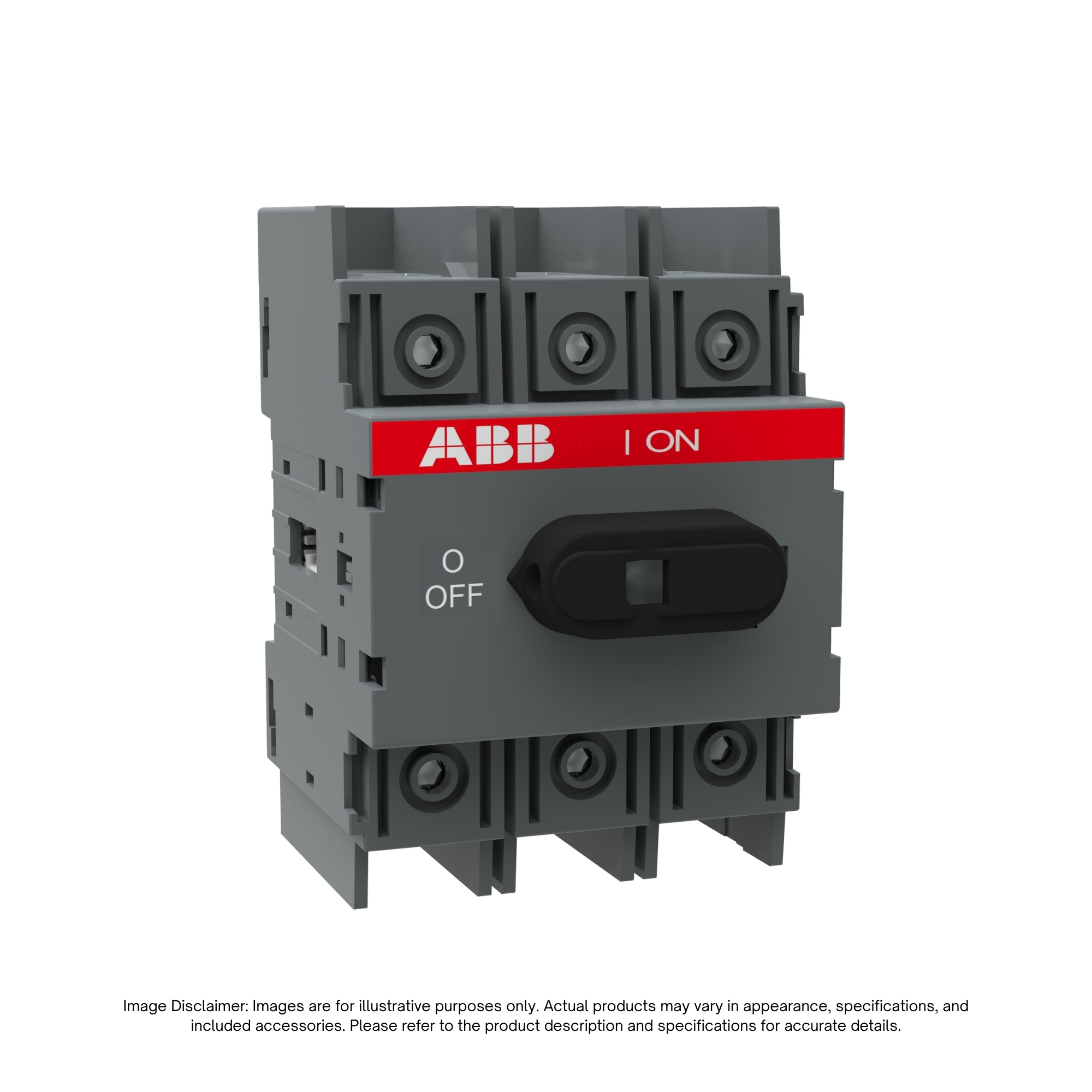

The ABB OT30F3 Switch-Disconnector (1SCA105068R1001) is a three-pole, non-fusible disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. Rated at 30 A under UL/CSA standards and suitable for operating voltages up to 600 V AC, it provides reliable manual switching for electrical circuits and three-phase motor applications.
Part of ABB’s OT Series, the OT30F3 features a front-operated mechanism with base mounting and DIN-rail mounting compatibility. Its front-protected clamp terminals help reduce the risk of accidental contact with live electrical connections. The compact design supports integration into industrial control panels, electrical distribution equipment, and machinery installations.
The switch accommodates incoming power connections from either the top or bottom and features an IP20 front protection rating. It is supplied without an operating handle or shaft, allowing compatible accessories to be selected separately according to the enclosure and installation requirements.
Key Features
- 30 A UL/CSA Current Rating: Designed for industrial electrical distribution and isolation applications.
- 600 V AC Rating: Supports North American electrical applications within the manufacturer’s specified ratings.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Base and DIN-Rail Mounting: Offers mounting flexibility for compatible electrical panel installations.
- Front-Protected Terminals: Helps reduce the risk of accidental contact with live electrical connections.
- IP20 Front Protection: Provides protection against access to hazardous parts with fingers and against solid objects of 12.5 mm or larger under applicable test conditions.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- Handle and Shaft Sold Separately: Allows selection of compatible operating accessories for the intended installation.
- Industrial Standards: Designed to meet IEC 60947-3, UL 98, and CSA C22.2 No. 4 requirements.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT30F3 |
| Product ID (SKU) | 1SCA105068R1001 |
| Brand / Manufacturer | ABB |
| Product Range | OT Series |
| Product Type | Non-Fusible Switch-Disconnector |
| Number of Poles | 3 |
| Rated Current (UL/CSA) | 30 A |
| Maximum Operating Voltage (UL/CSA) | 600 V AC |
| Rated Operational Voltage (IEC) | Up to 750 V AC |
| Rated Operational Current AC-21A | 40 A at 380–415 V, 500 V, and 690 V |
| Rated Operational Current AC-22A | 40 A at 380–415 V, 500 V, and 690 V |
| Rated Operational Current AC-23A | 40 A at 380–415 V, 500 V, and 690 V, as listed in the technical datasheet |
| Rated Operational Power AC-23A | 18.5 kW at 380–415 V; 22 kW at 500 V; 37 kW at 690 V |
| Horsepower Rating (UL/CSA) | 7.5 hp at 240 V AC; 15 hp at 480 V AC; 30 hp at 550–600 V AC, three-phase |
| Rated Insulation Voltage | 750 V |
| Rated Impulse Withstand Voltage | 8 kV |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Operating Method | Front Operated |
| Terminal Type | Screw Terminals / Protected Clamp Terminals |
| Front Protection Rating | IP20 |
| Power Feed Direction | Top In – Bottom Out or Bottom In – Top Out |
| Operating Handle | Not Included |
| Operating Shaft | Not Included |
| Rated Short-Circuit Making Capacity | 3.6 kA at 690 V AC |
| Rated Short-Time Withstand Current | 2.5 kA for 1 second |
| Dimensions (W × H × D) | 70 × 100 × 74 mm |
| Product Weight | 0.36 kg |
| Applicable Standards | IEC 60947-3, UL 98, CSA C22.2 No. 4 |
| EAN | 6417019391984 |
