Description

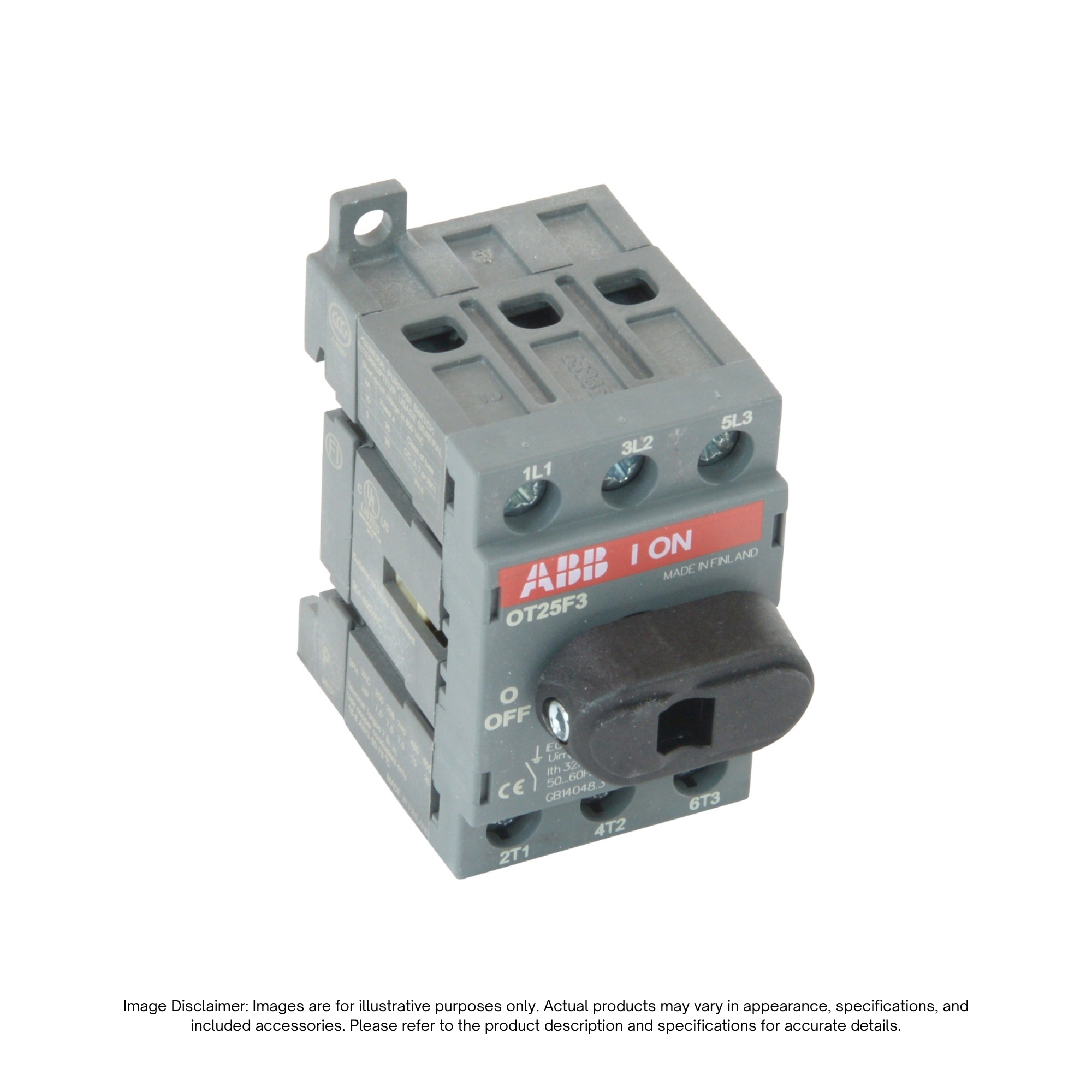

The ABB OT25F3 Switch-Disconnector (1SCA104857R1001) is a three-pole, non-fusible disconnect switch designed for industrial power distribution, motor control, and electrical isolation applications. With a 25 A rated operational current under IEC specifications and a 30 A UL/CSA ampere rating, it provides reliable manual switching for electrical circuits in industrial control panels and distribution assemblies.
Featuring a front-operated mechanism, the OT25F3 supports both base mounting and DIN-rail installation. Its protected clamp terminals help reduce the risk of accidental contact with live electrical connections. The compact design measures 68 mm high, 35 mm wide, and 56 mm deep, making it suitable for space-conscious electrical installations.
The OT25F3 supports operational voltages up to 750 V AC under IEC specifications and 600 V AC under UL/CSA specifications. The operating handle and shaft are sold separately, allowing compatible accessories to be selected according to the installation requirements.
Key Features
- 25 A IEC Rated Operational Current: Supports electrical switching applications within the manufacturer’s specified IEC ratings.
- 30 A UL/CSA Ampere Rating: Provides a 30 A ampere rating under applicable North American standards.
- Three-Pole Configuration: Provides switching and isolation for compatible three-phase electrical circuits.
- Non-Fusible Design: Provides circuit disconnection without integrated fuse holders.
- Flexible Mounting: Supports base mounting and DIN-rail installation for convenient panel integration.
- Protected Screw Terminals: Features front-protected terminals to help reduce accidental contact with live electrical connections.
- Compact Construction: Measures 68 mm high, 35 mm wide, and 56 mm deep for space-conscious installations.
- Flexible Power Feed: Supports incoming power connections from either the top or bottom.
- 750 V Insulation Rating: Provides insulation suitable for applications within the manufacturer’s specified ratings.
- Handle and Shaft Sold Separately: Allows compatible operating accessories to be selected for the intended installation.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | OT25F3 |
| Product ID (SKU) | 1SCA104857R1001 |
| Brand / Manufacturer | ABB |
| Product Range | OT Series |
| Product Type | Non-Fusible Switch-Disconnector |
| Number of Poles | 3 |
| Rated Operational Current (IEC) | 25 A for AC-21A and AC-22A applications at specified voltages |
| Rated Current (UL/CSA) | 30 A |
| Maximum Operating Voltage (UL/CSA) | 600 V AC |
| Rated Operational Voltage (IEC) | Up to 750 V AC |
| Rated Insulation Voltage | 750 V |
| Rated Impulse Withstand Voltage | 8 kV |
| AC-23A Rated Operational Current | 20 A at 380–415 V and 500 V; 11 A at 690 V |
| Rated Operational Power (AC-23A) | 4 kW at 220–240 V; 9 kW at 400–415 V, 500 V, and 690 V |
| Mounting Type | Base Mounting, DIN-Rail Mountable |
| Operating Method | Front Operated |
| Terminal Type | Screw Terminals |
| Front Protection Rating | IP20 |
| Operating Mechanism Position | Top of the Switch |
| Power Feed Direction | Top In / Bottom Out or Bottom In / Top Out |
| Operating Handle | Not Included |
| Operating Shaft | Not Included |
| Product Width | 35 mm |
| Product Height | 68 mm |
| Product Depth | 56 mm |
| Product Weight | Approximately 0.11 kg |
| Applicable Standards | IEC 60947-3, UL 508, CSA C22.2 No. 14 |
| EAN | 6417019390000 |
