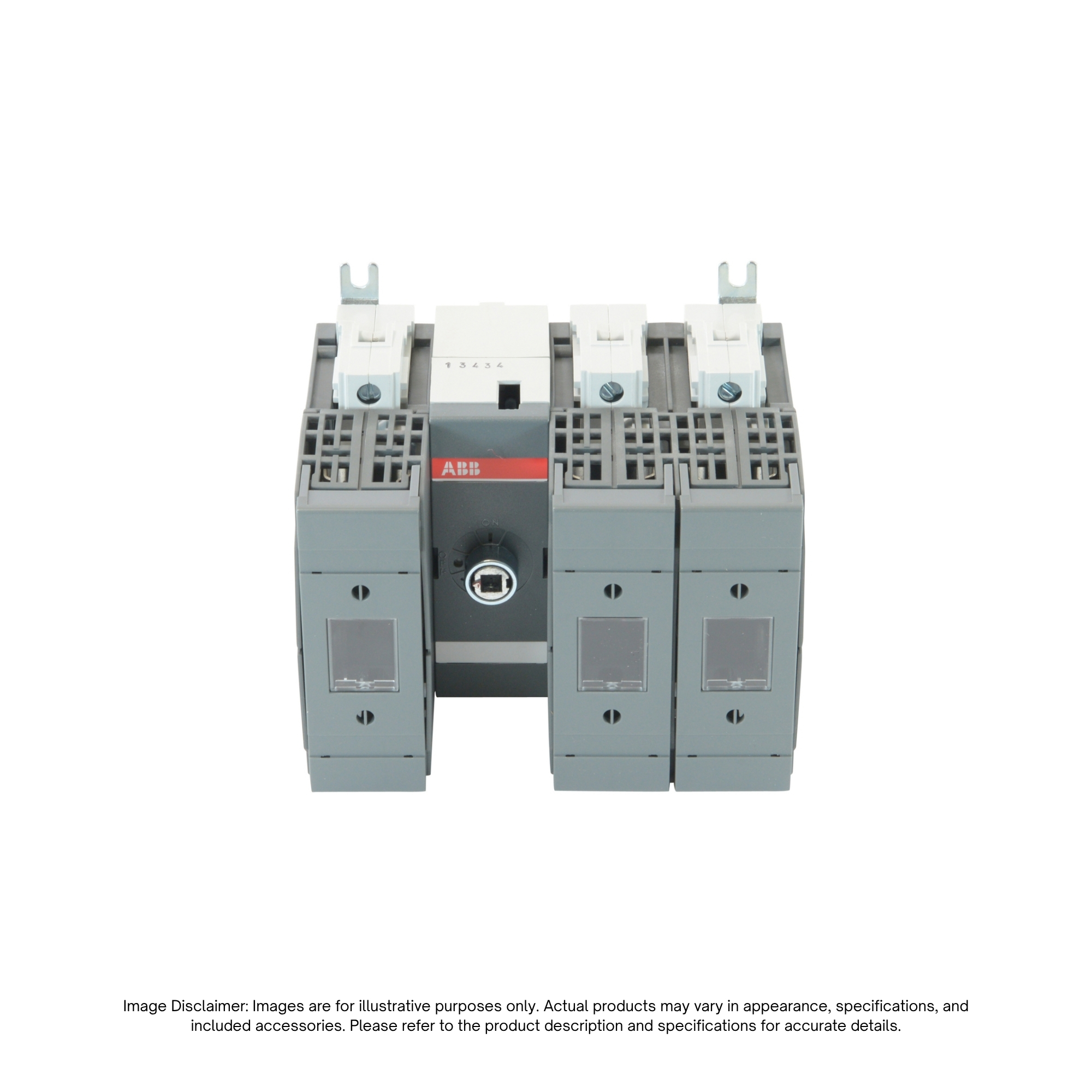

OS60GJ12 – ABB | FUSIBLE SWITCH 60A 3P

$284.23 CAD

The ABB OS60GJ12 (1SCA115448R1001) is a 60 A, 600 V, three-pole fusible disconnect switch for Class J fuses. Features front operation, IP20 protected terminals, and a central operating mechanism. Handle and shaft sold separately.

1 in stock

SKU: OS60GJ12 Categories: ,

Description

The ABB OS60GJ12 Fusible Disconnect Switch (1SCA115448R1001) is a front-operated, three-pole disconnect switch designed for industrial power distribution and electrical isolation applications. Rated at 60 A and 600 V, it accommodates Class J fuses to provide circuit protection and a means of isolating electrical equipment during maintenance.

Part of ABB’s OS60G series, the OS60GJ12 features an operating mechanism positioned between the poles and protected IP20 tunnel terminals. Its compact design supports installation in industrial control panels and electrical distribution assemblies. The switch is designed to meet UL 98 and IEC 60947-3 standards and is supplied without an operating handle or shaft, allowing compatible accessories to be selected separately.

Key Features

  • 60 A Current Rating: Designed for electrical distribution applications requiring a 60 A fusible disconnect switch.
  • Three-Pole Configuration: Provides three-pole switching for compatible three-phase electrical systems.
  • Class J Fuse Compatibility: Designed for use with Class J fuses rated up to 60 A.
  • 600 V Rated Voltage: Suitable for applications within the manufacturer’s specified electrical ratings.
  • Front-Operated Design: Supports manual switching using a compatible operating handle and shaft.
  • IP20 Protected Terminals: Features protected tunnel terminals for electrical connections.
  • Central Operating Mechanism: Positions the operating mechanism between the switch poles for a compact assembly.
  • Industry Standards: Designed to meet applicable UL 98 and IEC 60947-3 requirements.

Specifications

Technical Specification Detail
Product Model OS60GJ12
Product ID (SKU) 1SCA115448R1001
Brand / Manufacturer ABB
Product Range OS60G
Product Type Fusible Disconnect Switch
Operating Method Front Operated
Number of Poles 3
Rated Current 60 A
Rated Voltage 600 V
Fuse Class Class J
Fuse Rating 60 A
Terminal Protection IP20
Terminal Type Protected Tunnel Terminals
Operating Mechanism Position Between the Poles
Operating Handle Not Included
Operating Shaft Not Included
Applicable Standards UL 98, IEC 60947-3
EAN 6417019538662
Weight 4.564 lbs
Dimensions 5.120 × 7.170 × 8.940 in
