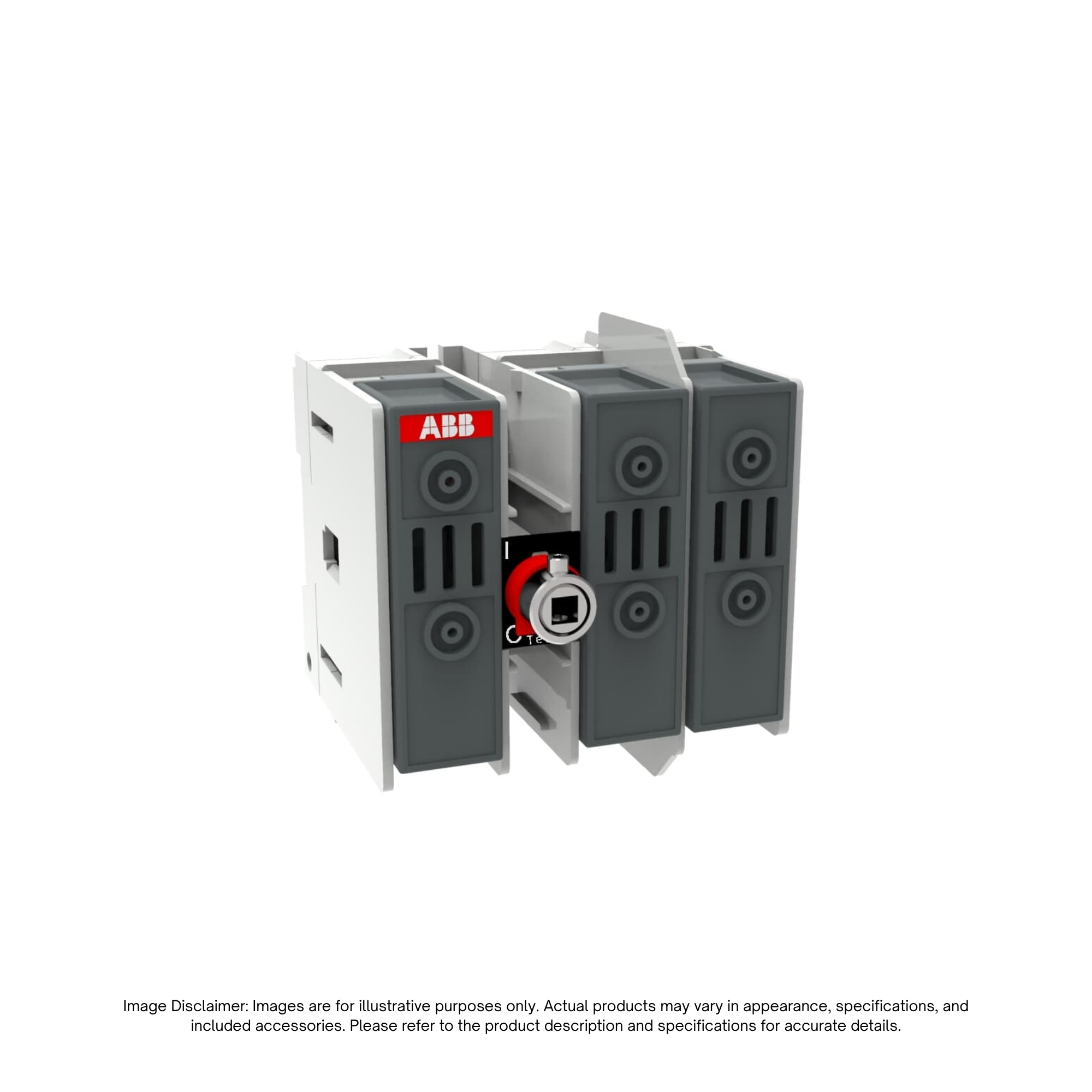

OS30FAJ12 – ABB | 3P 30A J FUSIBLE SW

$211.78 CAD

The ABB OS30FAJ12 (1SCA108824R1001) is a 30 A, 600 V, three-pole fusible disconnect switch for Class J fuses. Features front operation, IP20 protected terminals, and a centrally positioned mechanism. Handle and shaft sold separately.

10 in stock

SKU: OS30FAJ12 Categories: ,

Description

The ABB OS30FAJ12 Fusible Disconnect Switch (1SCA108824R1001) is a front-operated, three-pole disconnect switch designed for industrial power distribution and electrical isolation applications. Rated at 30 A and 600 V, it accommodates Class J fuses to provide circuit protection and a means of isolating electrical equipment during maintenance.

Part of ABB’s OS30F series, this fusible disconnect switch features a centrally positioned operating mechanism between the poles and protected IP20 tunnel terminals. Its compact design supports integration into industrial control panels and electrical distribution assemblies. The OS30FAJ12 is supplied without an operating handle or shaft, allowing the appropriate accessories to be selected separately for the installation.

Key Features

  • 30 A Current Rating: Designed for electrical distribution applications requiring a 30 A fusible disconnect switch.
  • Three-Pole Configuration: Provides three-pole switching for compatible three-phase electrical systems.
  • Class J Fuse Compatibility: Accepts Class J fuses rated up to 30 A.
  • 600 V Rated Voltage: Suitable for applications within the manufacturer’s specified electrical ratings.
  • Front-Operated Design: Provides front access for manual switching when fitted with a compatible operating handle and shaft.
  • Protected IP20 Terminals: Features protected tunnel terminals for electrical connections.
  • Centrally Positioned Mechanism: The operating mechanism is located between the switch poles.
  • Industrial Standards: Designed to meet applicable UL 98 and IEC 60947-3 requirements.

Specifications

Technical Specification Detail
Product Model OS30FAJ12
Product ID (SKU) 1SCA108824R1001
Brand / Manufacturer ABB
Product Range OS30F
Product Type Fusible Disconnect Switch
Operating Method Front Operated
Number of Poles 3
Rated Current 30 A
Rated Voltage 600 V
Fuse Class Class J
Fuse Rating 30 A
Terminal Protection IP20
Terminal Type Tunnel Terminals
Wire Size Range AWG 18–8
Mechanism Position Between the Poles
Operating Handle Not Included
Operating Shaft Not Included
Applicable Standards UL 98, IEC 60947-3
EAN 6417019420912
Weight 2.072 lbs
Dimensions 4.130 × 4.650 × 4.410 in
Part Number
