OS100GJ12P – ABB | 3P SW 100A J FUSE W/ HDL AND SHAFT

$438.62 CAD

The ABB OS100GJ12P (1SCA115666R1001) is a 100 A, 600 V, three-pole fusible disconnect switch compatible with Class J fuses. Includes an operating handle and shaft, with padlocking capability in the OFF position.

4 in stock

SKU: OS100GJ12P Categories: ,

Description

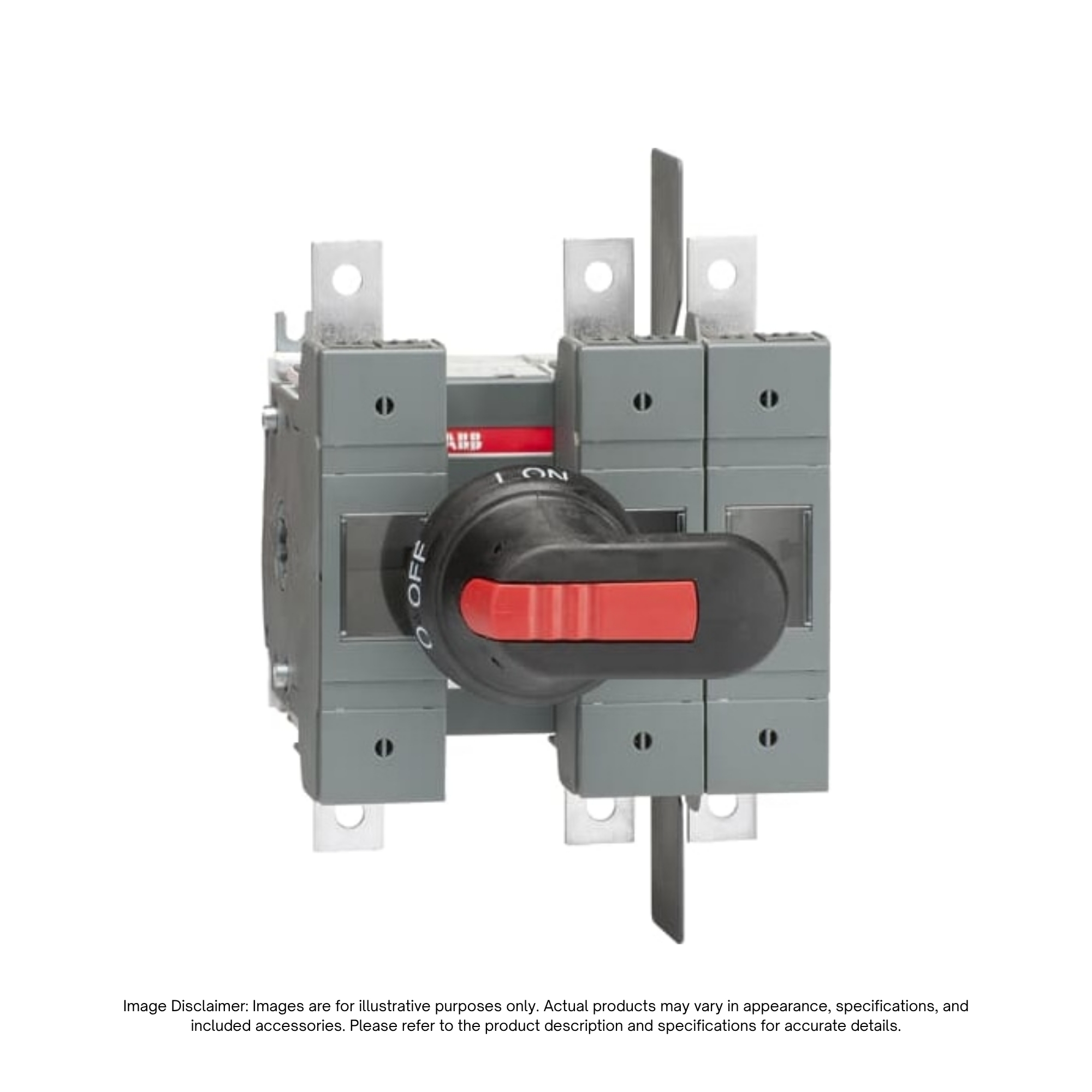

The ABB OS100GJ12P Fusible Disconnect Switch (1SCA115666R1001) is a front-operated, three-pole switch designed for industrial power distribution and electrical isolation applications. Rated at 100 A and 600 V, it accepts Class J fuses and provides a reliable means of switching and isolating electrical circuits.

Part of ABB’s OS100G series, this switch features a mechanism positioned between the poles and comes supplied with an operating handle and shaft for convenient installation and manual operation. The adjustable shaft accommodates a range of installation depths, while the handle supports padlocking in the OFF position and includes a door interlock in the ON position. The assembly is suitable for industrial control panels and electrical distribution equipment requiring a compact, fusible disconnect solution.

Key Features

  • 100 A Current Rating: Designed for electrical distribution applications requiring a 100 A fusible disconnect switch.
  • Three-Pole Configuration: Provides three-pole switching for compatible three-phase electrical systems.
  • Class J Fuse Compatibility: Accepts Class J fuses rated up to 100 A.
  • 600 V Rated Voltage: Suitable for applications within the manufacturer’s specified electrical ratings.
  • Handle and Shaft Included: Supplied with an OHB65J6 operating handle and OXP6X161 shaft for manual switch operation.
  • Padlockable OFF Position: Supports padlocking in the OFF position for maintenance and lockout procedures.
  • Door Interlock: Helps prevent the enclosure door from opening while the switch is in the ON position.
  • Adjustable Shaft: Accommodates different installation depths for flexible panel mounting.
  • Terminal Bolt Set Included: Supplied with M8 x 25 mm terminal bolts for electrical connections.

Specifications

Technical Specification Detail
Product Model OS100GJ12P
Product ID (SKU) 1SCA115666R1001
Brand / Manufacturer ABB
Product Range OS100G
Product Type Fusible Disconnect Switch
Operating Method Front Operated
Number of Poles 3
Rated Current 100 A
Rated Voltage 600 V AC
Fuse Class Class J
Fuse Rating Up to 100 A
Mechanism Position Between the Poles
Included Handle OHB65J6
Included Operating Shaft OXP6X161
Terminal Bolt Set M8 x 25 mm
Padlocking Capability OFF Position
Door Interlock ON Position
Applicable Standards UL 98, IEC 60947-3
EAN 6417019479859
Weight 4.630 lbs
Dimensions 5.120 × 7.170 × 8.940 in
