OHB65L6 – ABB | PISTOL HANDLE 6X65MM BLACK

Description

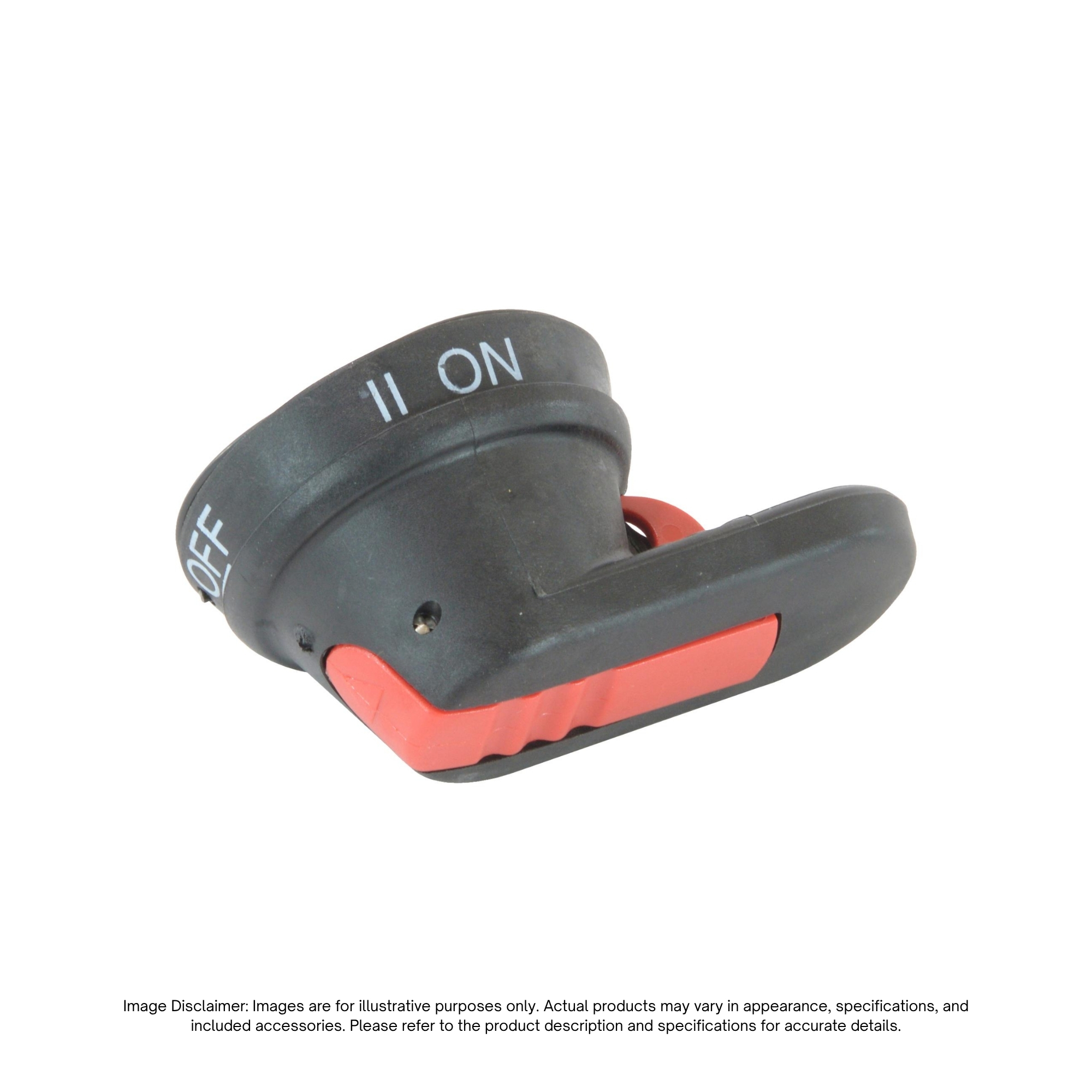

The ABB OHB65L6 Pistol Handle (1SCA022580R9650) is a black rotary operating handle designed for compatible ABB switch-disconnectors. With a compact 65 mm handle length and a 6 mm operating shaft connection, it provides convenient manual operation for industrial electrical distribution systems and control panel installations.

Featuring an IP66 protection rating and NEMA Type 4/4X compatibility, the OHB65L6 is suitable for demanding environments requiring protection against dust and water ingress. The handle supports padlocking with up to three padlocks in the OFF position and includes a door interlock that prevents the enclosure door from opening while the switch is in the ON position. Rear screw fixing and a screw-free front design provide double insulation.

Key Features

• Compact 65 mm Handle: Provides convenient manual rotary operation for compatible ABB switch-disconnectors.
• 6 mm Shaft Compatibility: Designed for use with compatible ABB OT, OTDC, and OS series switches.
• IP66 Protection: Provides protection against dust ingress and powerful water jets under specified test conditions.
• NEMA Type 4/4X Compatibility: Suitable for installations requiring these enclosure protection ratings.
• Three-Padlock Capability: Supports padlocking in the OFF position to facilitate lockout procedures during maintenance.
• Door Interlock: Prevents the enclosure door from opening while the switch is in the ON position.
• Rear Screw Fixing: Uses screws installed from the back of the handle, leaving the front free of screws to maintain double insulation.
• Black Finish: Provides a professional appearance for industrial electrical assemblies.

Specifications
