Description
The Leviton N1303-DS Powerswitch® Industrial Grade AC Manual Motor Controller provides safe, reliable manual ON/OFF switching control and disconnect capabilities for heavy-duty motor loads. Housed in a durable NEMA Type 1 gray steel enclosure, this 30 Amp, 600 VAC double-pole (2-pole) manual motor controller is engineered specifically for single-phase commercial and industrial motor applications, and is fully certified for use as a local motor disconnect.
Built to withstand demanding manufacturing environments, the N1303-DS features flame-retardant (UL 94 V-0) thermoplastic polyester construction and heavy-duty silver-cadmium contacts that deliver exceptional arc resistance over a 6,000-cycle inductive motor load lifecycle. Equipped with back and side wiring connections for #10 to #8 AWG wire and clearly marked terminals (L1, L2, T1, T2), this enclosed switch is ideal for controlling conveyor systems, industrial pumps, HVAC equipment, and air compressors.
Key Features
- Powerswitch® Motor Control: Rated for 30 A / 600 VAC 2-pole control and certified as a suitable motor disconnect switch.
- NEMA Type 1 Steel Enclosure: Factory-enclosed in a rugged gray steel housing for clean, general-purpose indoor installations.
- Silver-Cadmium Contacts: .031″ thick solid contacts offer high conductivity and superior arc resistance with a 6,000-cycle inductive motor rating.

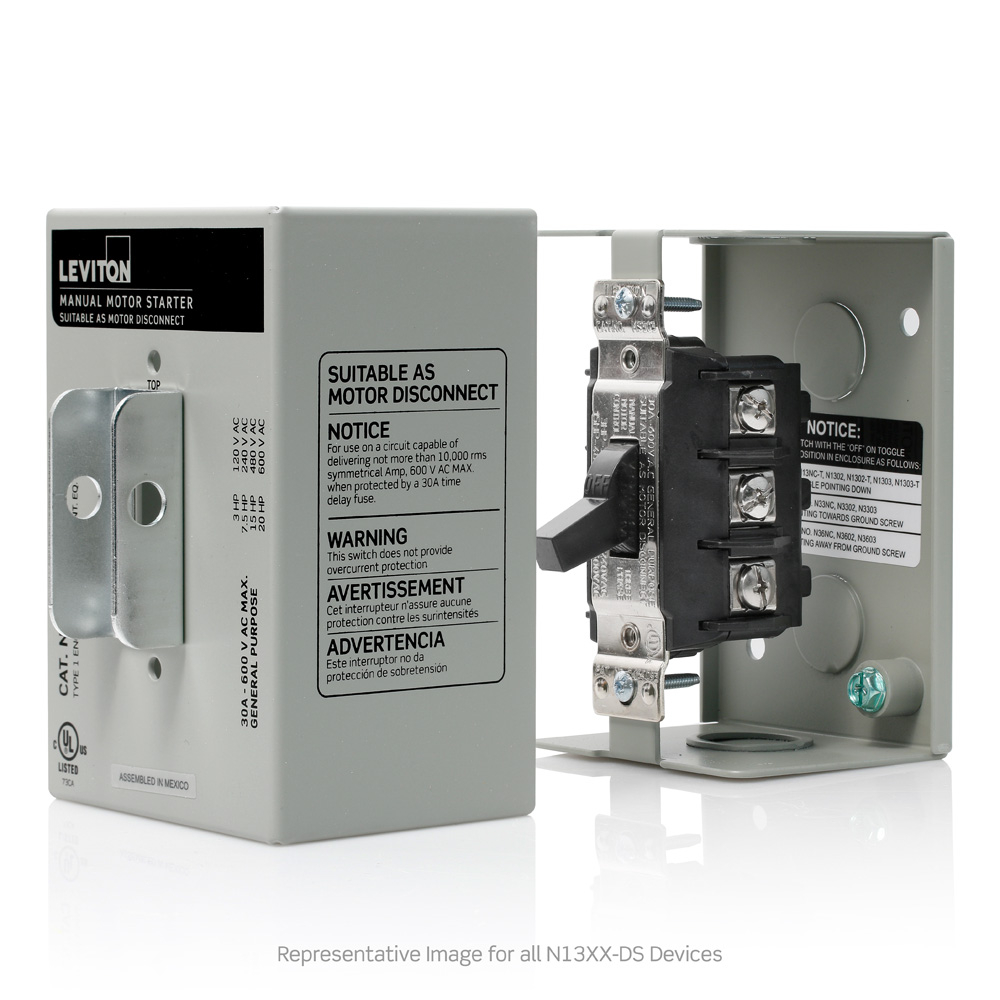

- Flexible Back & Side Wiring: Accommodates #10–#8 AWG conductors with high-torque 10-32 terminal screws and clearly marked L1, L2, T1, T2 terminals.
- Rugged Flame-Retardant Body: Thermoplastic polyester face, base, and toggle resist impacts, heat, and chemicals across operating temperatures from -40°C to 60°C.
- 10-Year Limited Warranty: Backed by Leviton’s 10-year warranty for reliable long-term operational performance.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | N1303-DS |
| Brand | Leviton (Powerswitch® Series) |
| Product Type | Enclosed AC Manual Motor Controller / Disconnect Switch |
| Amperage Rating | 30 A |
| Voltage Rating | 600 VAC |
| Poles / Phase | 2-Pole (Double-Pole / Single-Phase) |
| Enclosure Rating & Color | Type 1 Enclosure, Gray Steel Cover |
| Wiring / Termination | Back & Side Wired (Terminals T1, T2, L1, L2) |
| Terminal Conductor Range | #10 to #8 AWG |
| Terminal Screw Torque | 25 in-lbs maximum |
| Grounding | Grounded to Enclosure |
| Contact Material | Silver-Cadmium (.031 in Thick) |
| Body & Toggle Material | Thermoplastic Polyester (UL 94 V-0 Rated) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Inductive Load Endurance | 6,000 cycles at full rated current |
| Dielectric Voltage Withstand | Withstands 2200 V for 1 minute |
| Standards & Certifications | UL 60947-4-1 (supersedes UL 508), cUL per CSA C22.2 No. 111 (File #E63969), ANSI C-73, NEMA WD-1 & WD-6, NOM-ANCE |
| Warranty | 10-Year Limited Warranty |
| Primary Applications | Motor disconnect, conveyor systems, industrial pumps, HVAC units, air compressors, heavy machinery control |
