Description

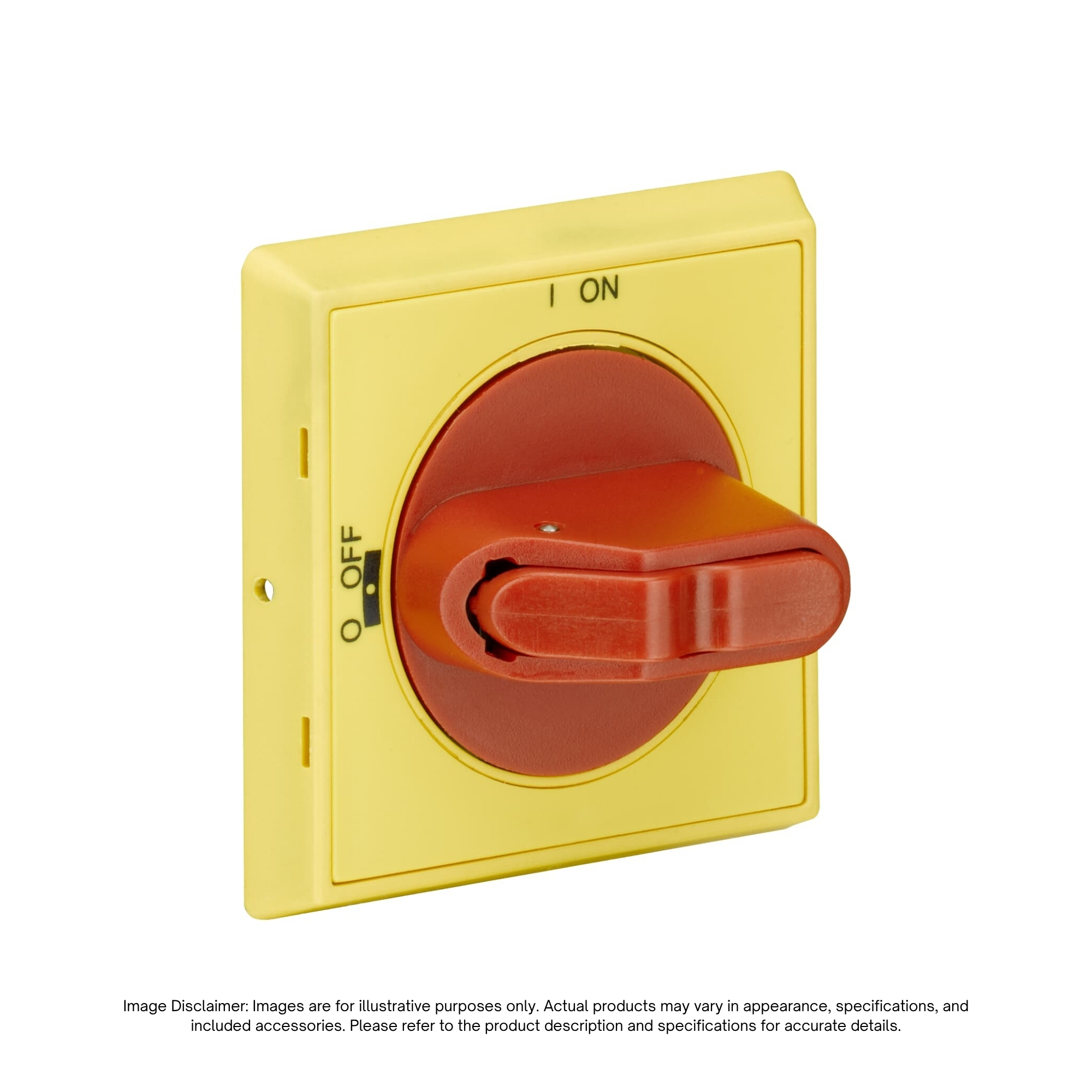

The ABB MSHD-LY Rotary Handle (1SAM201920R1002) is a robust door-coupling rotary handle engineered for operating rear-mounted manual motor starters from outside an enclosure or switch cabinet. Designed for seamless compatibility with ABB MS116, MS132, and MS165 manual motor starters, this yellow-and-black handle delivers reliable external control, enhanced safety, and clear status visibility.
Featuring an IP64 degree of protection against dust and water ingress, padlockable security in the OFF-position (supporting up to 3 padlocks), and compatibility with OXS6 extension shafts or MSOX driver shafts (from 6 mm up to 180 mm), the MSHD-LY ensures dependable performance in demanding industrial control panel applications.
Key Features
- External Enclosure Control: Enables safe operation of rear-mounted manual motor starters (MS116, MS132, MS165) from outside the switch cabinet door.
- Padlockable Security: Designed by default to be padlockable exclusively in the OFF-position using up to 3 padlocks for rigorous lockout/tagout compliance.
- IP64 Environmental Protection: Safeguards internal enclosure components against dust spray and moisture splashes.
- Shaft Compatibility: Works with OXS6 shafts ranging from 6 mm to 180 mm or MSOX driver shafts.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | MSHD-LY |
| Product ID (SKU) | 1SAM201920R1002 (ABBMSHDLY) |
| Brand / Manufacturer | ABB |
| Product Type | Door Coupling Rotary Handle |
| Color | Yellow / Black |
| Degree of Protection | IP64 |
| Padlock Capability | OFF-Position (Max. 3 Padlocks) |
| Compatible Starters | MS116, MS132, and MS165 Manual Motor Starters |
| Compatible Shafts | OXS6 (6 mm up to 180 mm) or MSOX Driver Shafts |
| Dimensions (H x W x D) | 65.5 mm x 65.6 mm x 57.9 mm |
| Product Weight | 0.065 kg |
| Tightening Torque | 0.12 N·m (1.06 in·lb) |
