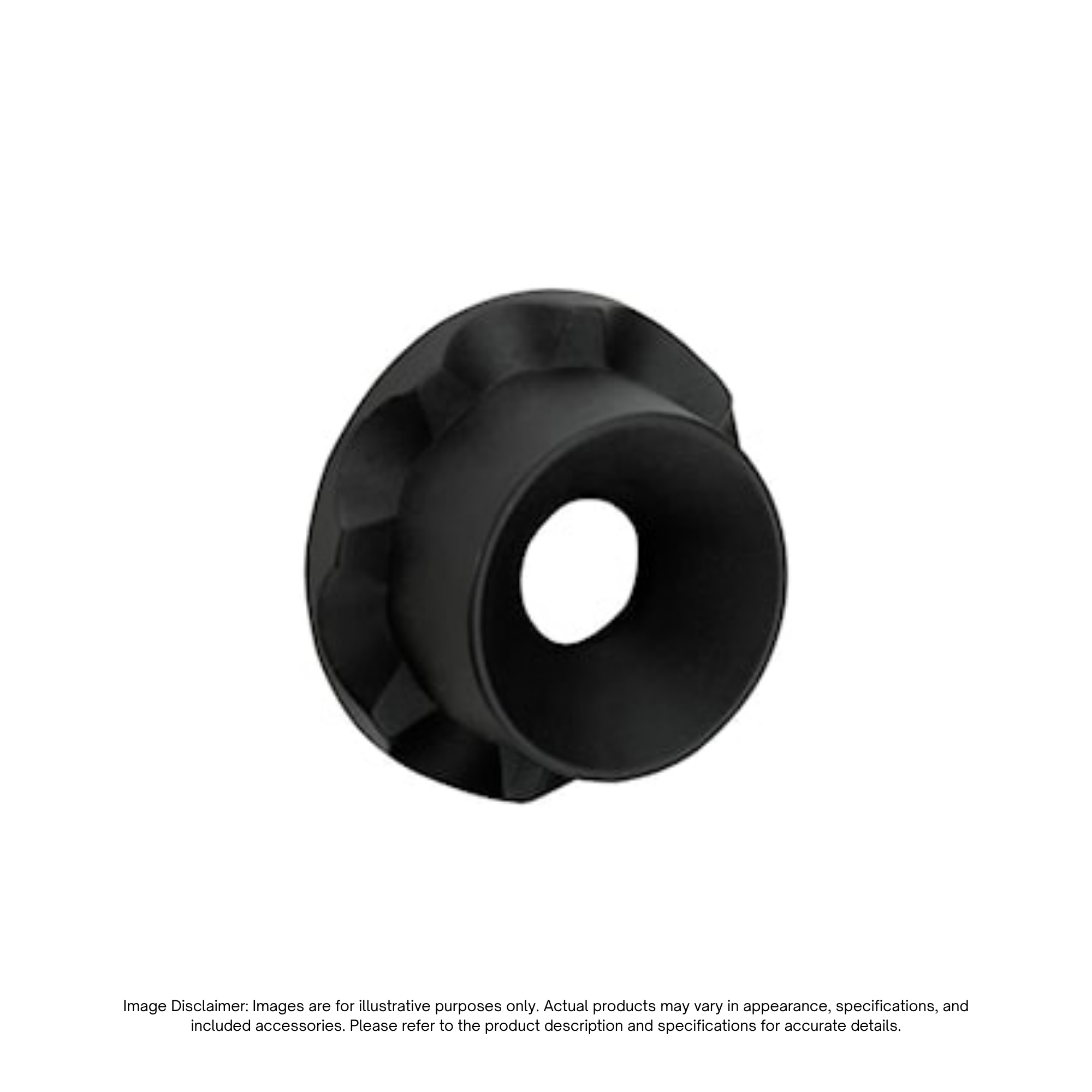

MSH-AR – ABB | MSH AR SHAFT ALIGNMENT RING

Description

The ABB MSH-AR Shaft Alignment Ring (1SAM201920R1000) is an essential door coupling accessory engineered to support and guide extension shafts for manual motor starters. Designed for seamless compatibility with MSHD and MSH handles, the MSH-AR assists in aligning long OXS6 shafts to the handle inlet when operating ABB MS116, MS132, or MS165 manual motor starters mounted at the rear of a switch cabinet.

This alignment ring is mandatory for the proper installation and stabilization of shafts longer than 105 mm (up to a maximum shaft length of 180 mm). By ensuring precise mechanical alignment and smooth rotational operation from outside the enclosure, the MSH-AR guarantees reliable external control panel actuation.

Key Features

Shaft Alignment Support: Guides and aligns OXS6 extension shafts directly into the handle inlet for rear-mounted switch cabinet configurations.
Mandatory for Long Shafts: Required for the correct and stable operation of shafts exceeding 105 mm in length (up to 180 mm max).
Handle Compatibility: Specifically engineered for use with ABB MSHD and MSH door-coupling rotary handles.
Starter Compatibility: Supports door coupling solutions for ABB MS116, MS132, and MS165 manual motor starters.
