Description

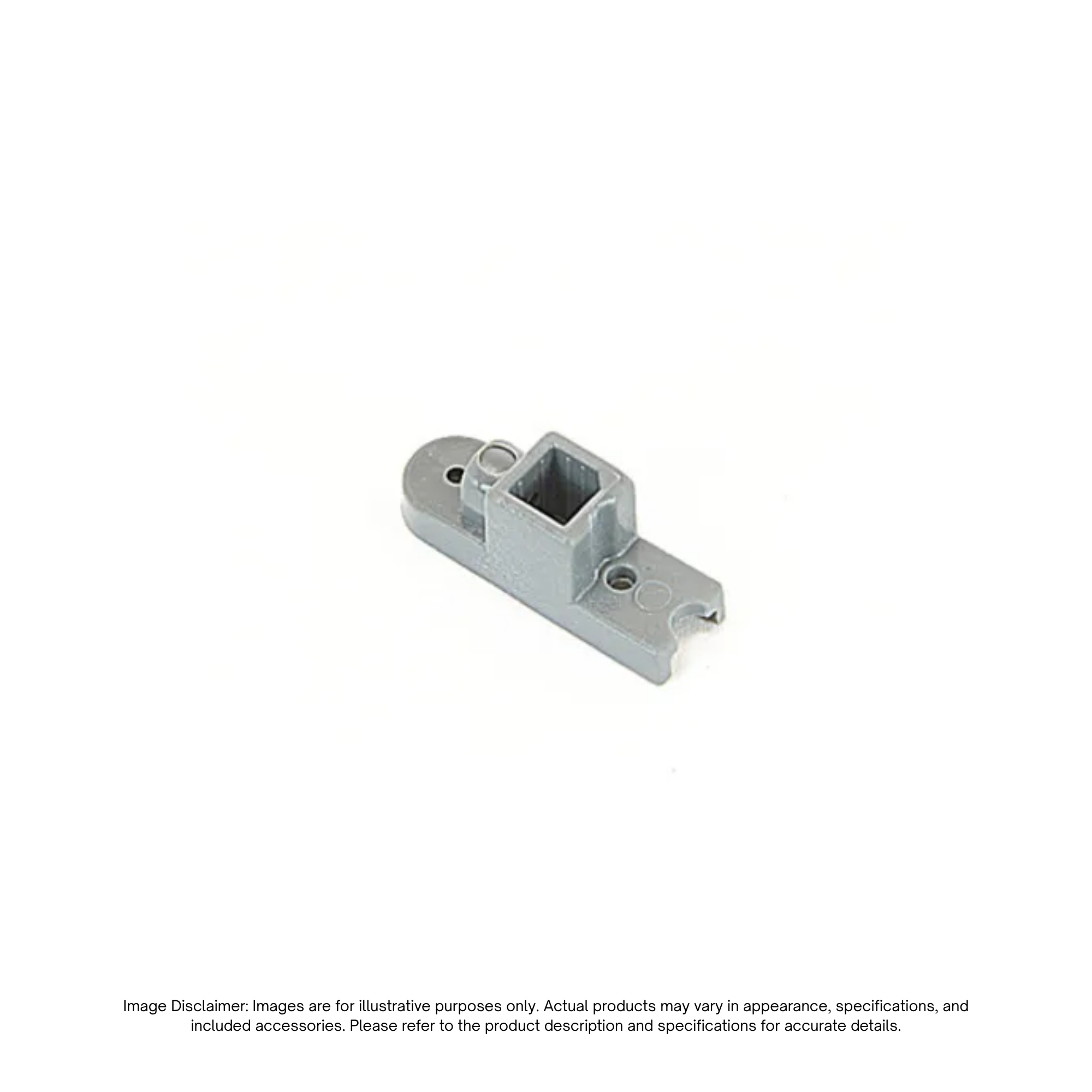

The ABB MS132-MSMN Coded Shaft Coupler with Screw (1SAM101923R0002) is an essential accessory engineered for connecting manual motor starters to door-mounted rotary handles. Specifically designed for compatibility with ABB MS116, MS132, MS45X, and MS49X manual motor starters, this coupler ensures reliable alignment and secure mechanical operation in control panel assemblies.
Featuring a precision 6 mm shaft interface, a durable coded design, and compact dimensions (12.5 mm H x 10 mm W x 31.2 mm D), the MS132-MSMN provides seamless integration for external enclosure handles. Its robust construction and secure screw-fixing mechanism guarantee dependable performance and easy installation in demanding industrial applications.
Key Features
- Wide Compatibility: Engineered for use with ABB MS116, MS132, MS45X, and MS49X series manual motor starters.
- Precision Coded Design: Ensures proper alignment and secure mechanical coupling between the motor starter and door-mounted operator handles.
- Compact Dimensions: Space-saving profile measuring 12.5 mm H x 10 mm W x 31.2 mm D with a 6 mm shaft connection.
- Secure Installation: Supplied with a fixing screw designed for a 0.12 N-m tightening torque to prevent slip during operation.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | MS132-MSMN |
| Product ID (SKU) | 1SAM101923R0002 |
| Brand / Manufacturer | ABB |
| Product Type | Coded Shaft Coupler with Screw |
| Shaft Diameter | 6 mm |
| Tightening Torque | 0.12 N-m |
| Dimensions (H x W x D) | 12.5 mm x 10 mm x 31.2 mm |
| Suitable For Use With | MS116, MS132, MS45X, and MS49X Manual Motor Starters |
