Description

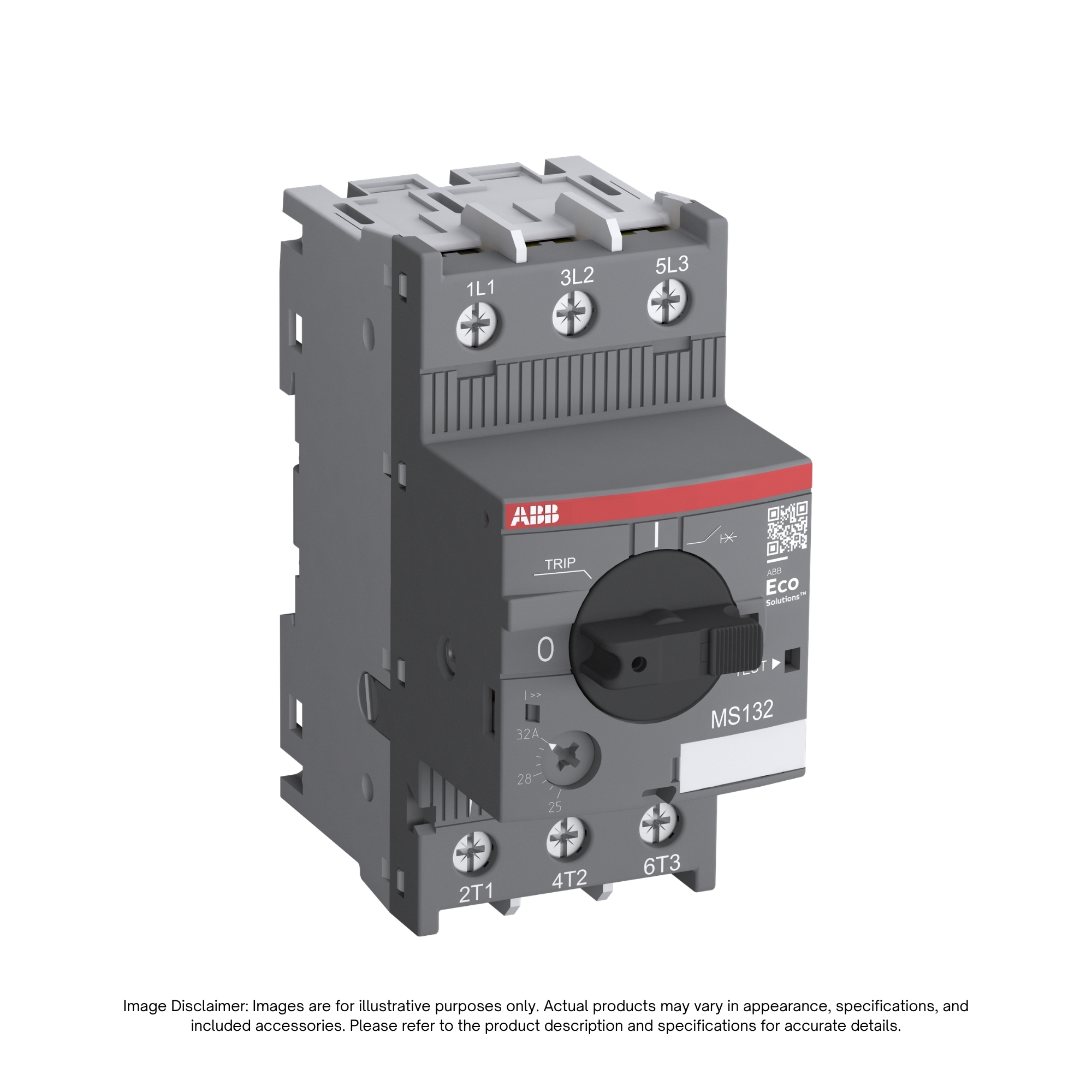

The ABB MS132-12 Manual Motor Starter (1SAM350000R1012) is a compact, high-performance motor protection circuit breaker engineered for reliable manual switching and advanced motor protection. With a rated operational current range of 8.0 to 12.0 A, this 45 mm wide device safeguards three- and single-phase motors against overloads, short-circuits, and phase failures without requiring supplementary fuses.
Featuring a high rated service short-circuit breaking capacity of 100 kA at 400 VAC, trip class 10 operation, built-in temperature compensation, and a lockable rotary handle with clear switch position indication, the MS132-12 delivers exceptional operational safety and system reliability. Its versatile design supports a complete ecosystem of snap-on accessories, including auxiliary contacts, signaling contacts, bus bars, and in-feed blocks.
Key Features
- Comprehensive Motor Protection: Delivers fusefree protection against short-circuits, thermal overloads, and phase losses.
- High Breaking Capacity: Provides a market-leading rated service short-circuit breaking capacity (Ics) of 100 kA at 400 VAC.
- Compact 45 mm Profile: Saves panel space with a standardized, compact footprint suitable for DIN-rail mounting.
- Advanced Operational Controls: Equipped with a trip-free mechanism, built-in disconnect function, lockable rotary handle, and temperature compensation.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | MS132-12 |
| Product ID (SKU) | 1SAM350000R1012 |
| Brand / Manufacturer | ABB |
| Product Type | Manual Motor Starter (Motor Protection Circuit Breaker) |
| Rated Operational Current (Ie) | 8.0 … 12 A |
| Short-Circuit Breaking Capacity (Ics) | 100 kA at 400 VAC |
| Trip Class | Class 10 |
| Device Width | 45 mm |
| Application Suitability | Three-phase and Single-phase Applications |
| EAN | 4013614400124 |
