Description

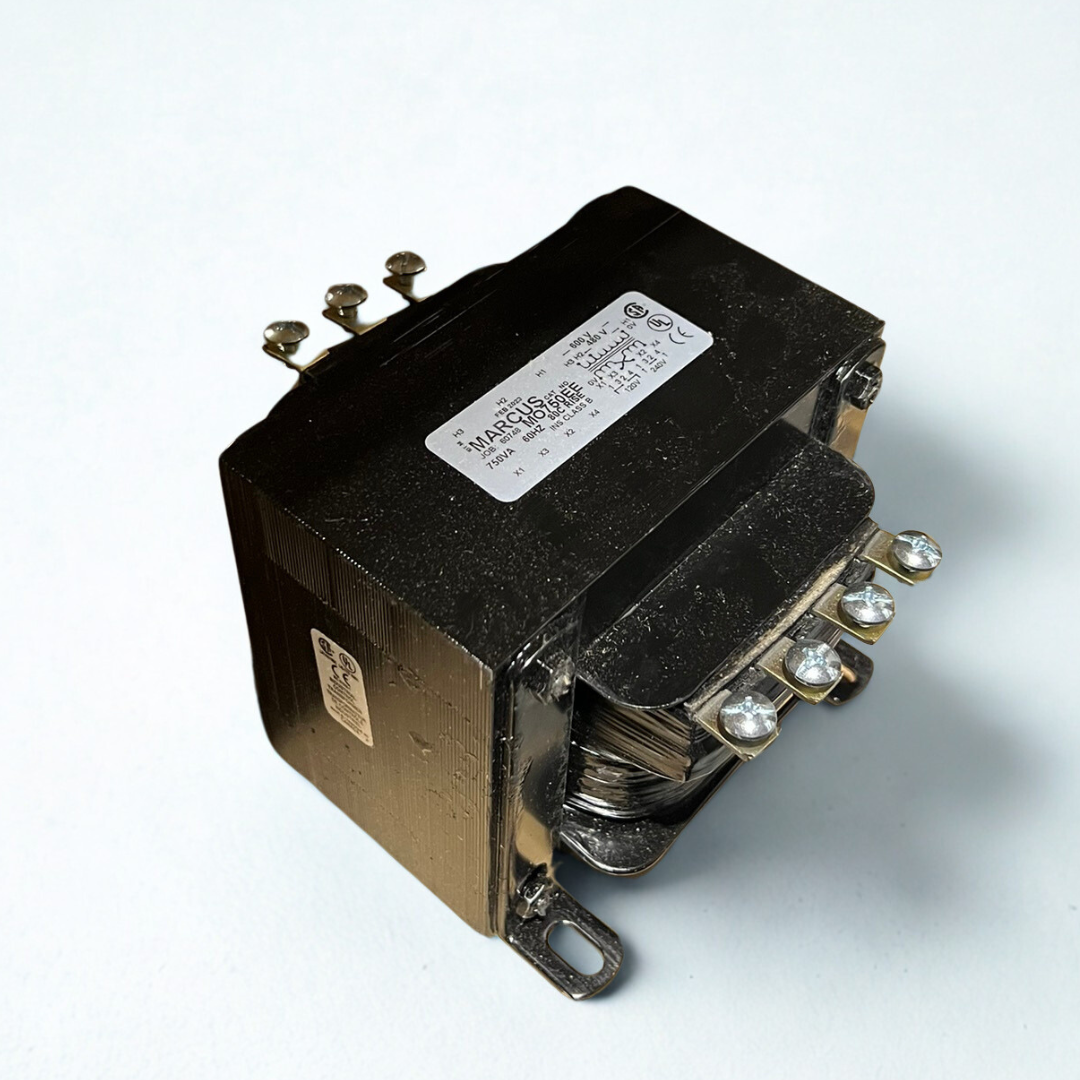

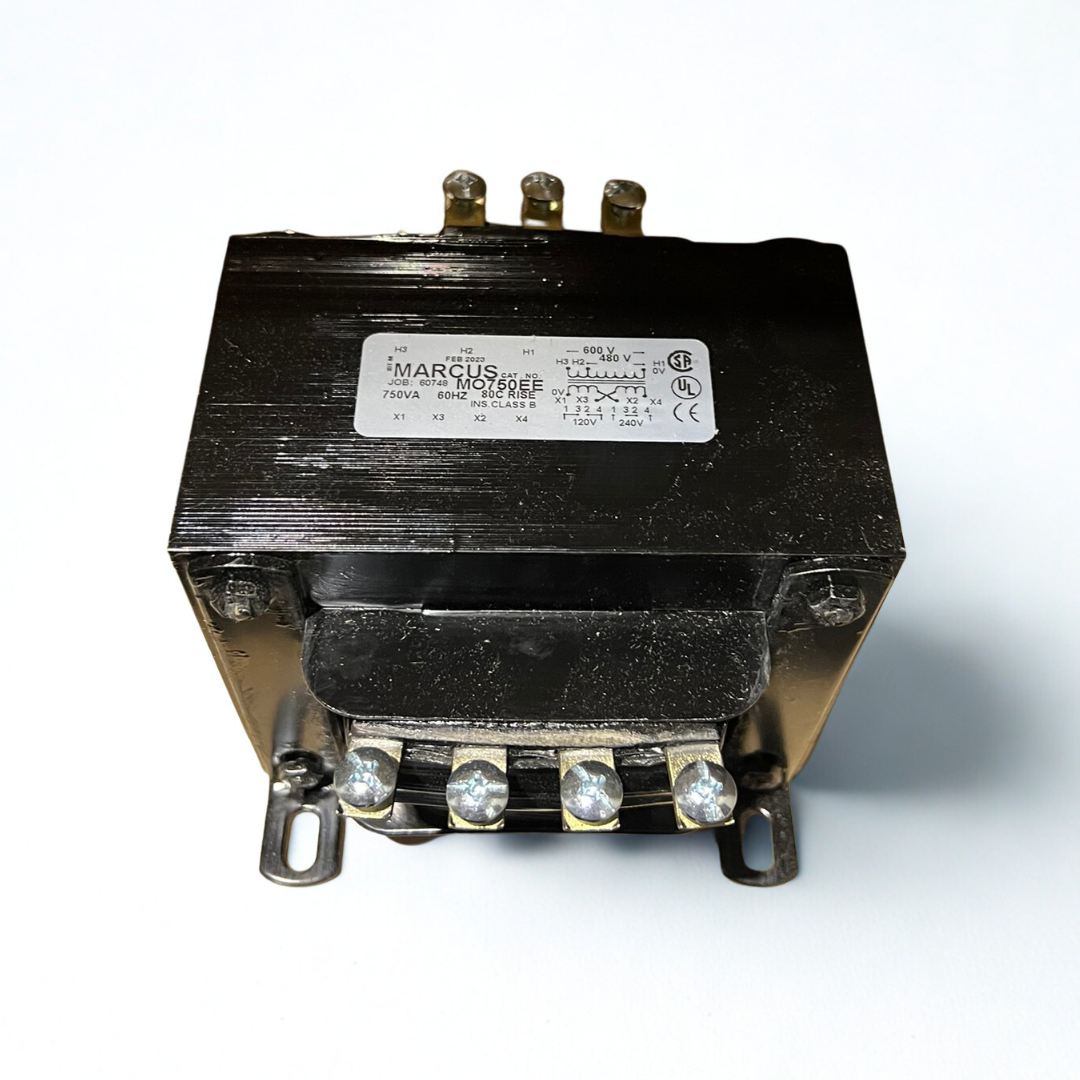

Marcus Transformers combine compact design, rugged construction, and superior thermal performance to deliver reliable power conversion for a wide range of applications. Each unit is built with heat‐proof insulation and bobbin‐wound coils for greater efficiency and exceptional heat evacuation, ensuring long service life even under continuous load. Solidly fixed terminals with standard combination screw connections simplify installation, while clear polarity markings help eliminate wiring errors. Designed for versatility, Marcus Transformers can be mounted either vertically or horizontally and are CSA-certified, UL-listed, and CE-verified (up to 5000 VA). Whether you’re supplying panels, switchgear, motors, solenoids, or OEM equipment, Marcus Transformers offer dependable performance in a compact footprint.
Key Features
- Solidly fixed terminals with standard combination screw connections for easy wiring
- Heat-proof insulation throughout for compact size and extended life
- Additive polarity markings on all terminals to eliminate wiring errors
- Multi-voltage primary and secondary options available, expanding applicability per unit
- Coil bobbin winding for improved efficiency and superior heat evacuation
- Can be mounted vertically or horizontally to suit installation needs
- CSA Certified and UL Listed for safety and reliability
- CE verified on units up to 5000 VA for international compliance
Specifications
| Specification | Details |
|---|---|
| Model | MO750EE |
| Type | Open |
| VA Rating | 750 VA |
| Primary Voltage | 480 V / 600 V |
| Secondary Voltage | 120 V / 240 V |
| Input/Output Amps | 0.05 A / 0.04 A / 0.21 A / 0.10 A |
| Frequency | 50 Hz / 60 Hz |
| Insulation Class | Class B (130 °C) |
| Temperature Rise | 80 °C |
| Polarity | Additive |
| Noise Level | < 40 dB |
| Winding Material | Copper |
| Phase | Single-Phase |
| Mounting Orientation | Vertical or Horizontal |
| Mounting Hole Size | 0.28 in × 0.560 in |
| Dimensions (L × W × H) | 5.25 in × 6 in × 4.38 in (133.4 mm × 152.4 mm × 111.3 mm) |
| Approvals | CE Compliant, UL Listed, CSA Approved |
| Applications | Panels, Switch Gear, Motors, Solenoids, OEMs |
