Description

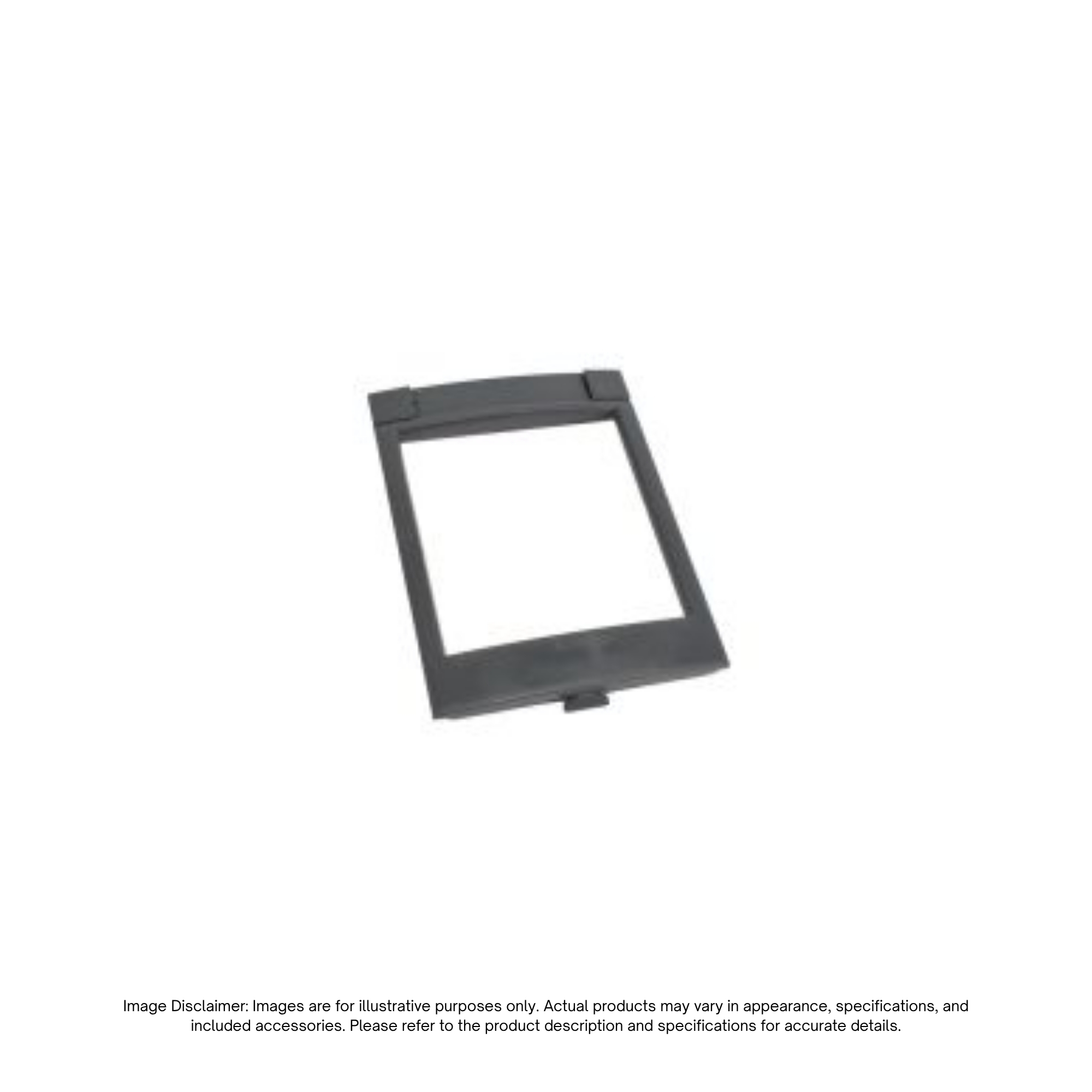

The ABB KXTAEFLARHDFP (Manufacturer Part Number: KXTAEFLARHDFP) is a flange and compartment door rotary handle operating mechanism accessory designed specifically for ABB SACE Tmax XT1, XT2, XT3, and XT4 molded case circuit breakers. Engineered for fixed and plug-in (F/P) mounting configurations, this mechanical operator kit enables secure, external door-mounted manual control and precise alignment across enclosures.
Part of ABB’s advanced Tmax XT accessories lineup, this hardware kit ensures professional panel finishing, reliable mechanical linkage, and compliance with stringent industrial safety standards in commercial and industrial power distribution systems.
Key Features
- Flange & Door Operating Mechanism: Provides external door-mounted rotary handle control for internal circuit breakers, improving operator safety.
- Broad Frame Compatibility: Engineered for versatile use across ABB SACE Tmax XT1, XT2, XT3, and XT4 molded case circuit breakers.
- Fixed & Plug-In Support: Designed to accommodate both fixed and plug-in breaker mounting configurations.
- Robust Industrial Construction: Manufactured with high-strength materials to withstand frequent mechanical operation in demanding environments.
- IEC Certified Quality: Built to rigorous international standards for reliable performance in industrial switchgear and control panels.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Type / Model | KXTAEFLARHDFP / Tmax XT Series Accessory |
| Brand / Manufacturer | ABB |
| Manufacturer Part Number (MPN) | KXTAEFLARHDFP |
| Device Type | Flange and Door Rotary Handle Mechanism Kit |
| Compatible Breaker Series | ABB SACE Tmax XT1, XT2, XT3, and XT4 (Fixed / Plug-In) |
| Standards & Approvals | IEC |
| Primary Applications | Industrial control panels, electrical switchgear, enclosure door operators, and motor control centers |
