Description

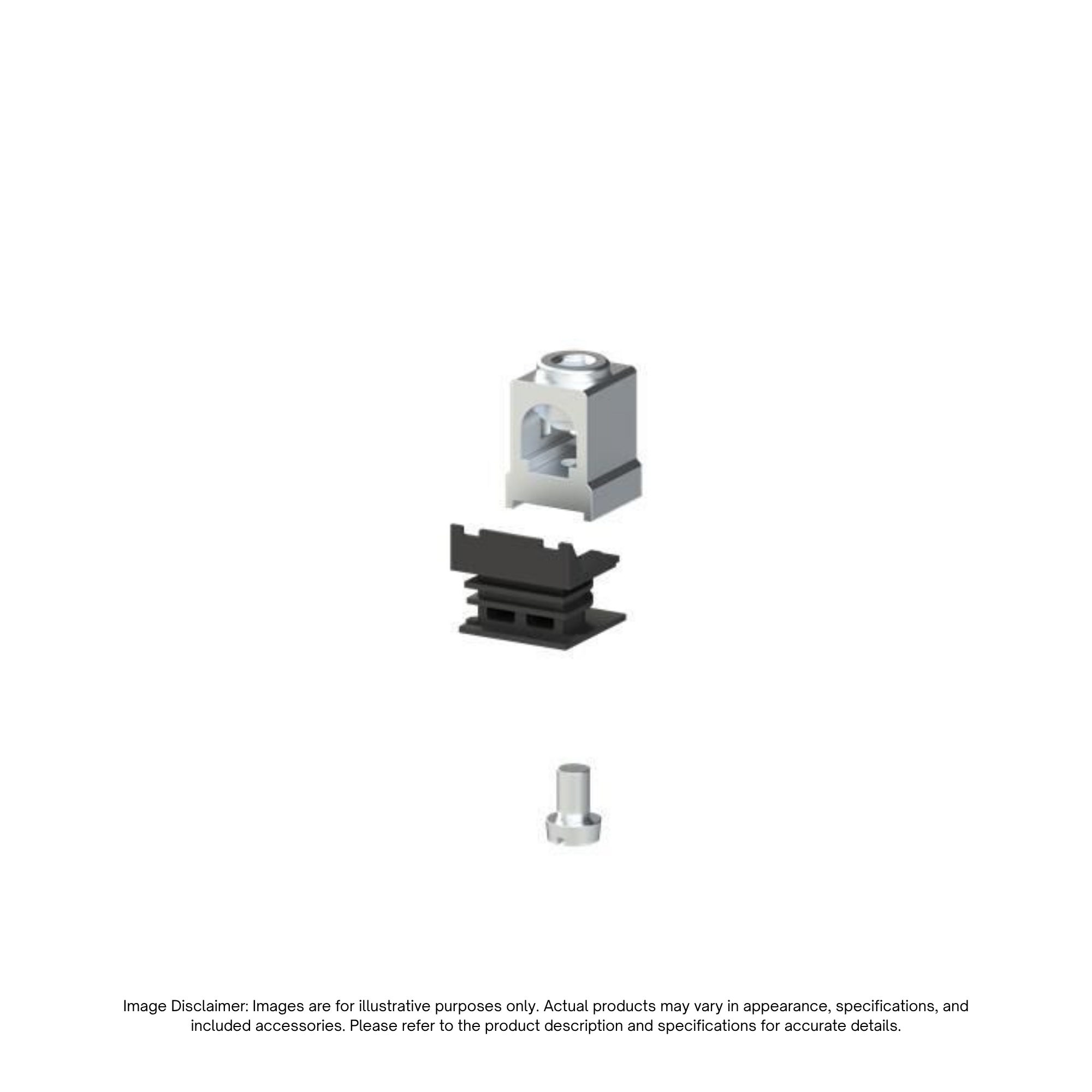

The ABB SACE® Tmax XT2 Terminal Lug Kit (MPN: KXT2CUAL1-3PC) is a high-performance terminal connection accessory designed specifically for ABB SACE® Tmax XT2 molded case circuit breakers (MCCBs). This front cable lug kit enables secure, direct connection of aluminum and copper conductors rated up to 110 A to the circuit breaker terminals.
Engineered to accommodate wire sizes from 14 to 1/0 AWG (2.5 to 50 sq-mm), the KXT2CUAL1-3PC kit includes a set of 3 terminal lugs to fully equip line or load side connections for 3-pole breaker installations. Built with heavy-duty conductive materials and secure clamping hardware, it ensures low-resistance power transmission, long-term connection stability, and simplified panel wiring.
Key Features
- SACE® Tmax XT2 Compatibility: Specifically engineered to fit ABB SACE® Tmax XT2 frame molded case circuit breakers.
- Dual Material Rated (Cu/Al): Approved for connecting both aluminum and copper cables up to 110 A.
- Wide Conductor Range: Accepts power cables from 14 to 1/0 AWG (2.5 to 50 sq-mm) for flexible electrical wiring.
- Complete 3-Piece Set: Includes 3 cable terminal lugs to equip line or load side connections on 3-pole circuit breakers.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model / MPN | KXT2CUAL1-3PC |
| Brand / Manufacturer | ABB |
| Product Line / Series | SACE® Tmax XT Series |
| Product Type | Front Cable Terminal Lug Kit (FC CuAl) |
| Compatibility | SACE® Tmax XT2 Molded Case Circuit Breaker |
| Conductor Range | 14 to 1/0 AWG (2.5 to 50 sq-mm) |
| Conductor Material / Current Rating | Aluminum / Copper (Up to 110 A) |
| Quantity Included | 3 Pieces |
