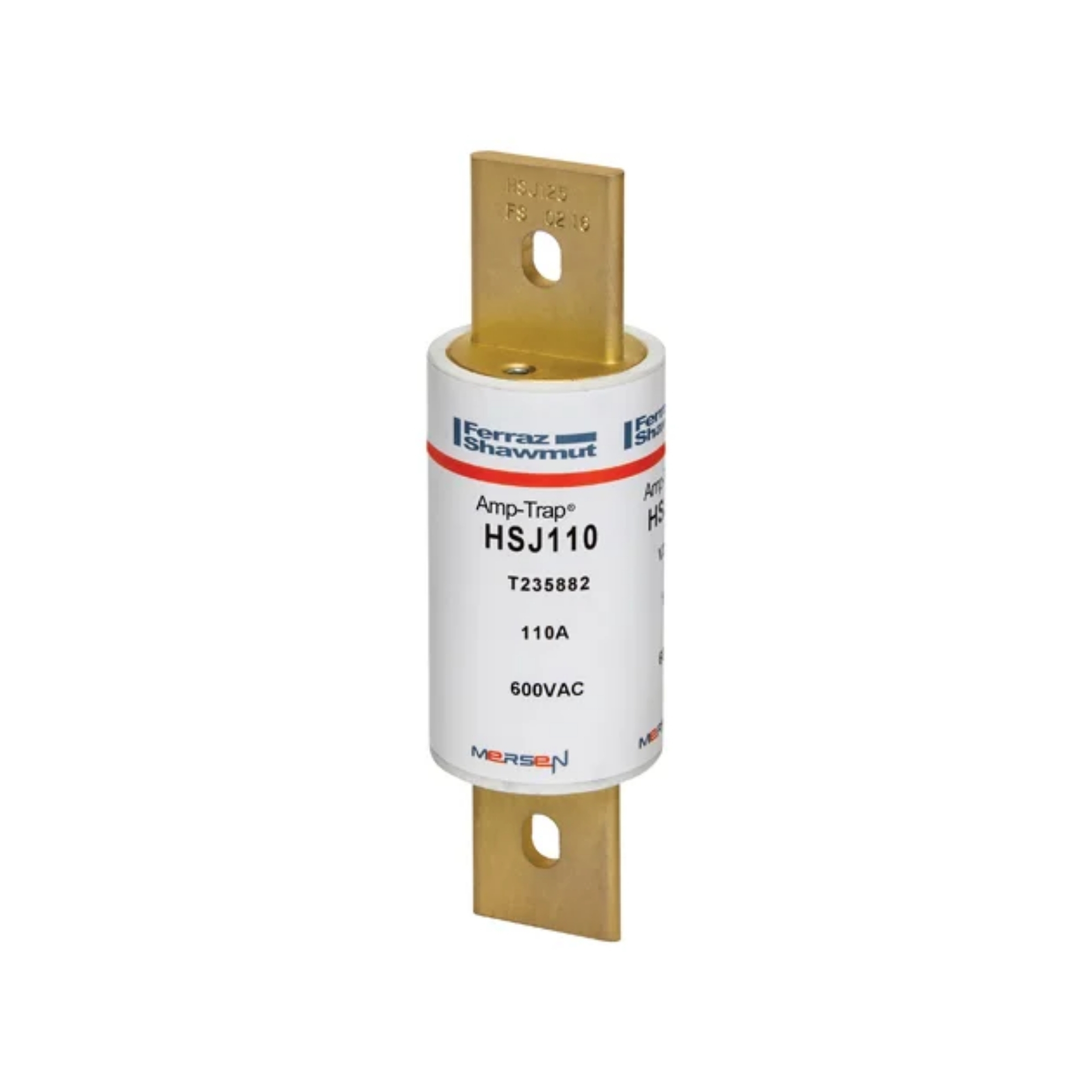

HSJ110 – Mersen | 600V 110A CLASS J HS FUSE

Description

The Mersen HSJ110 is an advanced 110A high-speed Class J fuse from the Amp-Trap® HSJ series, engineered to combine strict UL branch-circuit performance with exceptionally low $I^2t$ semiconductor protection. Rated for 600 VAC and 500 VDC, it protects sensitive power electronics such as diodes, SCRs, GTOs, and solid-state relays while satisfying standard NEC feeder and branch circuit requirements.

Featuring a robust blade-type terminal design with brass connections, the HSJ110 offers a high-breaking interrupting capacity of up to 200 kA. Built with a durable GMG body, it measures 1.63″ in diameter and 5.75″ in length (41.3 x 146 mm) and is designed for standard clip mounting.

Key Features

• Dual Protection Performance: Combines low $I^2t$ semiconductor protection with standard UL Class J branch-circuit performance into a single compact fuse.
• High Voltage Ratings: Certified for up to 600 VAC and 500 VDC to accommodate demanding AC and DC power distribution architectures.
• Exceptional Interrupting Capacity: Provides up to 200 kA AC max breaking capacity (I.R.) for superior fault clearance.
• Brass Terminals: Blade-type connections ensure low resistance, excellent thermal conductivity, and long-term corrosion resistance.
• Semiconductor & Branch Safe: Ideal for safeguarding power electronics (SCRs, diodes, SSRs) while complying with NEC installation standards.
