Description

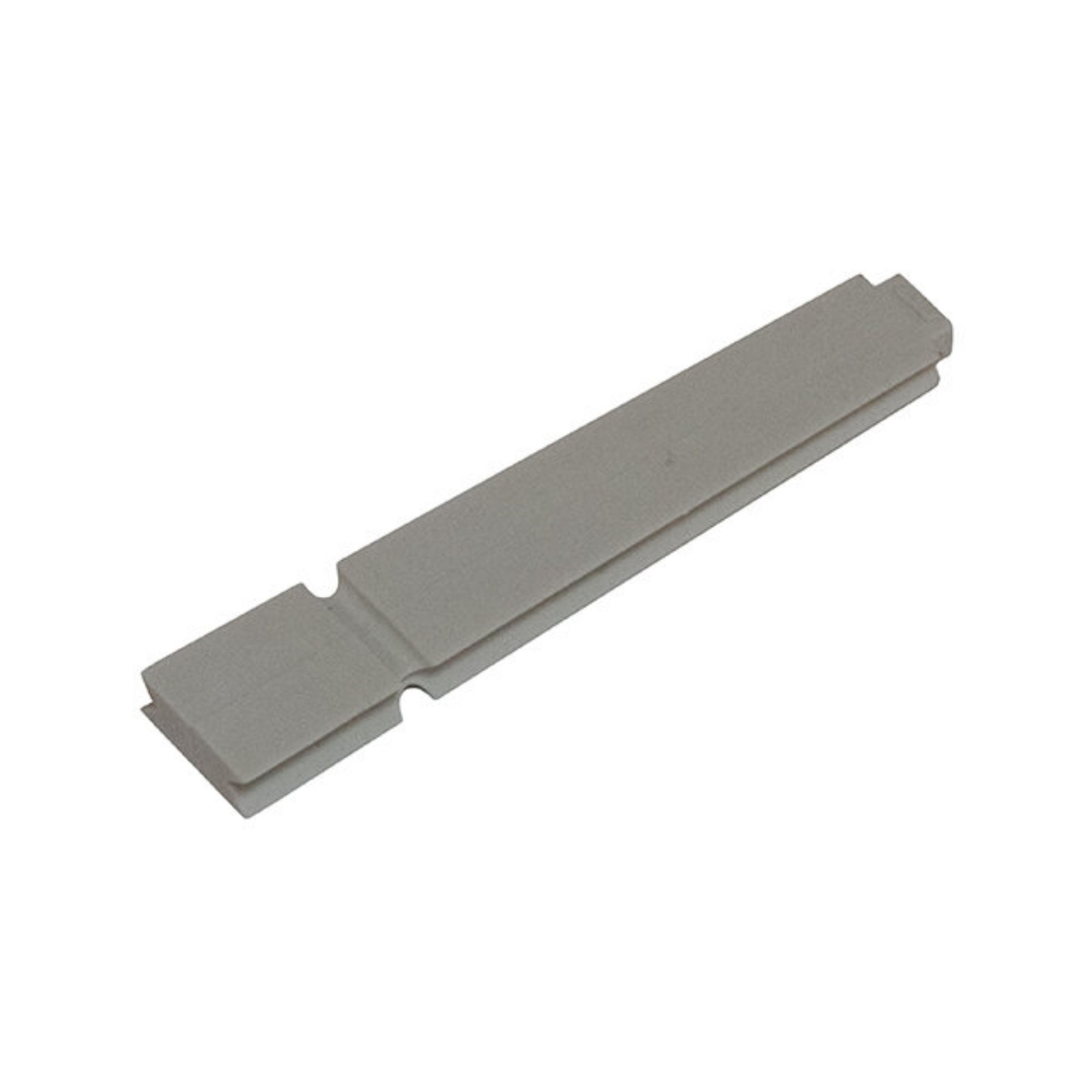

The Mersen FSPIN1 is a multiple-pole assembly pin designed specifically for the FSPDB series of UL 1059 finger-safe power distribution blocks. It enables secure, modular multi-pole panel mounting when configuring custom power distribution layouts, allowing technicians to seamlessly join individual single-pole blocks into multi-pole assemblies.
Engineered for 50/60 Hz systems, the FSPIN1 facilitates rapid installation while maintaining the robust structural alignment of your power distribution setup. It measures 0.14″ x 2.05″ x 0.14″ (3.6 x 52.1 x 3.6 mm) and is fully RoHS compliant.
Key Features
- Modular Multi-Pole Assembly: Joins individual single-pole FSPDB blocks together to form custom multi-pole configurations.
- Secure Mechanical Alignment: Ensures rigid physical stability and alignment across multi-pole panel-mounted blocks.
- Streamlined Installation: Designed to integrate seamlessly with the snap-on DIN rail and panel-mounting architecture of the FSPDB line.
- Global Standards Compliance: Fully RoHS compliant fastening hardware.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | FSPIN1 |
| Brand | Mersen (FSPDB Series) |
| Product Type | Power Distribution Block Assembly Pin |
| Frequency | 50/60 Hz |
| Short Circuit Rating | 10 kA (Standalone) |
| Dimensions | 3.6 x 52.1 x 3.6 mm (0.14 x 2.05 x 0.14 in) |
| Standards & Certifications | RoHS Compliant |
| Primary Applications | Fastening hardware for assembling multi-pole configurations of Mersen FSPDB finger-safe power distribution blocks |
