Description

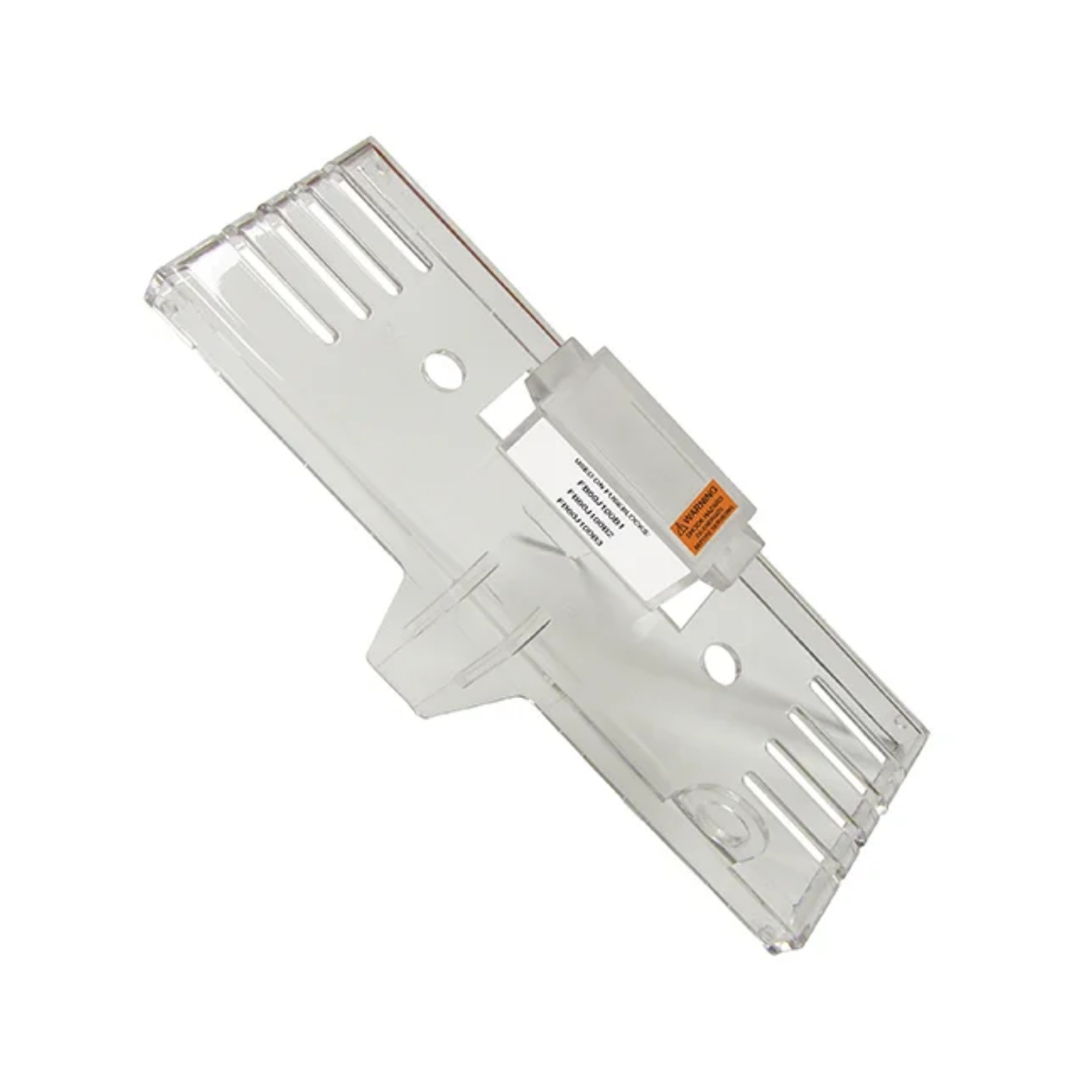

The Mersen FBC60J100I is a Generation 2 safety dead-front cover designed for 100A, 600V Class J fuse blocks. Engineered to enhance panel safety, this IP20-rated cover features an integrated indication system to easily verify fuse status while preventing accidental contact with live electrical components.
Constructed from durable insulating materials, the cover measures 1.72″ x 4.95″ x 2.01″ (43.7 x 125.7 x 51.1 mm) and is optimized for Mersen’s compact Gen2 open-style fuse holders. It supports 50/60 Hz systems and is fully RoHS compliant.
Key Features
- IP20 Finger-Safe Protection: Shields live terminals and fuses to protect personnel against accidental contact.
- Integrated Indication System: Built-in visual indicator provides a clear, immediate way to check fuse status.
- Gen2 Compatibility: Tailored specifically for Mersen Generation 2 Class J fuse blocks (up to 100A range).
- Durable Construction: High-strength molded body engineered for superior thermal and mechanical resilience.
- Compact Footprint: Designed to snap seamlessly onto modular fuse bases without increasing panel space requirements.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | FBC60J100I |
| Brand | Mersen (Gen2 / DFC Series) |
| Product Type | Safety Dead-Front Cover with Indication |
| Voltage Rating | 600 V (AC/DC) |
| Ampere Rating | 100 A |
| Fuse Class | Class J |
| Indication System | Yes (Blown Fuse Indicator) |
| Number of Poles | 1-Pole |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Frequency | 50/60 Hz |
| Dimensions | 43.7 x 125.7 x 51.1 mm (1.72 x 4.95 x 2.01 in) |
| Standards & Certifications | RoHS Compliant, IP20 Finger-Safe |
| Primary Applications | Safety cover accessory for Mersen Generation 2 Class J 100A fuse blocks |
