DVTW0200E – MTE | dV E-Series, 208-600V, 200A, 2-4kHz, NEMA 3R

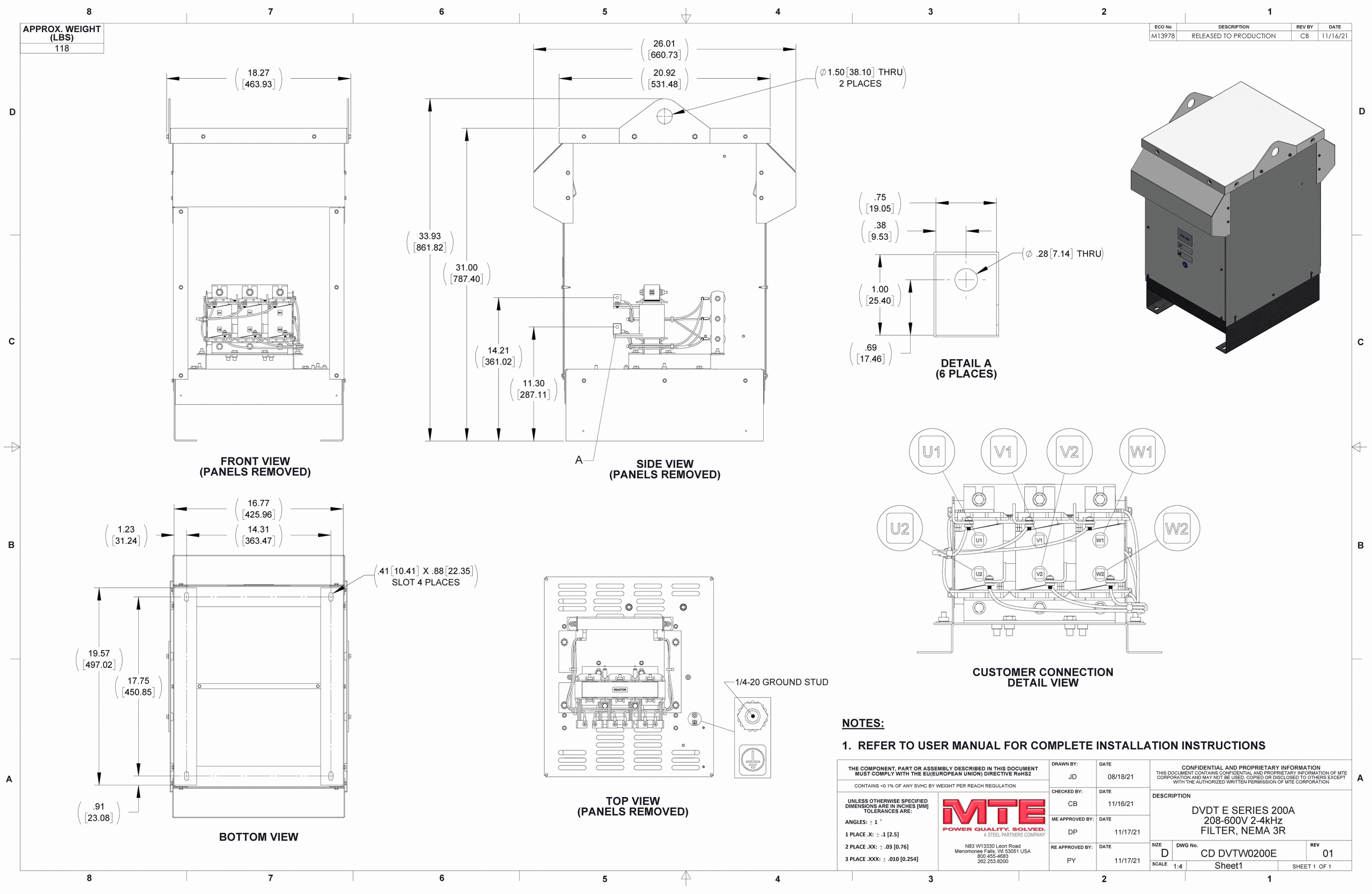

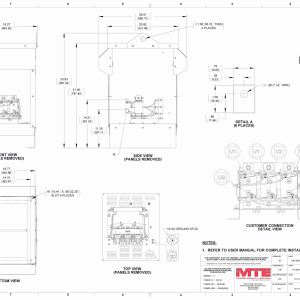

Description

The MTE dV E-Series dV/dt motor protection filters are engineered to provide robust protection for motors operating in variable torque AC variable frequency drive (VFD) applications. These filters ensure uninterrupted operation by mitigating reflective waves, reducing rise time, and safeguarding against peak voltage, thereby extending motor lifespan and minimizing operational disruptions. With a focus on efficiency and compactness, the dV E-Series offers significant energy savings and a smaller footprint while maintaining high-performance standards.

Key Features

• Triple Protection: Mitigates reflective waves, reduces rise time, and protects against peak voltage.
• Efficiency: Up to 60% more efficient compared to competitors, resulting in lower operating costs and improved thermal management.
• Compact Design: Up to 73% lighter and 35% smaller footprint for easier installation and handling.
• Ease of Installation: Compatible with various mounting options including Kit, Open Panel, NEMA 1/2, and NEMA 3R.
• Quiet Operation: Operates silently, ensuring a conducive working environment.

Specifications

• Service Load Condition: Inverter Duty Three Phase Motors
• Voltage: 208 – 600 VAC +/- 10%, 60Hz
• Input Voltage Wave Form: PWM
• Inverter Switching Frequency: 2kHz – 4kHz (3A – 750A)
• Inverter Operating Frequency: 0-60Hz without derating
• Maximum Ambient Temperature:
  • -40°C to +60°C (modular filter)
  • -40°C to +50°C (enclosed filter)
  • -40°C to +90°C (storage)
• Insulation System: Class N (200°C)
• Insertion Loss (Voltage): 1.7% at 60 Hz
• Efficiency: Greater than 99%
• Current Range: 3A – 750A
• Altitude without derating: Up to 6,600 feet above sea level
• Maximum Motor Lead Length: 1,000 feet (VFD rated cable recommended)
• Relative Humidity: 0% to 99% non-condensing
• Current Rating:
  • 100% RMS Continuous
  • 150% for 1 minute
  • 200% for 10 seconds
• Audible Noise: Less than 65 dB at 1 meter
• Rise Time: Greater than 0.1 µs
• Peak Voltage @ Motor: Limited to 150% of DC bus voltage up to 1,000 feet

Additional Information

• Manufacturer Part Number: DVTW0200E
• Item Number: DVTW0200E
• Manufacturer: MTE Corporation
• Product Series: dv E
• Family Series: MTE Line Reactors, dv E Series
• Enclosed Unit: Yes
• Current Rating: 200 A
• HP @ 240 VAC: 75 hp
• HP @ 480 VAC: 150 hp
• HP @ 575 VAC: 200 hp
• HP @ 600 VAC: 200 hp
• Terminals: Wire Leads
• Mounting: Surface
• NEMA Rating: NEMA 3R
• Approvals: CE, cULus
