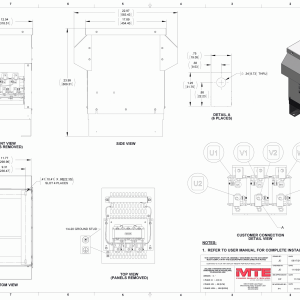

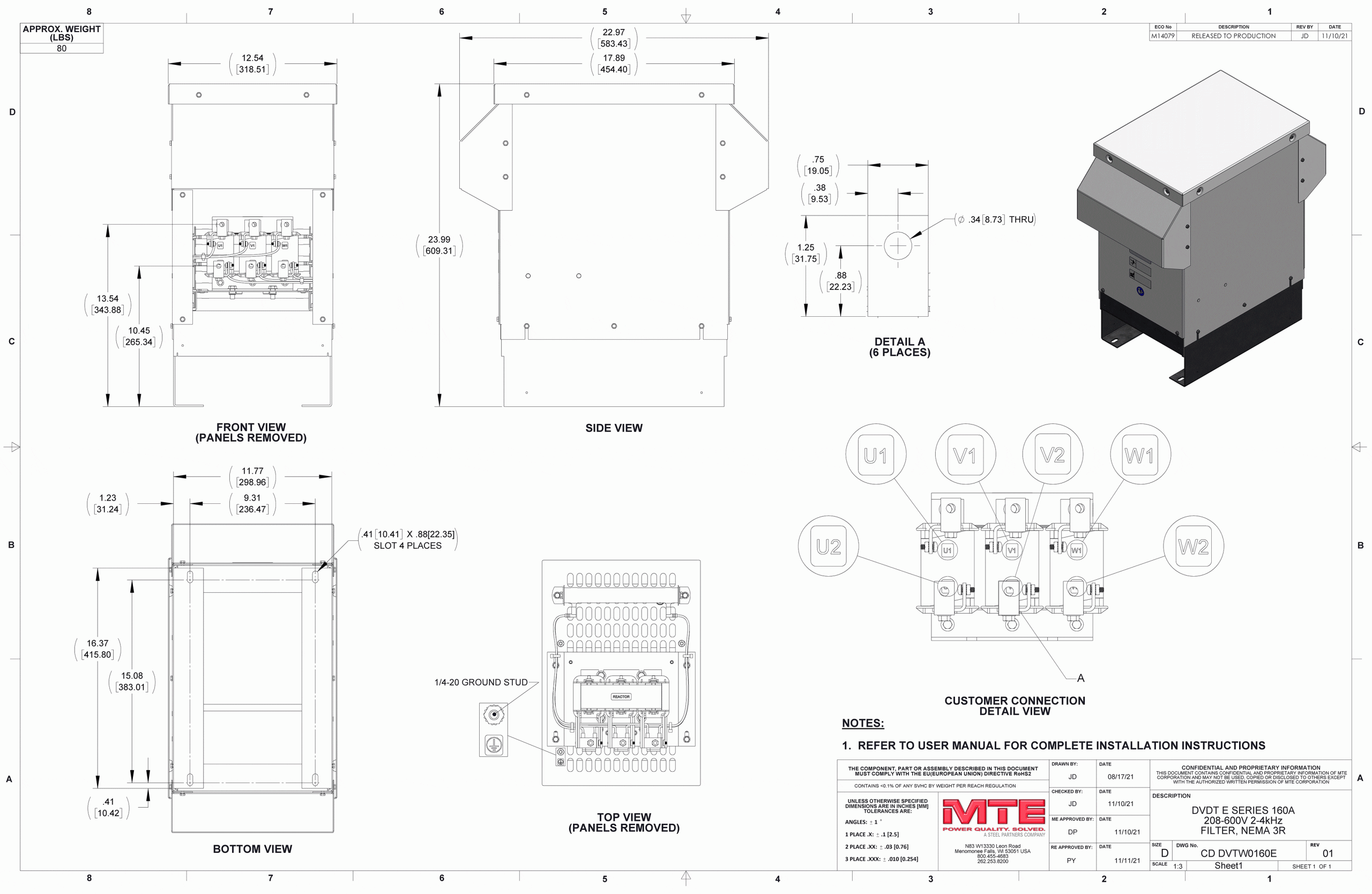

DVTW0160E – MTE | dV E-Series, 208-600V, 160A, 2-4kHz, NEMA 3R

$ 3,006.90

The MTE dV E-Series dV/dt motor protection filters are designed to provide comprehensive protection for motors operating in variable torque AC variable frequency drive (VFD) applications. These filters ensure reliable operation by mitigating reflective waves, reducing rise time, and protecting against peak voltage, thereby extending motor life and minimizing downtime. With a focus on efficiency and compactness, the dV E-Series offers substantial savings in energy costs and footprint while maintaining high performance standards.

Available on backorder

SKU: DVTW0160E Category: Tag:
Inquire

Description

The MTE dV E-Series dV/dt motor protection filters are designed to provide comprehensive protection for motors operating in variable torque AC variable frequency drive (VFD) applications. These filters ensure reliable operation by mitigating reflective waves, reducing rise time, and protecting against peak voltage, thereby extending motor life and minimizing downtime. With a focus on efficiency and compactness, the dV E-Series offers substantial savings in energy costs and footprint while maintaining high performance standards.

Key Features

  • Triple Protection: Mitigates reflective waves, reduces rise time, and protects against peak voltage.
  • Efficiency: Up to 60% more efficient than competitors, resulting in lower operating costs and cooler operation.
  • Compact Design: Up to 73% lighter and 35% smaller footprint for easier installation and handling.
  • Quiet Operation: Operates silently, enhancing workplace comfort.

Specifications

  • Service Load Condition: Inverter Duty Three Phase Motors
  • Voltage: 208 – 600 VAC +/- 10%, 60Hz
  • Input Voltage Wave Form: PWM
  • Inverter Switching Frequency: 2kHz – 4kHz (3A – 750A)
  • Inverter Operating Frequency: 0-60Hz without derating
  • Maximum Ambient Temperature:
    • -40°C to +60°C (modular filter)
    • -40°C to +50°C (enclosed filter)
    • -40°C to +90°C (storage)
  • Insulation System: Class N (200°C)
  • Insertion Loss (Voltage): 1.7% at 60 Hz
  • Efficiency: Greater than 99%
  • Current Range: 3A – 750A
  • Available Form Factors: Kit, Open Panel, NEMA 1/2, NEMA 3R
  • Altitude without derating: Up to 6,600 feet above sea level
  • Maximum Motor Lead Length: 1,000 feet (VFD rated cable recommended)
  • Relative Humidity: 0% to 99% non-condensing
  • Current Rating:
    • 100% RMS Continuous
    • 150% for 1 minute
    • 200% for 10 seconds
  • Audible Noise: Less than 65 dB at 1 meter
  • Rise Time: Greater than 0.1 µs
  • Peak Voltage @ Motor: Limited to 150% of DC bus voltage up to 1,000 feet

Additional Information

  • Manufacturer Part Number: DVTW0160E
  • Item Number: DVTW0160E
  • Manufacturer: MTE Corporation
  • Product Series: dv E
  • Family Series: MTE Line Reactors, dv E Series
  • Enclosed Unit: Yes
  • Current Rating: 160 A
  • HP @ 240 VAC: 60 hp
  • HP @ 480 VAC: 125 hp
  • HP @ 575 VAC: 150 hp
  • HP @ 600 VAC: 150 hp
  • Terminals: Wire Leads
  • Mounting: Surface
  • NEMA Rating: NEMA 3R
  • Approvals: CE, cULus
Weight 80 lbs
Dimensions 24 × 13 × 23 in
