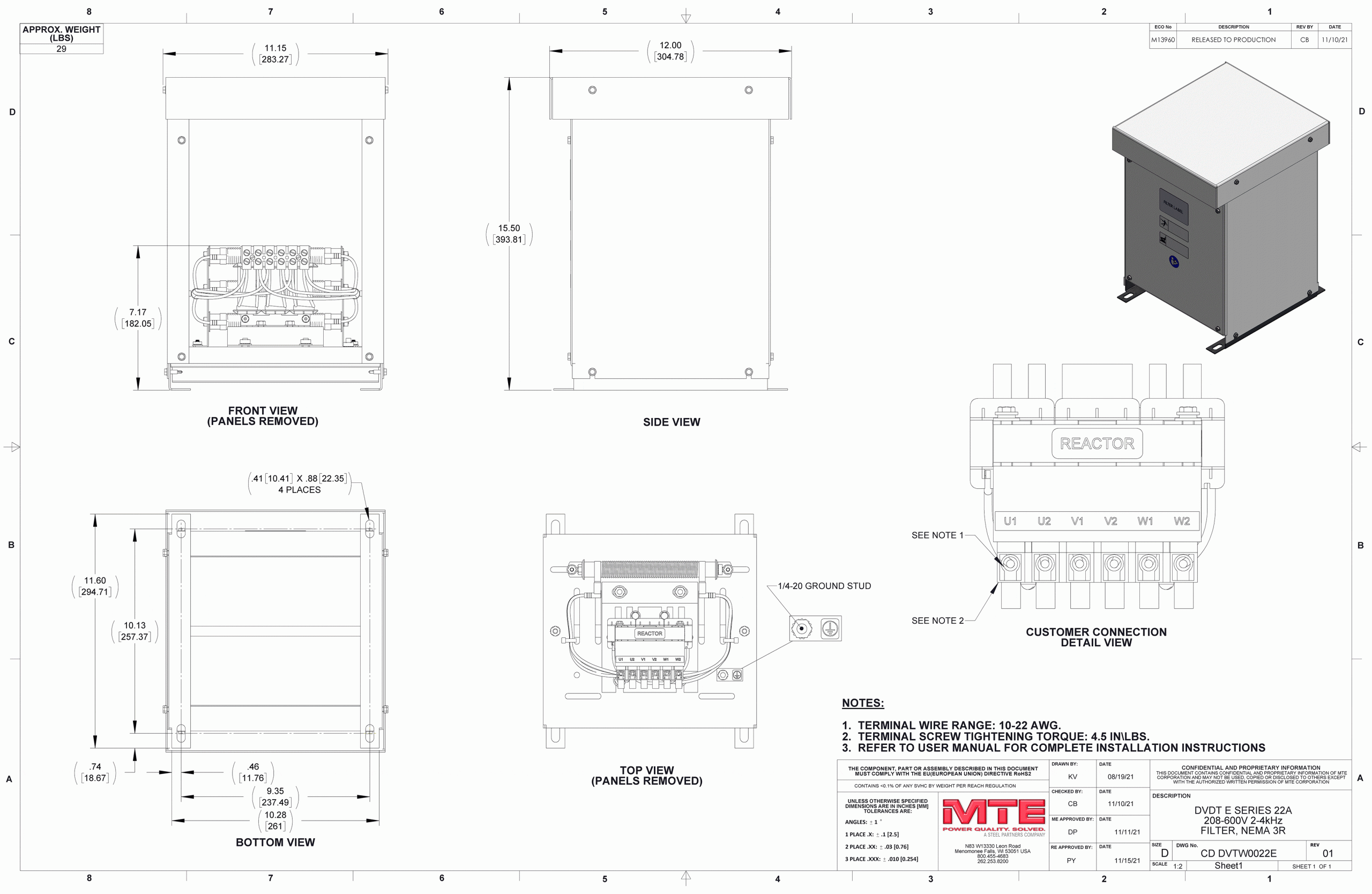

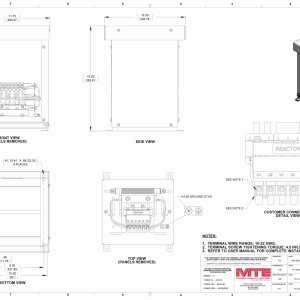

DVTW0022E – MTE | dV E-Series, 208-600V, 22A, 2-4kHz, NEMA 3R

$ 1,254.60

The MTE dV E-Series dV/dt motor protection filters are designed to safeguard motor windings and insulation, reducing downtime and enhancing safety. These filters ensure efficient motor operation, extend cable life, and come with MTE’s Performance Guarantee, providing robust protection in a compact and efficient design.

Available on backorder

SKU: DVTW0022E Category: Tag:
Inquire

Description

The MTE dV E-Series dV/dt motor protection filters are designed to safeguard motor windings and insulation, reducing downtime and enhancing safety. These filters ensure efficient motor operation, extend cable life, and come with MTE’s Performance Guarantee, providing robust protection in a compact and efficient design.

Key Features

  • Triple Protection:
    • Reflective wave mitigation
    • Rise time reduction
    • Peak voltage protection
  • High Efficiency:
    • Up to 60% more efficient, resulting in cost savings and cooler operation.
  • Compact and Lightweight:
    • Up to 73% lighter and 35% smaller footprint for easy setup and handling.
  • Quiet Operation:
    • Operates as quietly as a normal conversation (<65db at 1 meter).
  • Easy Installation:
    • Compatible footprint and mounting with other competitive options.

Specifications

  • Voltage Range: 208 – 600 VAC +/- 10%, 60Hz
  • Input Voltage Waveform: PWM
  • Inverter Switching Frequency: 2kHz – 4kHz (3A – 750A)
  • Inverter Operating Frequency: 0-60Hz without derating
  • Maximum Ambient Temperature:
    • Modular filter: -40°C to +60°C
    • Enclosed filter: -40°C to +50°C
    • Storage: -40°C to +90°C
  • Insulation System: Class N (200°C)
  • Insertion Loss (Voltage): 1.7% at 60 Hz
  • Efficiency: Greater than 99%
  • Current Range: 3A – 750A
  • Available Form Factors: Kit, Open Panel, NEMA 1/2, NEMA 3R
  • Altitude: Operates up to 6,600 feet above sea level without derating
  • Maximum Motor Lead Length: 1,000 feet (VFD rated cable recommended)
  • Relative Humidity: 0% to 99% non-condensing
  • Current Rating:
    • 100% RMS Continuous
    • 150% for 1 minute
    • 200% for 10 seconds (Note: Operating in overload increases proportional voltage drop)
  • Audible Noise: Less than 65db at 1 meter
  • Rise Time: Greater than 0.1 µS
  • Peak Voltage at Motor: 150% of DC bus voltage up to 1,000 feet

Horsepower Ratings

  • HP @ 240 VAC: 7.5 hp
  • HP @ 480 VAC: 15 hp
  • HP @ 575 VAC: 20 hp
  • HP @ 600 VAC: 20 hp

Additional Information

  • Terminals: Wire Leads
  • Mounting: Surface
  • NEMA Rating: NEMA 3R
  • Approvals: CE, cULus
  • Manufacturer Part Number: DVTW0022E
  • Family Series: MTE Line Reactors, dV E Series
