DVTG0200E – MTE | dV E-Series, 208-600V, 200A, 2-4kHz, NEMA 1/2

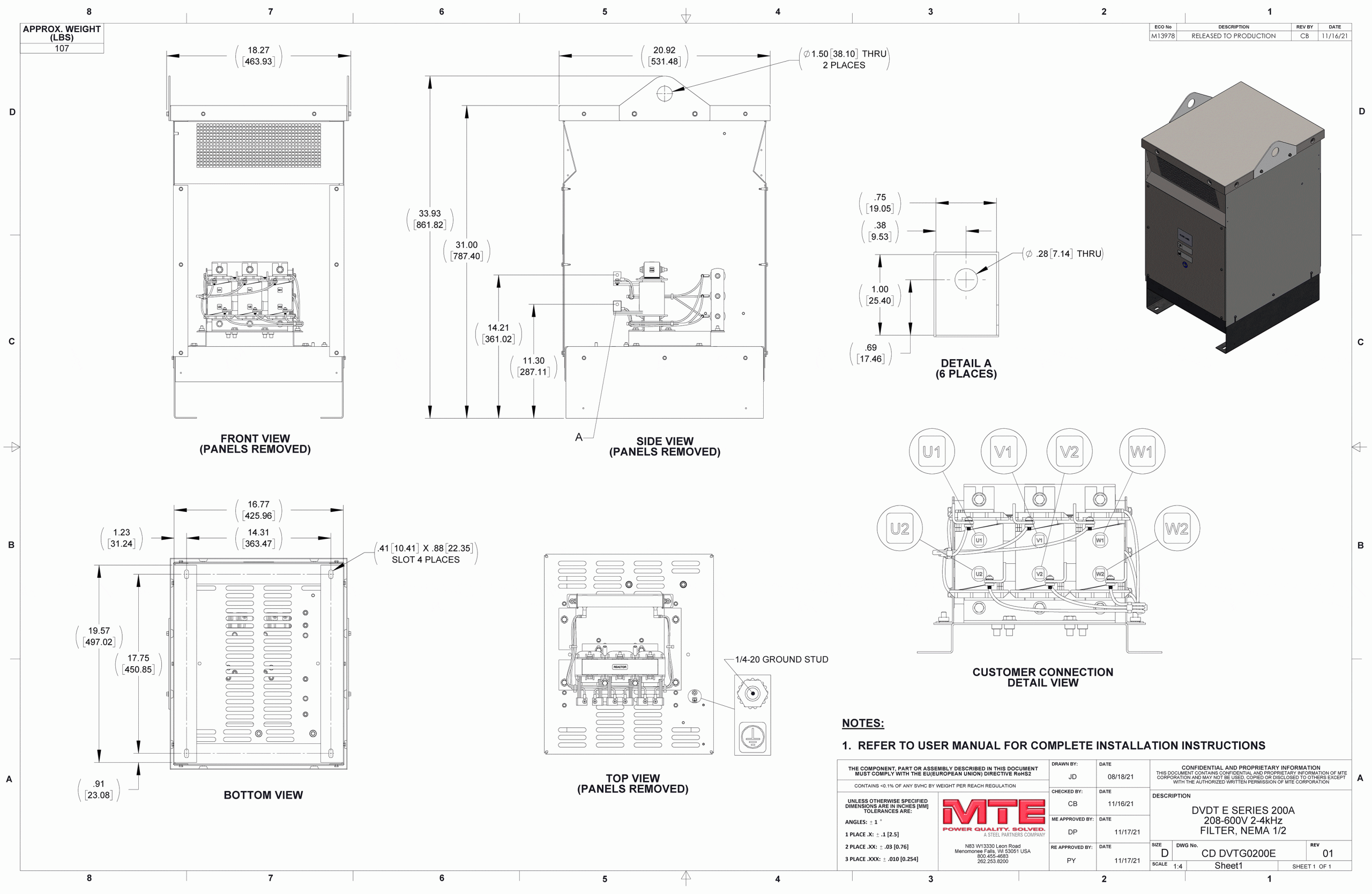

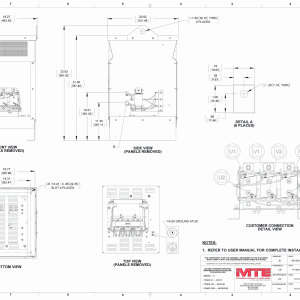

Description

The MTE dV E-Series dV/dt motor protection filters are designed to prevent damage to motor windings and insulation, thereby reducing downtime and maintenance costs. These filters offer superior motor protection, extend cable life, and come with MTE’s Performance Guarantee.

Key Features

• Triple Protection:
  • Reflective wave mitigation
  • Rise time reduction
  • Peak voltage protection
• Efficiency:
  • Up to 60% more efficient than competitors, saving energy and reducing heat.
• Compact Design:
  • 73% lighter and 35% smaller footprint for easier installation and handling.
• Quiet Operation:
  • Operates as quietly as a normal conversation (<65db at 1 meter).
• Ease of Installation:
  • Compatible footprint and mounting with competitive options.

Specifications

• Voltage: 208 – 600 VAC +/- 10%, 60Hz
• Input Voltage Wave Form: PWM
• Inverter Switching Frequency: 2kHz – 4kHz (3A – 750A)
• Inverter Operating Frequency: 0-60Hz without derating
• Maximum Ambient Temperature:
  • Modular filter: -40°C to +60°C
  • Enclosed filter: -40°C to +50°C
  • Storage: -40°C to +90°C
• Insulation System: Class N (200°C)
• Insertion Loss (Voltage): 1.7% at 60 Hz
• Efficiency: Greater than 99%
• Current Range: 3A – 750A
• Available Form Factors: Kit, Open Panel, NEMA 1/2, NEMA 3R
• Altitude: Operational up to 6,600 feet above sea level without derating
• Maximum Motor Lead Length: 1,000 feet (VFD rated cable recommended)
• Relative Humidity: 0% to 99% non-condensing
• Current Rating:
  • 100% RMS Continuous
  • 150% for 1 minute
  • 200% for 10 seconds (Operating in overload increases proportional voltage drop)
• Audible Noise: Less than 65db at 1 meter
• Rise Time: Greater than 0.1 µS
• Peak Voltage @ Motor: 150% of DC bus voltage up to 1,000 feet

Horsepower Ratings

• HP @ 240 VAC: 75 hp
• HP @ 480 VAC: 150 hp
• HP @ 575 VAC: 200 hp
• HP @ 600 VAC: 200 hp

Additional Information

• Terminals: Wire Leads
• Mounting: Surface
• NEMA Rating: NEMA 1, NEMA 2
• Approvals: CE, cULus
• Manufacturer Part Number: DVTG0200E
• Family Series: MTE Line Reactors, dV E Series
