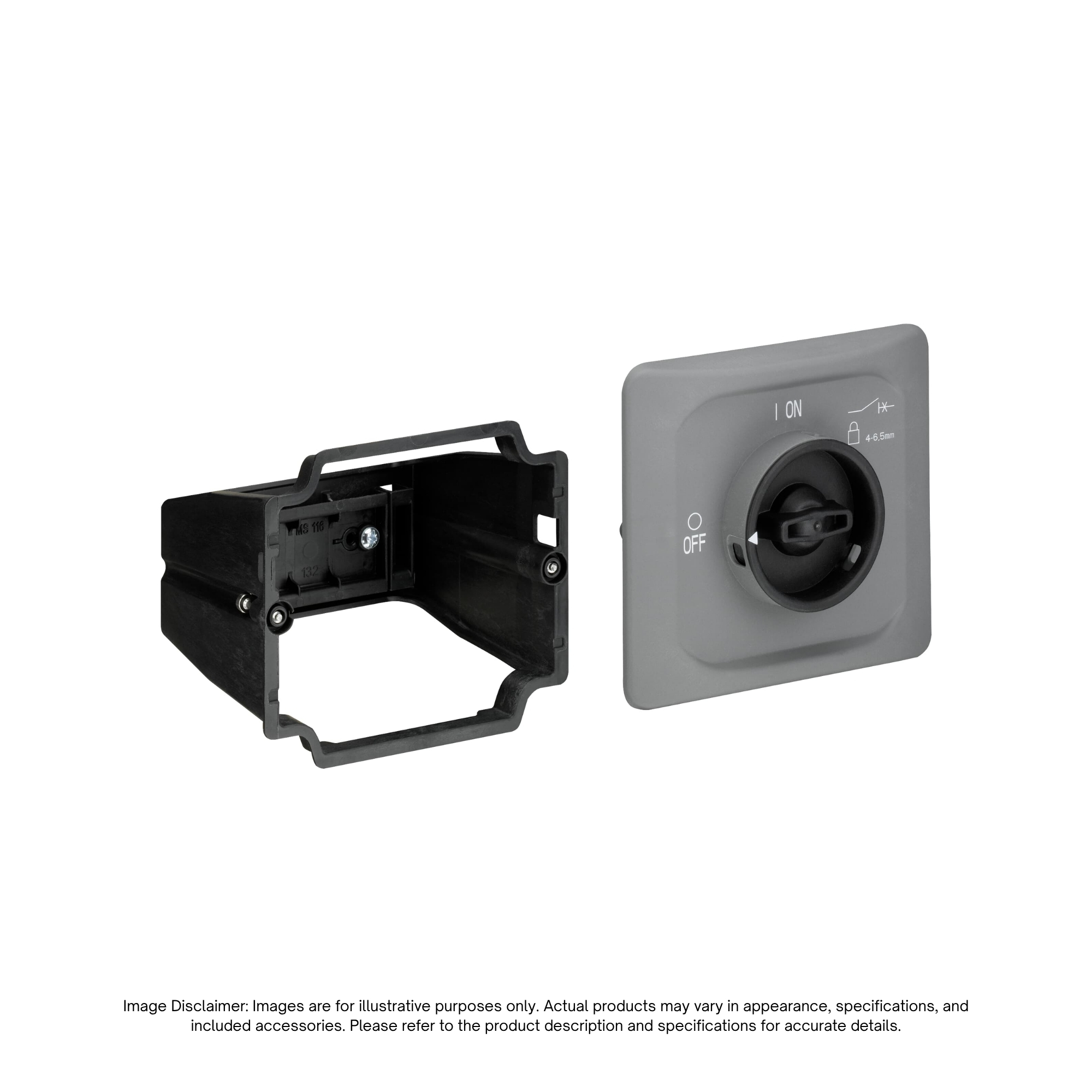

DMS132-G – ABB | “MS116/132 DOOR MT KIT, IP65, GY/BK”

Description

The ABB DMS132-G Door Mounting Kit (1SAM201912R1010) is a specialized panel accessory engineered to enable external door-mounted operation for ABB MS116 and MS132 manual motor starters. By combining a manual motor starter with this door mounting kit, panel builders can set up complete control and protection functions for single-machine installations directly on the enclosure exterior.

Featuring a grey and black IP65-rated handle that is 3-times lockable in the OFF position, the DMS132-G ensures safe, lock-out/tag-out (LOTO) compliant operation and high protection against dust and water ingress. It also allows full compatibility with internally mounted auxiliary contacts, signaling contacts, shunt trips, and undervoltage releases.

Key Features

• Door-Mounted Operator Kit: Enables external ON/OFF control and trip indication for MS116 and MS132 manual motor starters.
• IP65 Ingress Protection: High-level sealing protects internal components against dust and low-pressure water jets, making it ideal for machine cubicles.
• 3-Times Lockable Handle: Grey/black handle can be padlocked up to 3 times in the OFF position for secure lockout/tagout (LOTO) safety compliance.
• Accessory Compatible: Allows full utilization of internal auxiliary contacts, signaling contacts, shunt trips, and undervoltage releases on the motor starter.

Specifications
