CP3-11G-10 – ABB | “COMPACT ILL PB EXT MOM,GREEN,24V”

Description

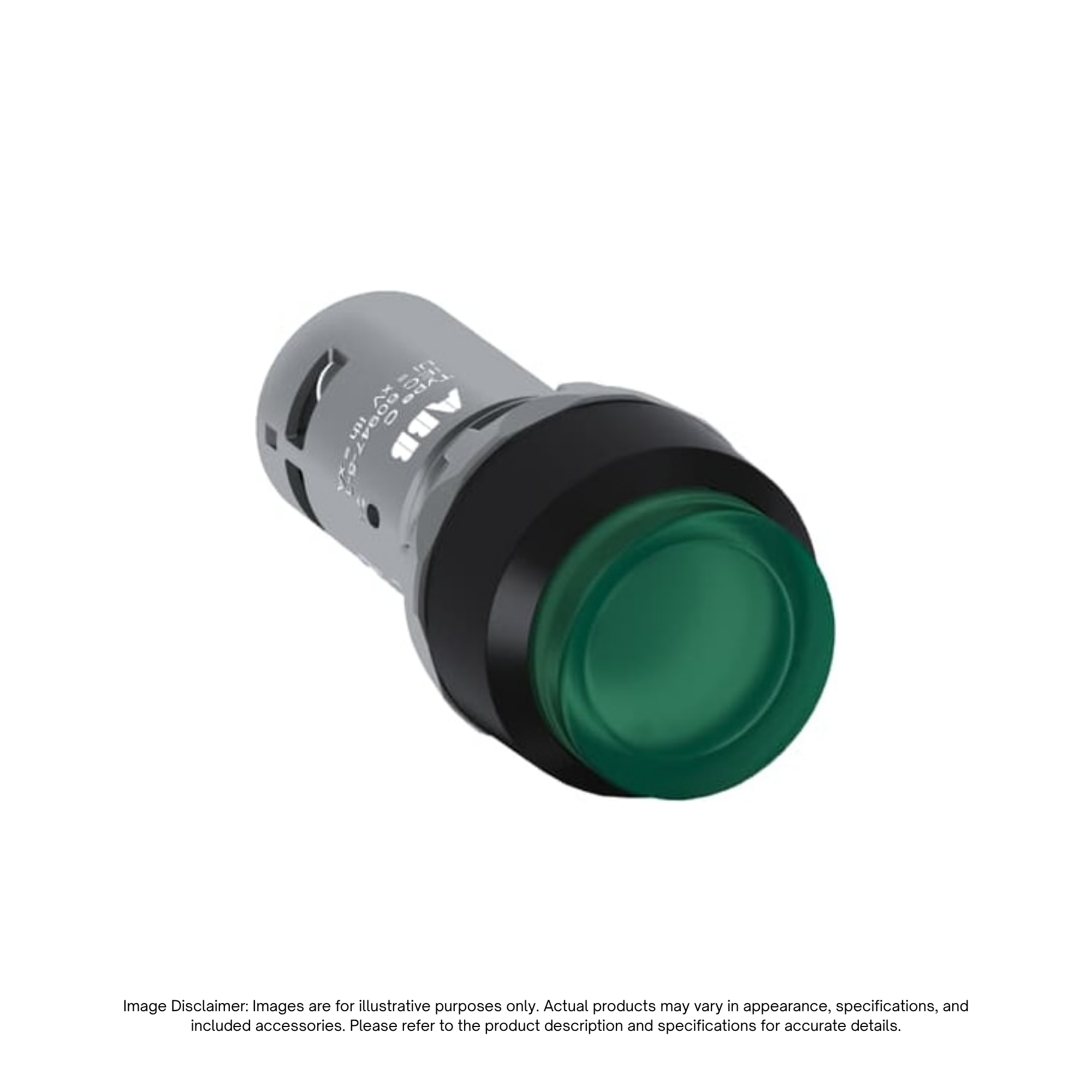

The ABB CP3-11G-10 Pushbutton (1SFA619102R1112) is an all-in-one, illuminated extended pushbutton engineered for efficient and robust panel control. As part of ABB’s Compact range, this switch combines the operator, green illuminated lens, 24 V LED light element, black plastic bezel, contact block, and mounting mechanism into a single integrated unit, significantly reducing installation time, enclosure depth requirements, and assembly costs.

Featuring a green extended actuator with momentary operation, a durable black plastic bezel, and an integrated 1 NO (normally open) contact block, the CP3-11G-10 is powered by a 24 V light source. Built with high dust and water resistance, it provides long-lasting, heavy-duty performance and clear visual indication for demanding industrial control panels and operator interfaces.

Key Features

• Compact All-in-One Design: Integrates operator, green illuminated lens, 24 V light element, black bezel, and 1 NO contact block into a single component for rapid, cost-effective mounting.
• 24 V Green Illumination: Features an integrated 24 V green illumination source for clear, high-visibility status indication.
• Momentary Extended Action: Raised button profile provides tactile feedback and easy activation, returning to the rest position immediately upon release.
• Durable Black Plastic Bezel: Delivers high mechanical durability and a uniform aesthetic for industrial control panels.
• High Ingress Protection: Engineered with exceptional dust and water resistance for harsh environment operations.
• Integrated 1 NO Contact: Pre-wired with 1 normally open contact for control circuits.
