CE3P-10B-11 – ABB | CMPT ESTOP BLK PULL 30MM 1-1

$50.80 CAD

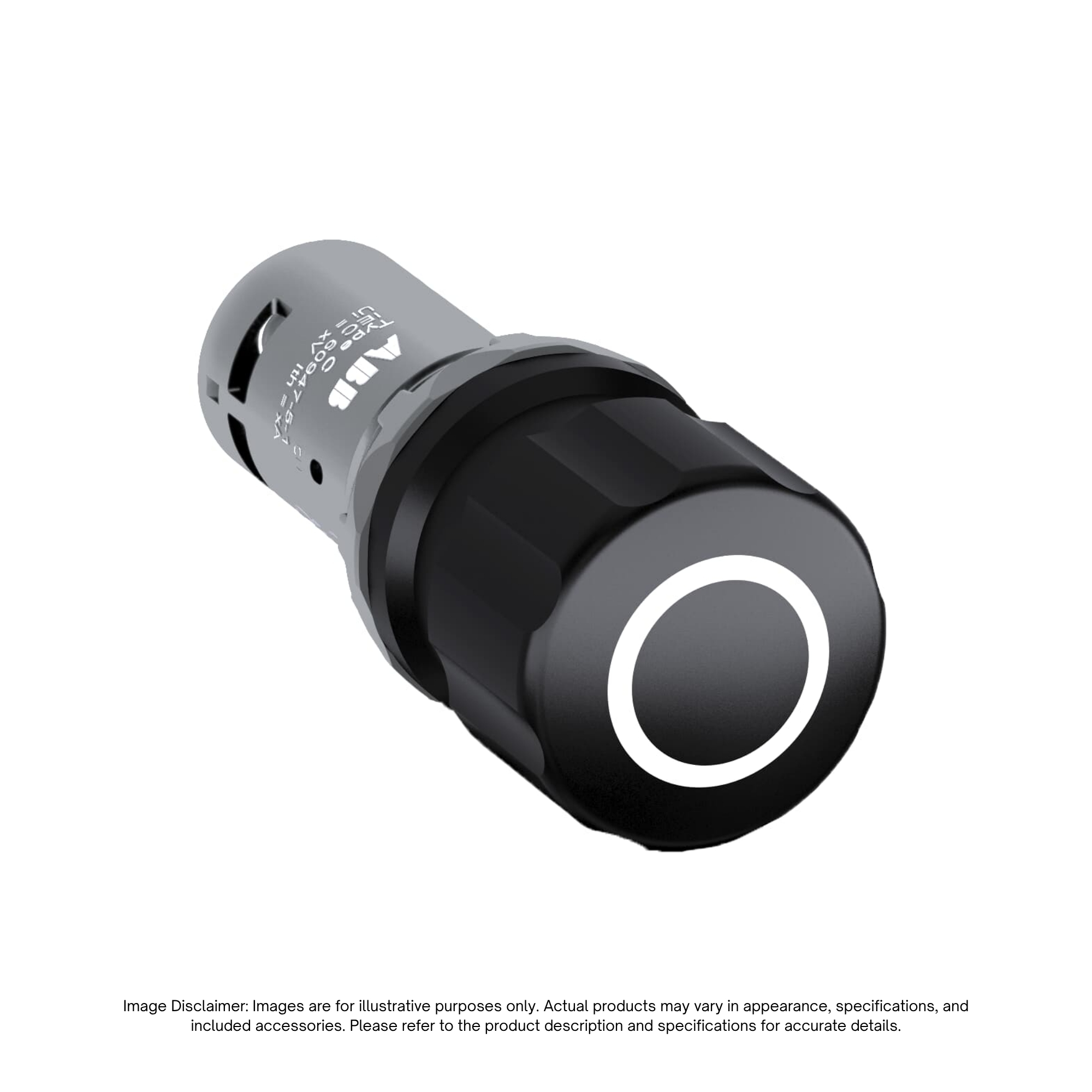

The ABB CE3P-10B-11 (1SFA619501R1076) is a 30mm black mushroom pull-release machine stop switch featuring an all-in-one compact design with 1 NO + 1 NC contacts. Built for quick assembly with high dust and water resistance.

2 in stock

SKU: CE3P-10B-11 Categories: ,

Description

The ABB CE3P-10B-11 Machine Stop (1SFA619501R1076) is an all-in-one, non-illuminated 30mm mushroom machine stop switch engineered for efficient and robust panel control. As part of ABB’s Compact range, this switch combines the operator, contact block, and mounting mechanism into a single integrated unit, significantly reducing installation time, enclosure depth requirements, and assembly costs.

Featuring a 30mm black mushroom actuator with pull-release (maintained) operation and integrated 1 NO + 1 NC contact blocks, the CE3P-10B-11 supports rated operational voltages up to 300 V. Built with high dust and water resistance, it provides long-lasting, heavy-duty performance for demanding industrial control panels and machine control interfaces.

Key Features

  • Compact All-in-One Design: Integrates operator, 30mm mushroom button, and 1 NO + 1 NC contacts into a single component for rapid, cost-effective mounting.
  • Pull-Release Maintained Action: Locks securely into place upon activation and requires a pull action to release for safe reset management.
  • 30mm Black Mushroom Actuator: Provides a distinct, easy-to-actuate surface for quick machine stopping control.
  • High Ingress Protection: Engineered with exceptional dust and water resistance for harsh environment operations.
  • Integrated 1 NO + 1 NC Contacts: Pre-wired with 1 normally open and 1 normally closed contact rated for 24–300 V AC/DC control circuits.

Specifications

Technical Specification Detail
Product Model CE3P-10B-11
Product ID (SKU) 1SFA619501R1076
Brand / Manufacturer ABB
Product Range Compact Range
Product Type Machine Stop Switch
Actuator Type 30mm Mushroom (Black)
Function / Release Type Pull Release (Maintained)
Illumination Non-Illuminated
Contact Configuration 1 NO + 1 NC
Voltage Rating 24–300 V AC/DC
EAN 7320500355473
Weight 0.071 lbs
Dimensions 2.000 × 2.000 × 2.000 in
