Description

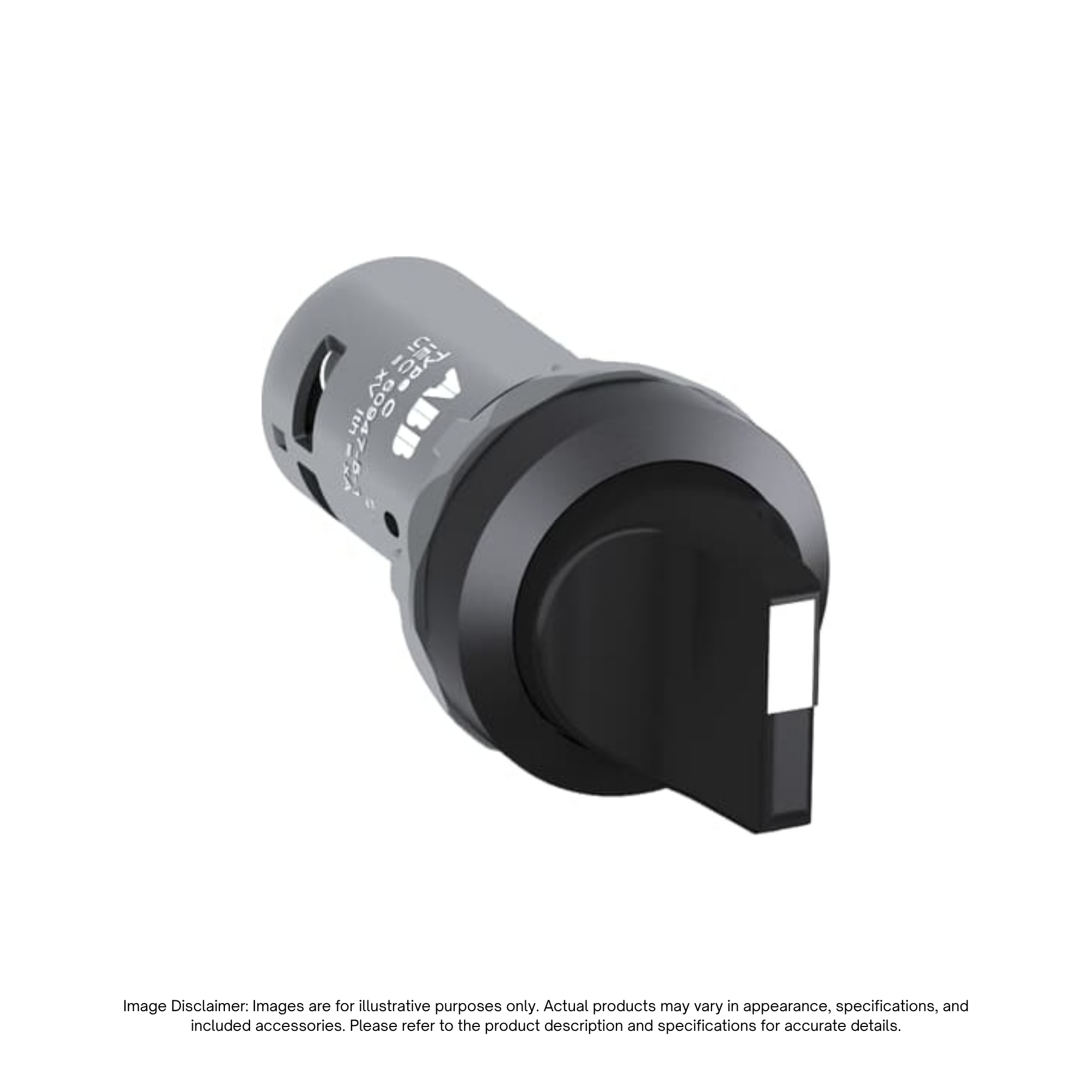

The ABB C3SS1-10B-20 Selector Switch (1SFA619210R1026) is an all-in-one, non-illuminated 3-position selector switch engineered for efficient and robust panel control. As part of ABB’s Compact range, this switch combines the operator, black plastic bezel, contact block, and mounting mechanism into a single integrated unit, significantly reducing installation time, enclosure depth requirements, and assembly costs.
Featuring a black short handle with maintained (3-position) operation, a durable black plastic bezel, and integrated 2 NO (normally open) contact blocks, the C3SS1-10B-20 supports rated operational voltages up to 300 V. Built with high dust and water resistance, it provides long-lasting, heavy-duty performance for demanding industrial control panels and operator interfaces.
Key Features
- Compact All-in-One Design: Integrates operator, black bezel, and 2 NO contact blocks into a single component for rapid, cost-effective mounting.
- 3-Position Maintained Action: Holds securely in position after selection for reliable multi-state circuit management.
- Durable Black Plastic Bezel: Delivers high mechanical durability and a uniform aesthetic for industrial control panels.
- High Ingress Protection: Engineered with exceptional dust and water resistance for harsh environment operations.
- Integrated 2 NO Contacts: Pre-wired with 2 normally open contacts rated for 24–300 V AC/DC control circuits.
Specifications
| Technical Specification | Detail |
|---|---|
| Product Model | C3SS1-10B-20 |
| Product ID (SKU) | 1SFA619210R1026 |
| Brand / Manufacturer | ABB |
| Product Range | Compact Range |
| Product Type | 3-Position Selector Switch |
| Actuator / Handle Type | Short Handle (Black) |
| Function / Position | 3-Position Maintained |
| Bezel Material | Black Plastic |
| Illumination | Non-Illuminated |
| Contact Configuration | 2 NO (0 NC) |
| Voltage Rating | 24–300 V AC/DC |
| EAN | 7320500555330 |
