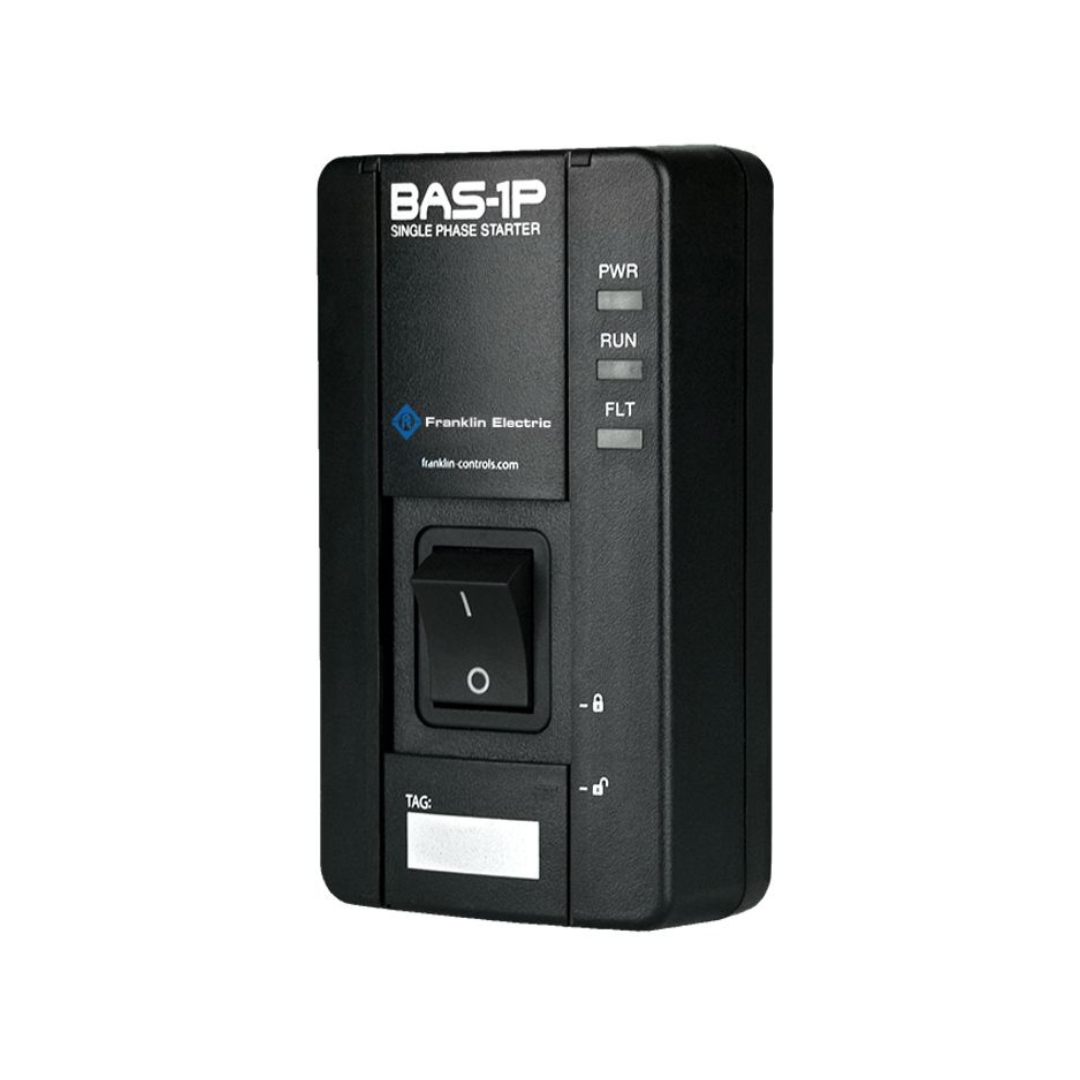

BAS-1P - Franklin Control Systems | Universal Building Automation Starter

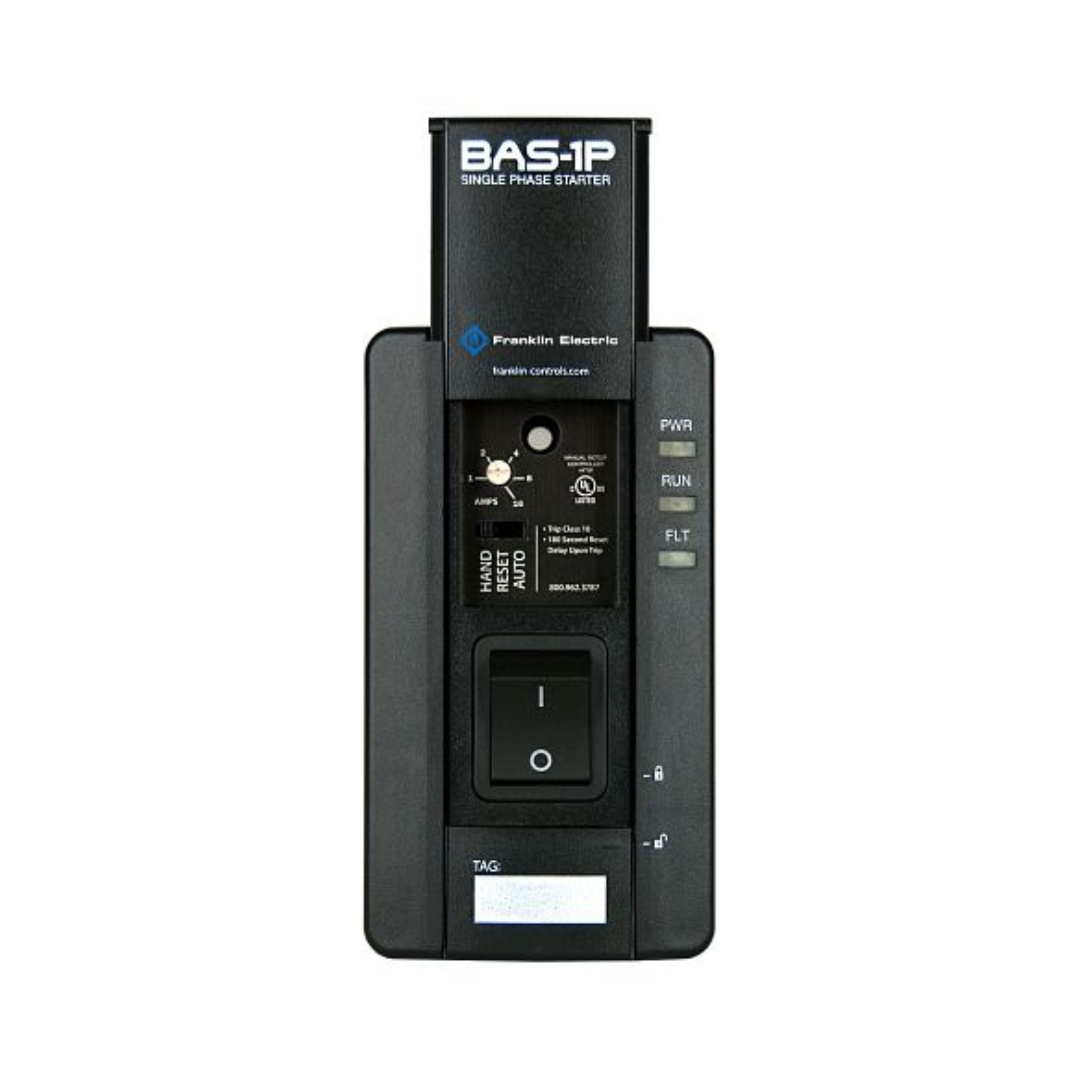

BAS-1P - Franklin Control Systems | Universal Building Automation Starter - Image 2

BAS-1P – Franklin Control Systems | Universal Building Automation Starter

$ 350.00

The BAS‑1P Single Phase Building Automation Starter is a compact, all‑in‑one motor protection and control solution designed for modern building automation projects. Housed in a standard single‑gang junction box footprint, it delivers reliable single‑phase motor overload protection (1–16 A, Class 10) alongside smart integration features like run‑status verification and automation‑ready inputs. With its concealed Hand/Auto switch, lockable on/off disconnect, and dedicated override mode for smoke purge sequences, the BAS‑1P ensures both safety compliance and operational flexibility—making it the ideal starter for fan, pump, and HVAC applications in commercial and institutional facilities.

This starter is a great compliment to VFD integrators, and dovetails well with combination starters (sourced from Alexis Engineering)

5 in stock (can be backordered)

SKU: BAS-1P Category:

Description

The BAS‑1P Single Phase Building Automation Starter is a compact, all‑in‑one motor protection and control solution designed for modern building automation projects. Housed in a standard single‑gang junction box footprint, it delivers reliable single‑phase motor overload protection (1–16 A, Class 10) alongside smart integration features like run‑status verification and automation‑ready inputs. With its concealed Hand/Auto switch, lockable on/off disconnect, and dedicated override mode for smoke purge sequences, the BAS‑1P ensures both safety compliance and operational flexibility—making it the ideal starter for fan, pump, and HVAC applications in commercial and institutional facilities. This starter is a great compliment to VFD integrators, and dovetails well with combination starters (sourced from Alexis Engineering)

Key Features & Benefits

  • Adjustable Class 10 Electronic Overload (1–16 A)
    Prevents motor damage and eliminates confusion over heater sizing.

  • Run Status Verification
    Integrated current sensing with LED indicators for power, run, and fault to pinpoint malfunctions instantly.

  • Concealed Hand/Auto Modes & Lockable Disconnect
    Meets NEC service disconnect requirements; tamper‑resistant and motor‑rated for safety compliance.

  • Voltage & Dry Contact Auto‑Run Inputs
    Directly interface with building automation systems—no interposing relays required, reducing installation time and cost.

  • System Override Mode (Smoke Purge/Fireman’s/Occupancy)
    Ensures code‑compliant smoke extraction or emergency fan operation via a dedicated dry‑contact input.

  • Single Gang Box Installation
    Surface or flush mount capable, simplifying retrofit or new‑build installations.

  • High‑Reliability Components
    Motor‑rated switch and control relay with solid‑state overload—no thermal elements to fail.

  • Five‑Year Warranty & UL 508 Listed
    Backed by Franklin Control Systems’ industry‑leading warranty and safety certification.

Specifications

Parameter Details
Motor Protection Electronic overload, Class 10 (adjustable 1–16 A)
Run‑Status Verification Integrated current sensing; LEDs for Power, Run, Fault
Control Inputs Voltage & dry contacts for Auto‑Run command
Overrides Fireman’s/Smoke purge (system override via dry contact)
Disconnect Switch Motor‑rated On/Off with concealed Hand/Auto modes; lockable
Mounting Standard single‑gang junction box (surface or flush)
Standards & Listings UL 508 Listed
Warranty 5 years
Environmental –20 °C to +60 °C operating ambient temperature
Dimensions 4.5 in (H) × 2.8 in (W) × 2.2 in (D)
Weight 0.8 lb (approx.)
Weight 1 lbs
Dimensions 5 × 3 × 3 in
