AF65-30-00-11 – ABB | “CONTACTOR, 3 POLE, 60HP 600VAC”

Description

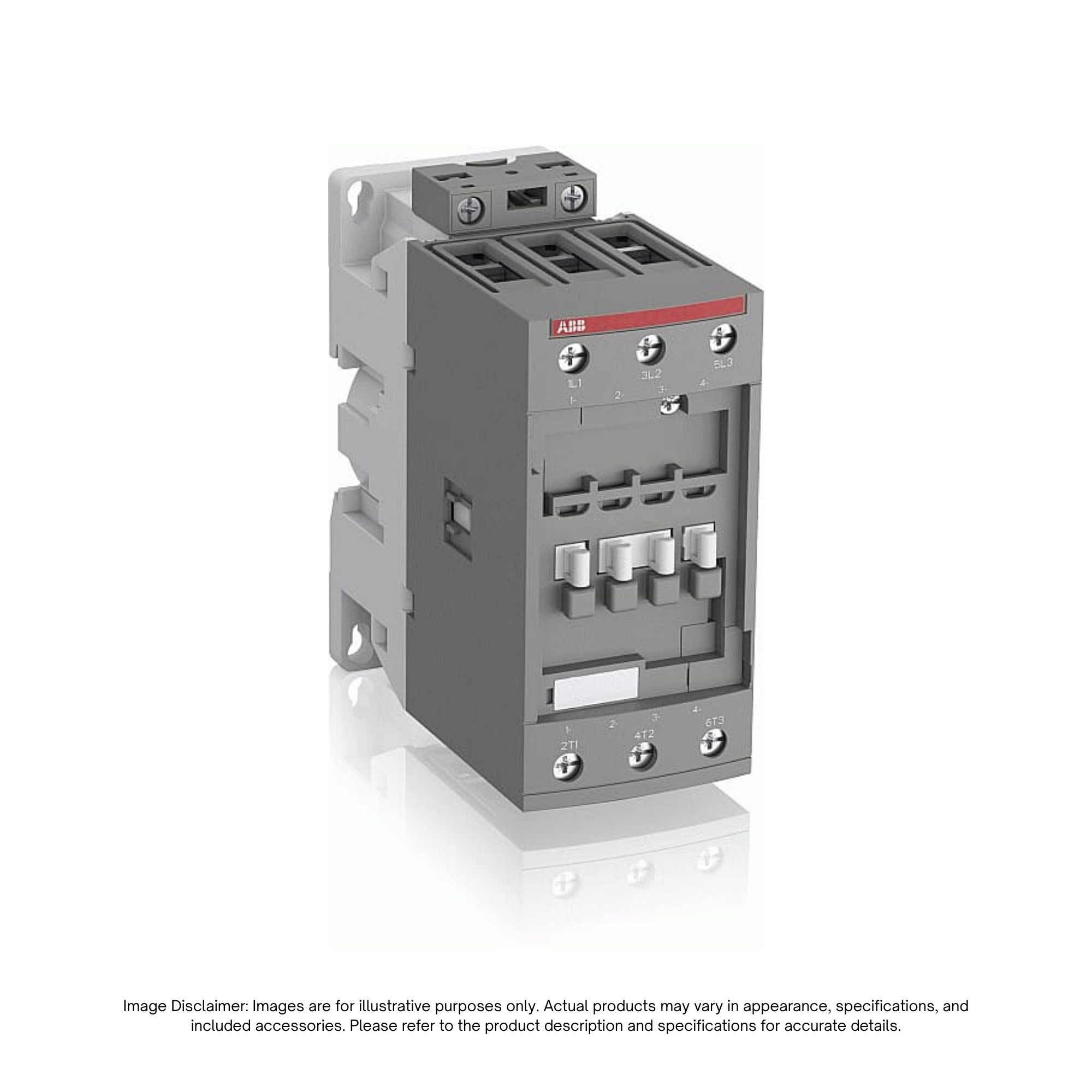

The ABB AF65-30-00-11 Contactor (1SBL387001R1100) is a heavy-duty, 3-pole block-type industrial contactor featuring advanced electronically controlled AF coil technology. Engineered for low-voltage coil applications, its electronic coil manages wide control voltage variations across 24–60 V AC (50/60 Hz) and 20–60 V DC, drastically reducing panel energy consumption and maintaining distinct, vibration-free operation in fluctuating power networks.

Capable of controlling 3-phase motors up to 30 kW / 400 V AC (AC-3) or 50 hp / 480 V UL, and switching power circuits up to 105 A (AC-1) / 90 A UL general use, the AF65-30-00-11 features secure screw terminal connections. Built-in surge suppression eliminates the need for external suppressor blocks, providing a compact, modular unit that expands easily with add-on auxiliary contact blocks and accessories.

Key Features

• Advanced AF Coil Technology: Wide control voltage range (24–60 V 50/60 Hz / 20–60 V DC) handles large voltage dips and lowers coil power consumption.
• High Motor & Power Ratings: Controls 3-phase AC-3 motors up to 30 kW (400 V) / 50 hp (480 V UL) and switches general power loads up to 105 A AC-1.
• Integrated Surge Suppression: Built-in surge protection safeguards control circuits without requiring external suppressor blocks.
• Screw Terminal Connections: Heavy-duty screw terminals provide secure, vibration-resistant wiring for power circuits.
• Block-Type Modular Architecture: Compact chassis accepts front- and side-mounted add-on auxiliary contact blocks and system accessories.

Specifications
