AF40-30-00-13 – ABB | “CTR,3P,42A,100-250VAC/DC”

Description

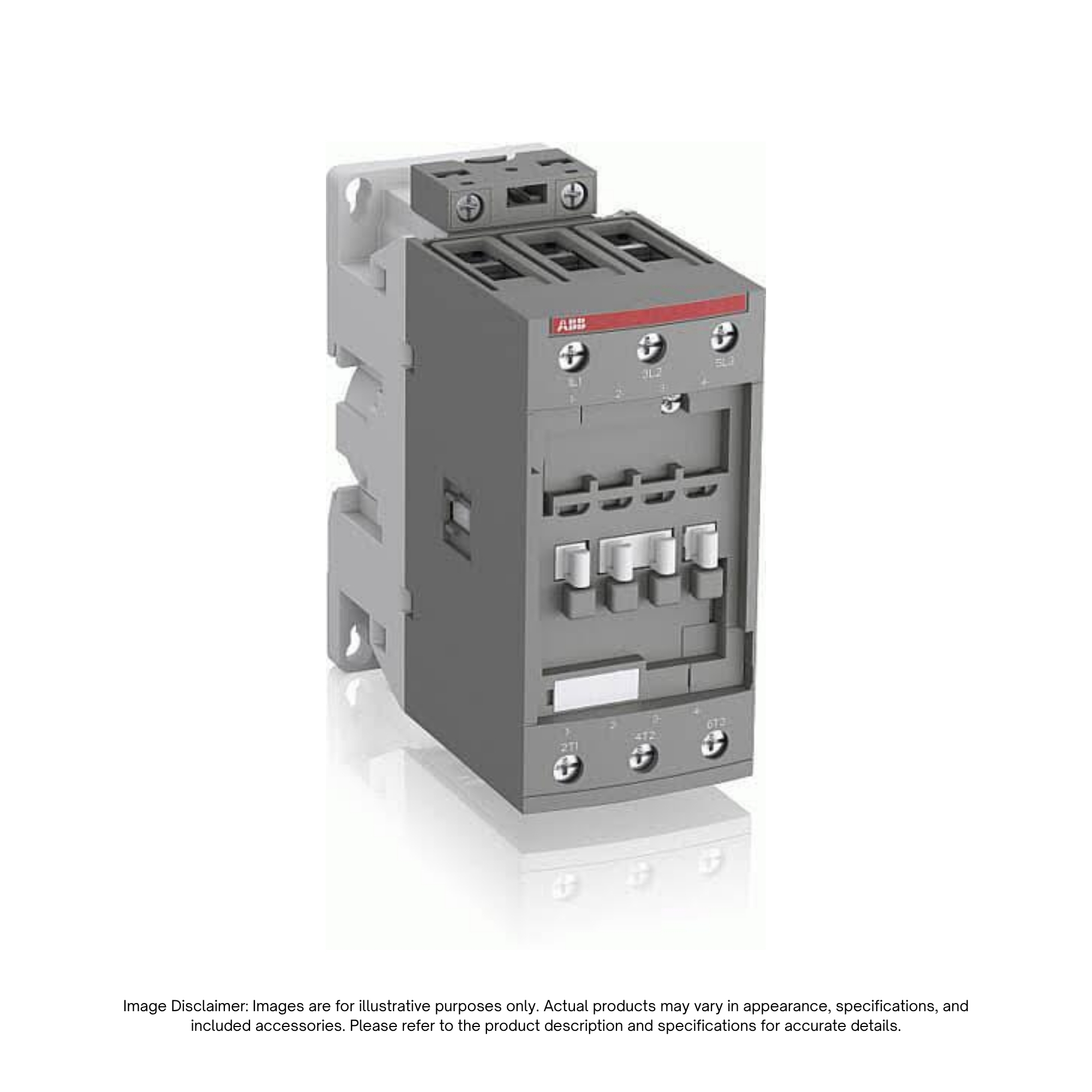

The ABB AF40-30-00-13 Contactor (1SBL347001R1300) is a heavy-duty, 3-pole block-type industrial contactor equipped with advanced electronically controlled AF coil technology. Engineered for wide control voltage flexibility, its electronic coil effortlessly handles large control voltage variations across 100–250 V AC (50/60 Hz) and 100–250 V DC, minimizing panel energy consumption and ensuring stable operation in unstable power networks.

Rated for controlling 3-phase motors up to 18.5 kW / 400 V AC (AC-3) or 30 hp / 480 V UL, and switching power circuits up to 70 A (AC-1) / 60 A UL general use, the AF40-30-00-13 features secure screw terminal connections. Built-in surge suppression eliminates the need for external suppressor blocks, providing a compact, modular unit that expands easily with add-on auxiliary contact blocks and accessories.

Key Features

• Wide-Voltage AF Coil Technology: Universal coil voltage range (100–250 V 50/60 Hz and DC) absorbs voltage fluctuations and reduces power consumption.
• High Motor & Power Capacity: Controls 3-phase AC-3 motors up to 18.5 kW (400 V) / 30 hp (480 V UL) and switches general loads up to 70 A AC-1.
• Integrated Surge Suppression: Built-in surge protection safeguards control circuits without requiring external suppressor modules.
• Screw Terminal Connections: Provides dependable, vibration-resistant electrical wiring for heavy-duty power circuits.
• Modular Expansion: Compact block-type chassis easily accepts front- and side-mounted auxiliary contact blocks and add-on accessories.

Specifications
