AF30-30-00-11 – ABB | “AF30 3P CONTR, 24-60VAC, 20-60VDC”

Description

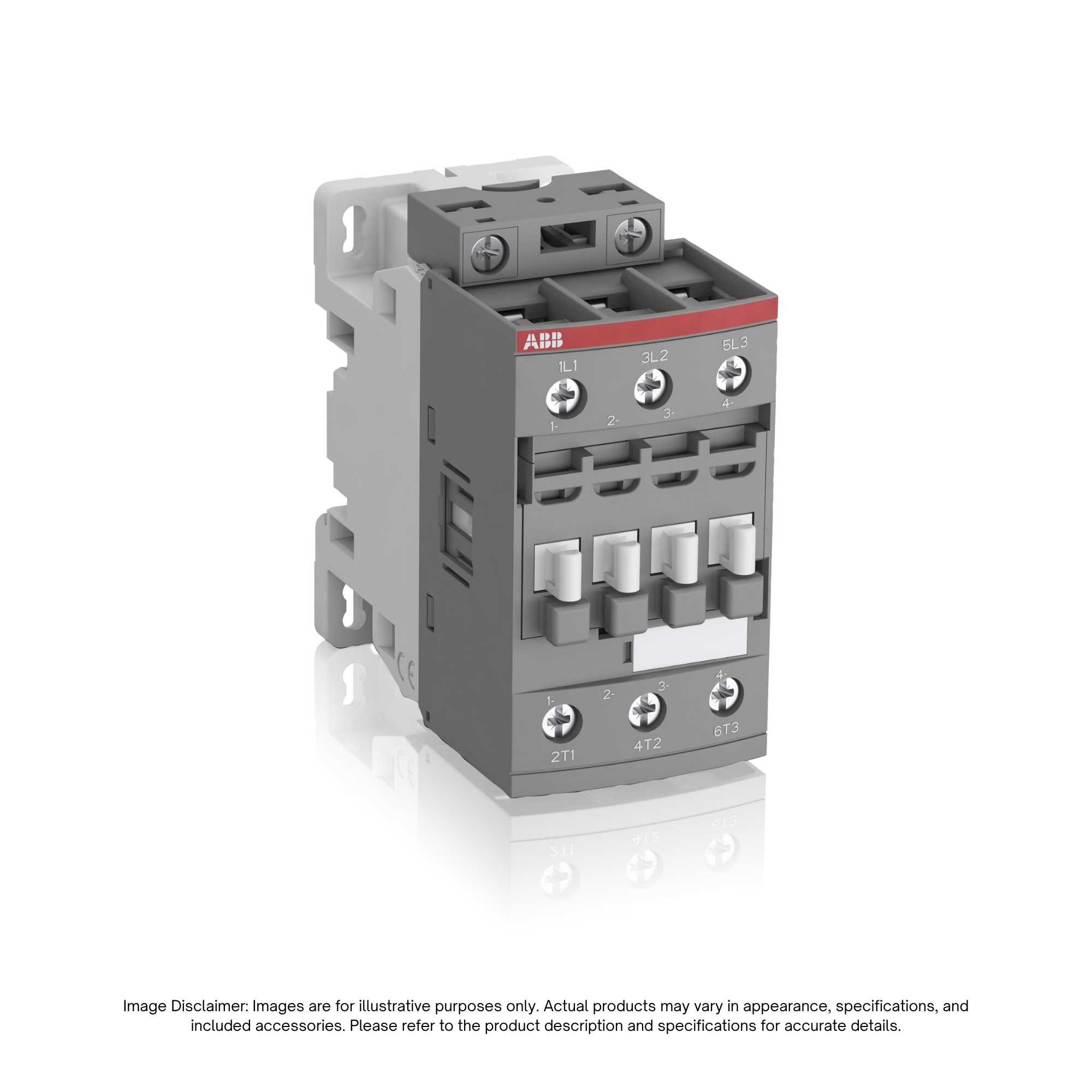

The ABB AF30-30-00-11 Contactor (1SBL277001R1100) is a high-performance 3-pole block-type industrial contactor equipped with advanced electronically controlled AF coil technology. Engineered to handle large control voltage variations across 24–60 V AC (50/60 Hz) and 20–60 V DC, its electronic coil reduces panel energy consumption and ensures distinct, chatter-free operation even in unstable power networks.

Capable of controlling 3-phase motors up to 15 kW / 400 V AC (AC-3) or 20 hp / 480 V UL, and switching resistive power loads up to 50 A (AC-1 / UL general use), the AF30-30-00-11 features secure screw terminal connections. With built-in surge suppression, it eliminates the need for external suppressor blocks while offering simple expansion using add-on auxiliary contact blocks and modular ABB accessories.

Key Features

• Advanced AF Coil Technology: Wide control voltage range (24–60 V 50/60 Hz / 20–60 V DC) manages network fluctuations and lowers coil power consumption.
• High Motor & Power Rating: Controls 3-phase AC-3 motors up to 15 kW (400 V) / 20 hp (480 V UL) and switches general loads up to 50 A.
• Integrated Surge Suppression: Built-in surge protection safeguards control circuits without requiring external suppressor blocks.
• Screw Terminal Connections: Provides dependable, vibration-resistant electrical wiring for power circuits.
• Modular Expansion: Compact block-type chassis easily accepts front- and side-mounted auxiliary contact blocks and add-on accessories.

Specifications
